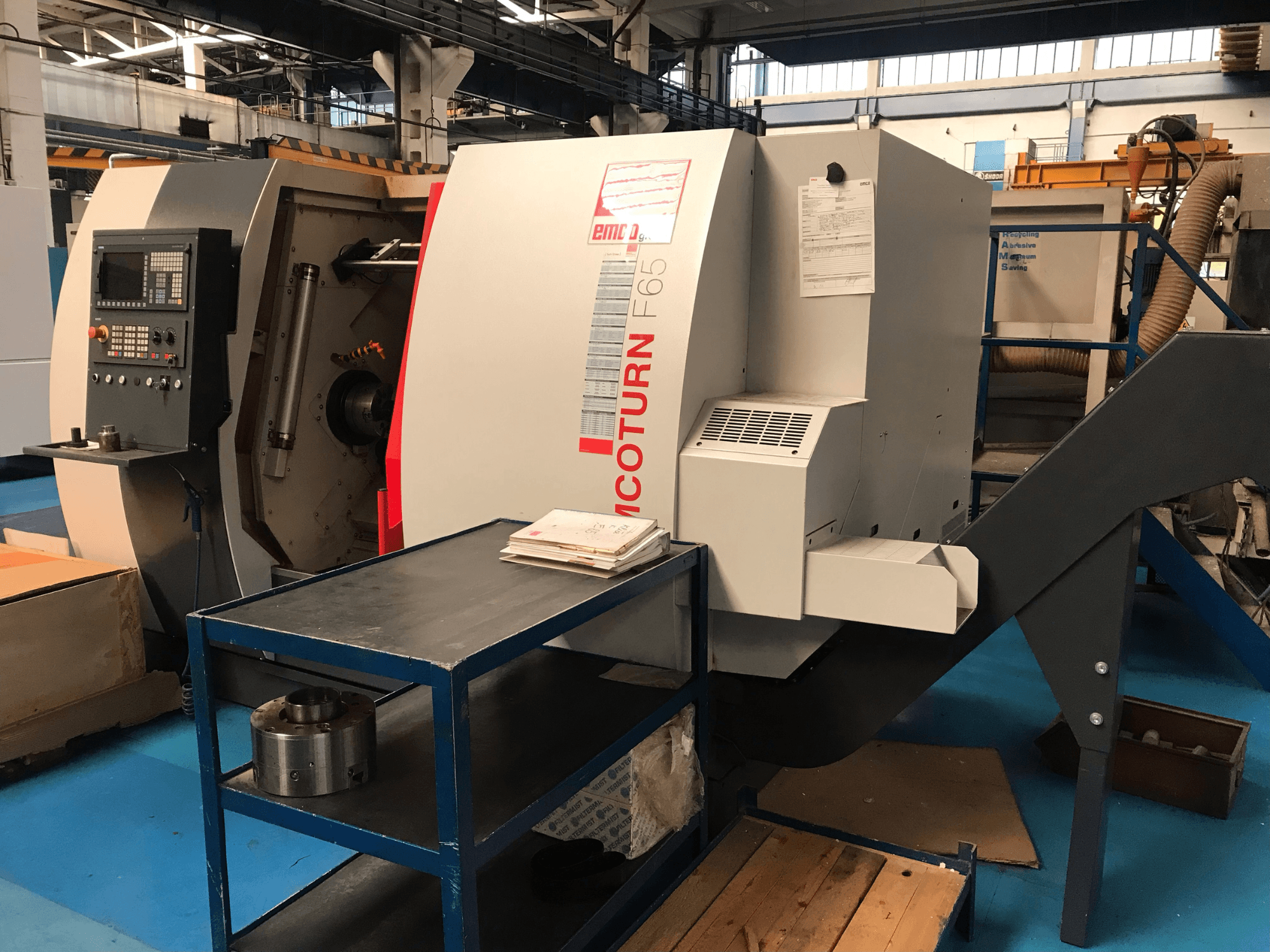

EMCO - Emcoturn 65CZ-TUR-EMC-2019-00001

Number of spindles: 2

Spindle motor power: Main spindle: 17 / 22 kW; Counter spindle: 11 / 16.5 kW

Spindle speed range: 60 – 5000 rpm

Spindle bore: Ø73 mm

Number of tool slots: 12

Rotating tools: yes

Lubrication tank: 10 l

Pump drive power: 0.57 / 2.2 kW

Air pressure: 6 bar

Cooling pressure: 3.5 bar (optional 14 bar)

Air supply: 5 l/min

Swing over bed: Ø610 mm

Swing over cross slide: Ø360 mm

Distance between centers: 682 mm

Distance between spindle noses: 840 mm

Max. machining diameter: Ø500 mm

Max. machining length: 520 mm

Max. bar capacity: Ø65 mm

Main spindle spindle nose: A2-6

Main spindle bearing Ø: 105 mm

Main spindle torque (40% DC): 305 Nm

Max. chuck size: Ø250 mm

Counter spindle torque (40% DC): 80 / 125 Nm

Counter spindle spindle nose: A2-6

Counter spindle max. chuck: Ø200 mm

C-axis resolution: 0.001°

Turret type: VDI30

Turret max. speed: 5000 rpm

Turret max. power: 6.7 kW

Turret max. torque: 25 Nm

Turret indexing time: 0.2 s

Rotary tools: VDI30

Rotary tools speed: 0 – 5000 rpm

Rotary tools torque: 25 Nm

Rotary tools power: 6.7 kW

Coolant system tank capacity: 230 l

Coolant system flow rate: 15 / 65 l/min

Hydraulic unit max pressure: 50 bar
