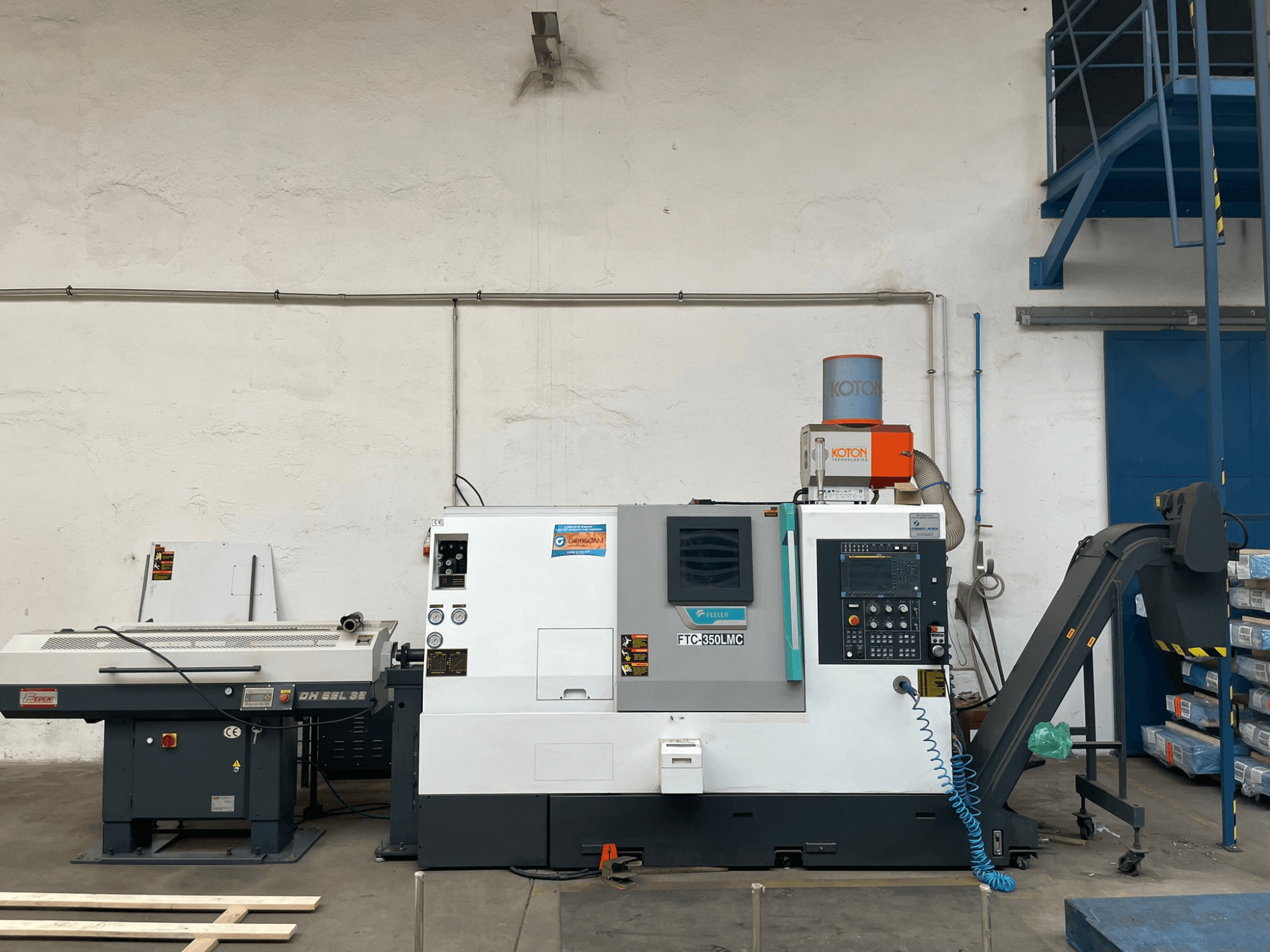

Horizontal turning machine manufactured in 2022. This Feeler FTC 350 LMC features a maximum turning diameter of 235 mm and a turning length of 600 mm. It includes a rapid traverse of 30 m/min in both X and Z axes, along with a spindle speed of 4,500 rpm. If you are looking to get high-quality turning capabilities, consider the Feeler FTC 350 LMC machine we have for sale. Contact us for further details.
Overview
- brand: Feeler
- year: 2022
- MODEL: FTC 350 LMC
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Feeler FTC 350 LMC
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 4500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 190 mm
- Z-axis Travel: 640 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 4500 RPM
Additional Information
Maximum turning diameter: 235 mm
Maximum turning length: 600 mm
Rapid traverse (X/Z): 30/30 m/min
Chuck diameter: 210 mm
Spindle bore: 52 mm (optional 66 mm)
Number of tools in the head: 12
Spindle motor power (continuous / 30 minutes): 7.5/15 kW
Live tooling spindle power (cont/30min): 2.2/3.7 kW
Tailstock travel: 610 mm
Quill diameter: 70 mm
Condition: Machine like new; only worked 6 months in 1 shift operation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
