➤ Used Optimum OPTIturn S 600 For Sale | gindumac.com

Show in original language

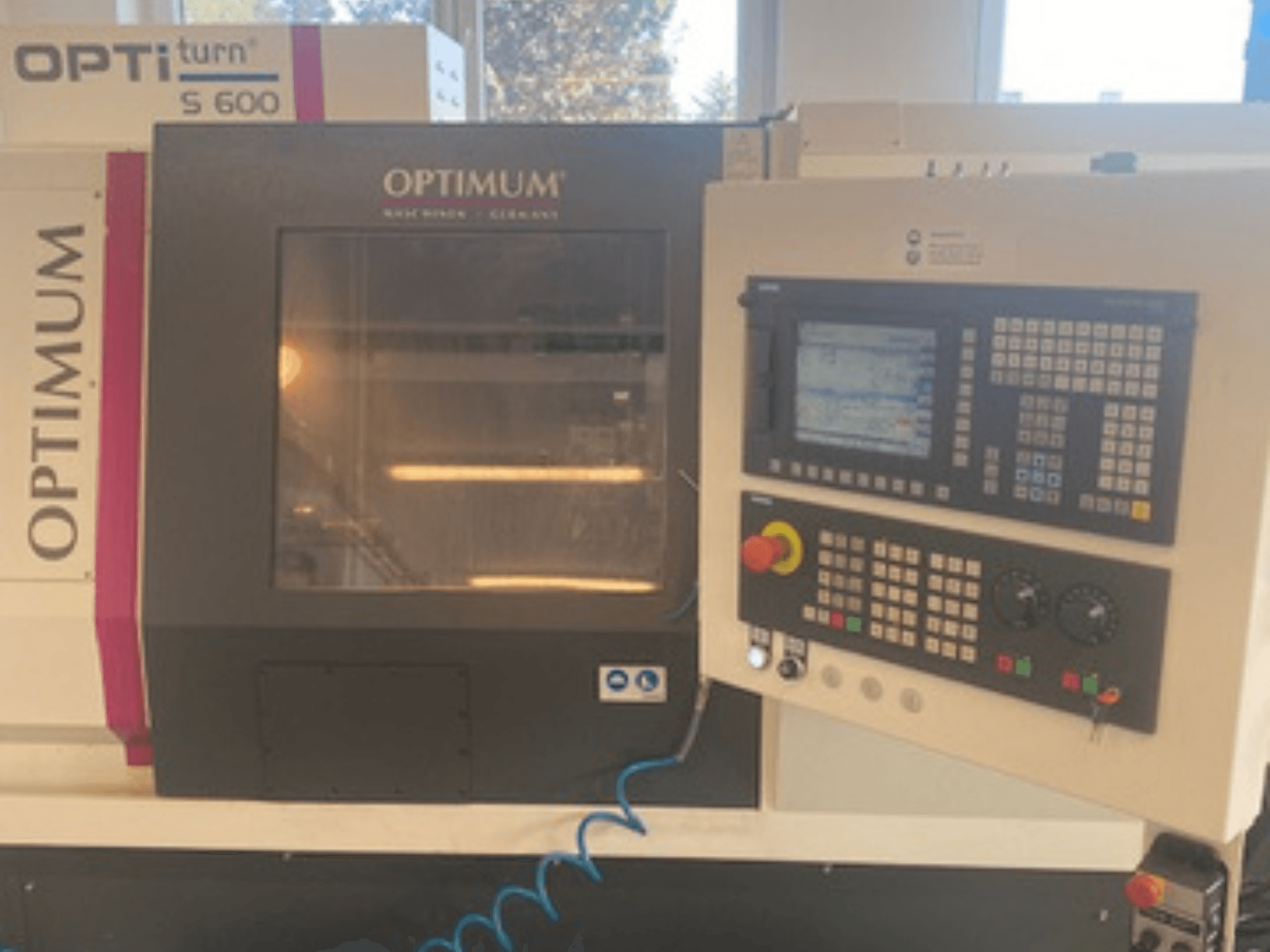

Horizontal turning machine manufactured in 2015. This Optimum OPTIturn S 600 features a turning diameter of 320 mm and a turning length of 550 mm. It includes a hydraulic turret with 12 tool slots and a spindle speed range of 30 – 4000 min¯¹. If you are looking to get high-quality turning capabilities, consider the Optimum OPTIturn S 600 machine we have for sale. Contact us for further details.

Overview

brand: Optimum
year: 2015
MODEL: OPTIturn S 600
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Optimum OPTIturn S 600

Control Unit

Control Brand: SIEMENS

Dimensions

Machine Height: 2000 mm
Machine Length: 4050 mm
Machine Weight: 3200 kg
Machine Width: 1870 mm

Movement

Number of Axes: 2
X-axis Travel: 240 mm
Z-axis Travel: 550 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 4000 RPM
Tool Stations: 12

Additional Information

Turning diameter: 320 mm
Turning length: 550 mm
Swing diameter above machine bed: 550 mm
Swing diameter above cross-slide: 370 mm
Main spindle bore: 76 mm
Spindle bore with hydraulic chuck: 200 mm
Spindle taper: A2-6
Drive motor output: S1 (continuous) 11 kW; S6-30% 14.3 kW
Turret type: Hydraulic VDI 30
Number of tool slots: 12
Rapids movement X/Y-axis: 30/36 m/min
Tailstock chuck: MT4
Quill stroke: 80 mm
Quill diameter: 75 mm
Total rated value: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
