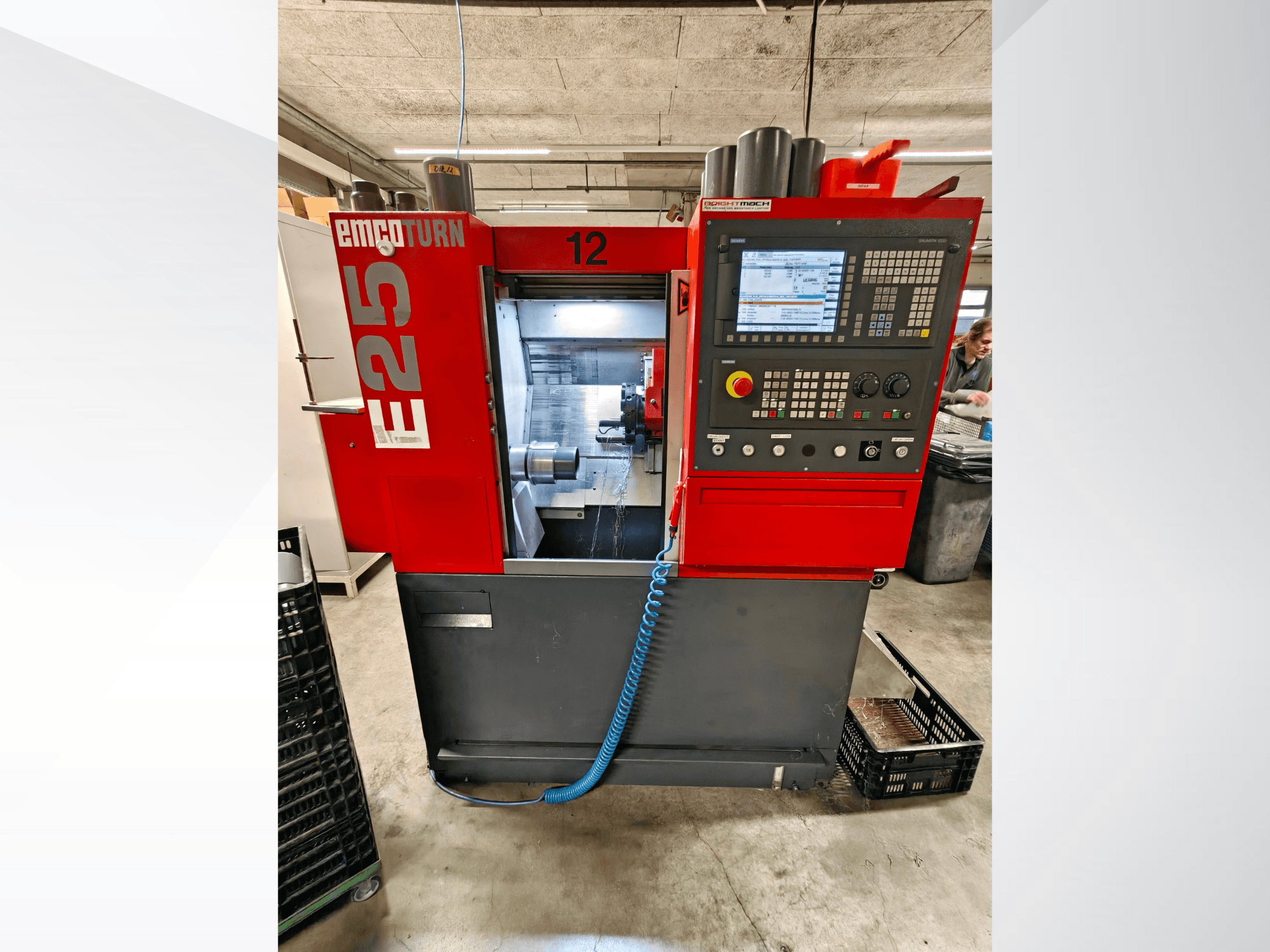

Horizontal turning machine manufactured in 2014. This EMCO E25 features a maximum turning diameter of 85 mm and a maximum turning length of 225 mm. It includes a VDI 16 disk turret with 12 tool stations and a rapid traverse speed of 15 m/min in the X-axis. If you are looking to get high-quality turning capabilities, consider the EMCO E25 machine we have for sale. Contact us for further details.

Overview

  • brand: EMCO
  • year: 2014
  • MODEL: E25
  • production hours: 3955
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • Available from: 31/10/2026
  • control unit brand: SIEMENS

Technical Information - EMCO E25

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 828D

Dimensions

  • Machine Length: 1270 mm
  • Machine Weight: 1400 kg
  • Machine Width: 1700 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 100 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 3.7 kW
  • Through-spindle Coolant: No

Additional Information

  • Spindle motor power: 3.7 kW (5.5 kW at 40% duty cycle)

  • Spindle speed range: 60 - 6300 rpm (infinitely variable)

  • Feed Force: 3000 N / 3500 N

  • Rapid Traverse: 15 m/min / 24 m/min

  • Number of tool slots: 12

  • Main electronic connection: 400 V (3/PE)

  • Power consumption: 6 kVA

  • Chip conveyor: Included

  • Swing over bed: 250 mm

  • Max. Turning Diameter: 85 mm

  • Max. Turning Length: 225 mm

  • Max. Bar Capacity: 25.5 mm

  • Distance between centers: 405 mm

  • Spindle Connection: Ø 70 h5

  • Max. Chuck Size: Ø 100 mm

  • Max. Torque: 35 Nm

  • Turret Type: VDI 16 disk turret with directional logic

  • Tool Shank Cross-section: 12 x 12 mm

  • Coolant tank capacity: 140 liters

  • Sound pressure level: 78 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
