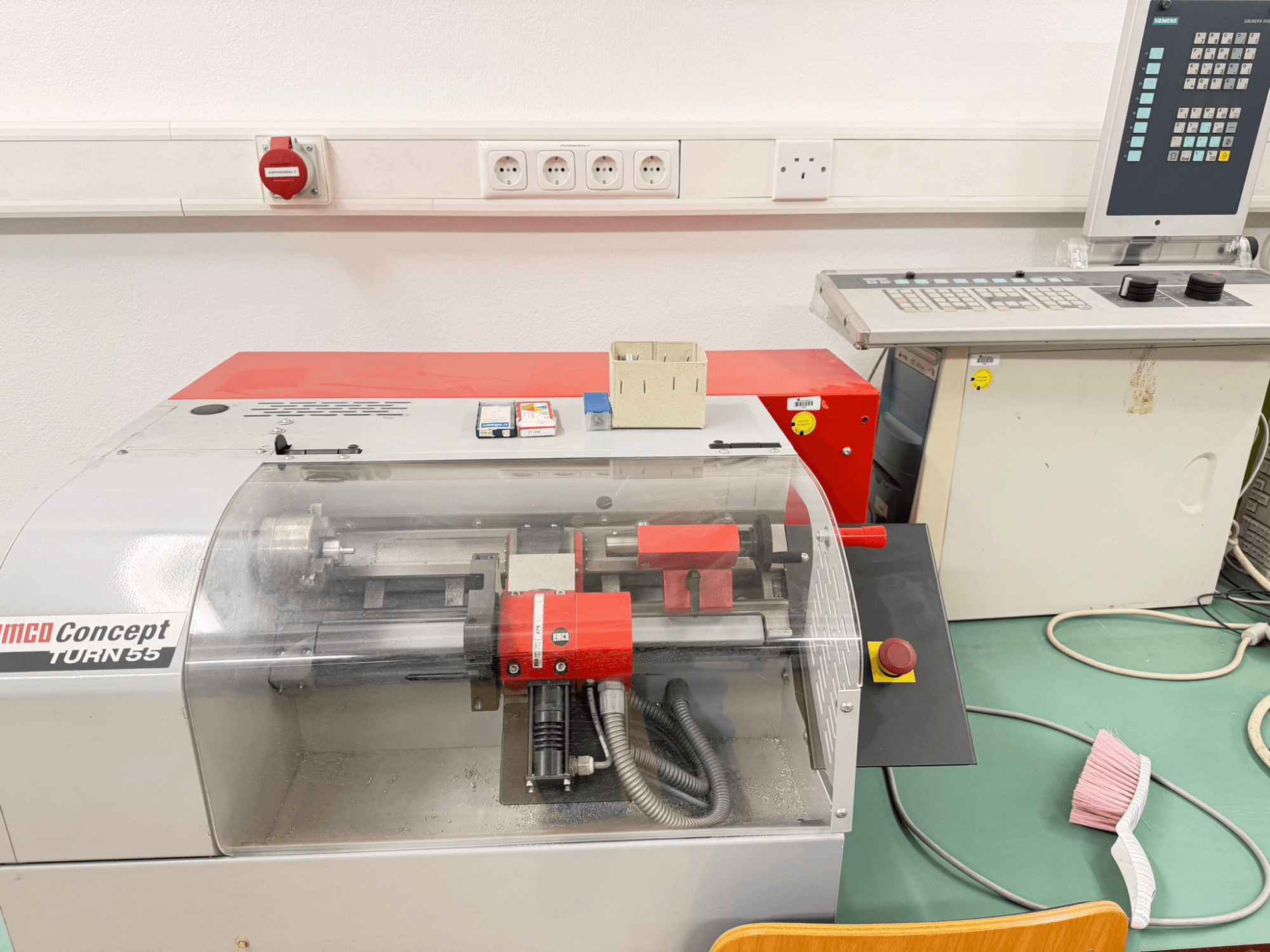

EMCO Concept Turn 55 horizontal turning machine with red and gray exterior, front view showing controls and work area.
EMCO Concept Turn 55 horizontal turning machine with red and gray exterior, front view showing controls and work area.

EMCO - Concept Turn 55DE-TUR-EMC-2006-00003

£ 8,231
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Horizontal turning machine manufactured in 2006. This EMCO Concept Turn 55 features a maximum turning diameter of 52 mm and a maximum part length of 215 mm. It includes a tool turret with 8 positions and a spindle speed range of 120–4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMCO Concept Turn 55 machine we have for sale. Contact us for further details.

Overview

  • brand: EMCO
  • year: 2006
  • MODEL: Concept Turn 55
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - EMCO Concept Turn 55

Dimensions

  • Machine Height: 400 mm
  • Machine Weight: 85 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 48 mm
  • Z-axis Travel: 236 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 7.5 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Working area

    • Swing over bed: 130 mm

    • Swing over cross slide: 60 mm

    • Maximum turning diameter: 52 mm

    • Maximum part length: 215 mm

  • Spindle/Workholding

    • Spindle connection: factory standard

    • Spindle bore: 16 mm

    • Chuck diameter: 74 mm

    • Through hole in chuck: 15 mm

    • Automatic chuck diameter: 76 mm

    • Mechanical speed steps: 2

    • Maximum torque: 14 Nm

  • Tooling

    • Tool turret positions: 8

    • Tool holders (internal/external): 4/4

    • Tool shank size: 12 x 12 mm

    • Boring bar diameter: 10 mm

  • Feeds/Drives/Accuracy

    • Feed drives: 3-phase stepper motors; resolution 0.0005 mm

    • Rapid traverse X/Z: 2 m/min

    • Working feed X/Z: 0–2 m/min

    • Feed force X/Z: 1000 N

    • Position scatter X: 0.008 mm

    • Position scatter Z: 0.008 mm

  • Tailstock

    • Quill stroke: 35 mm

    • Quill diameter: 22 mm

    • Taper: MK1

    • Automatic tailstock quill stroke: 15 mm

  • Lubrication

    • Guideways: oil

    • Other lubrication points: grease

  • Pneumatics

    • Supply pressure: 6 bar

    • Connection: 10 mm

  • Electrical

    • Power supply: 115/230 V

    • Voltage tolerance: +5/-10 %

    • Frequency: 50/60 Hz

    • Connected load: 0.85 kVA

    • Max fuse: 12 A

  • Dimensions/Weight/Noise

    • Axis height above floor: 320 mm

    • Footprint: 840 x 695 mm

    • Sound pressure level: 65 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
