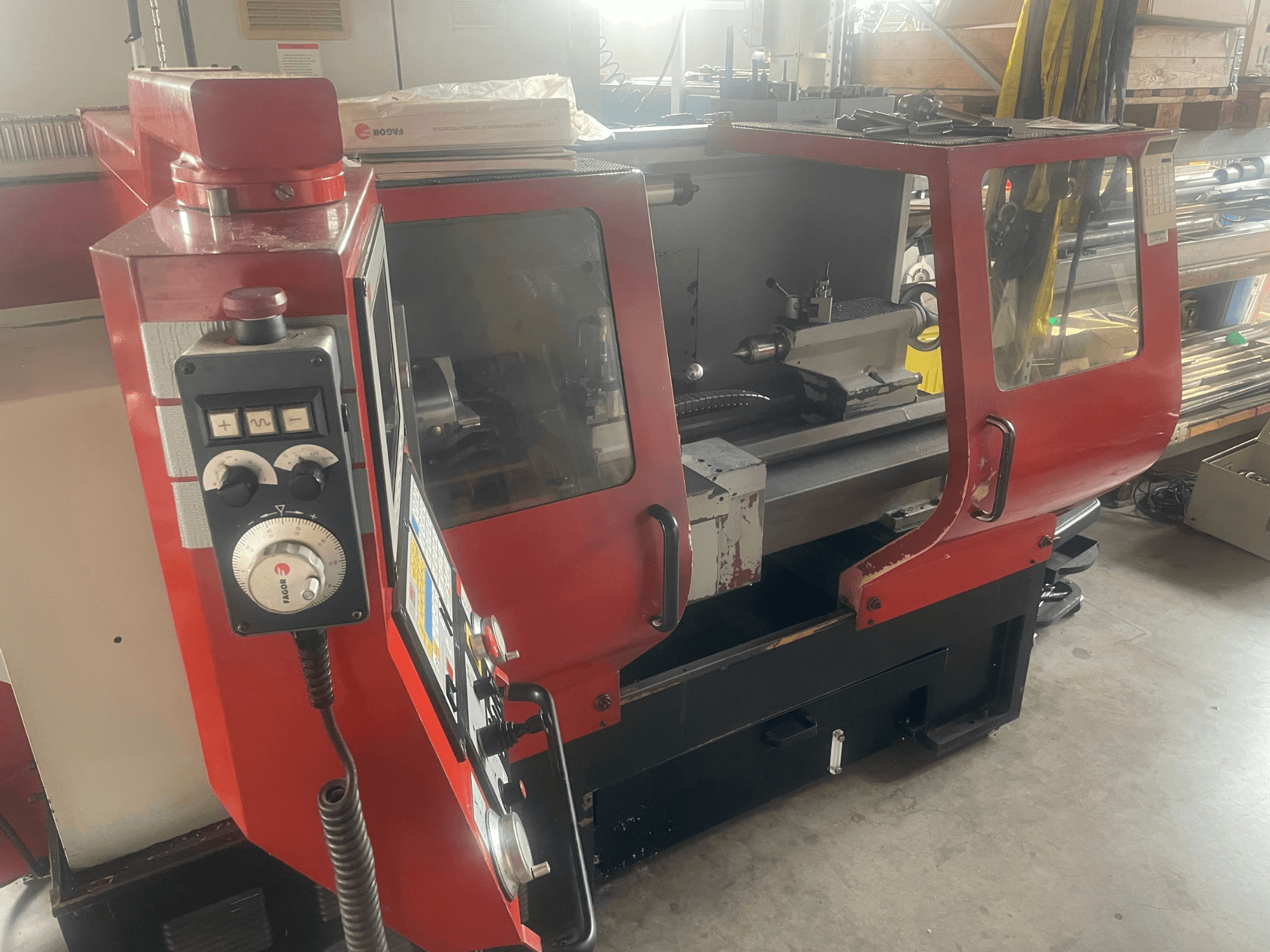

Horizontal turning machine manufactured in 2001. This EMCO EMCOMAT 200X1000 features a turning length of 1,000 mm and a maximum turning diameter over bed of 400 mm. It is equipped with a Fagor 8055 CNC control unit and includes a SMW AUTOBLOCK wedge-type chuck and a Multifix quick-change tool holder. If you are looking to get high-quality turning capabilities, consider the EMCO EMCOMAT 200X1000 machine we have for sale. Contact us for further details.

Overview

brand: EMCO
year: 2001
MODEL: EMCOMAT 200X1000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - EMCO EMCOMAT 200X1000

Control Unit

Control Brand: FAGOR
Control Model: 8055

Dimensions

Machine Height: 1700 mm
Machine Length: 2670 mm
Machine Weight: 1800 kg
Machine Width: 1750 mm

Movement

Number of Axes: 2
X-axis Travel: 220 mm
Z-axis Travel: 1000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 8.3 kW
Spindle Speed: 3000 RPM

Additional Information

- Description: 2-axis teach-in / cycle-controlled CNC lathe with Fagor 8055 CNC control

- Control Unit: Fagor 8055 (CPU 8055/AB-T, AXES 8055, I/O 8055)

- Distance between centers: 1000 mm

- Center height (distance above centers): 200 mm

- Max swing over bed: Ø 400 mm

- Turning length: 1,000 mm

- Maximum turning diameter over slide: 220 mm

- Travel range, Z-axis: 1,000 mm

- X-axis travel: 220 mm

- Turning tool cross-section: 20x20 / 25x25 mm

- Spindle thread: Camlock 5

- Internal taper: 1:20

- Spindle bore: ø51.6 mm

- Spindle speed: 0–3000 rpm, continuously variable

- AC Motor Drive: 18.5 / 8.3 kW

- Tailstock Quill Diameter: 52 mm / MK4

- Tailstock Quill stroke: 145 mm

- Power supply: 400 V / 3-phase / PE

- Rated power: 10 kVA

- Included Equipment / Accessories:

- SMW AUTOBLOCK wedge-type chuck (includes several base jaws)

- Multifix quick-change tool holder (includes several different tool holders), chuck key

- Drill chuck

- Rotating center

- Safety device fully functional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
