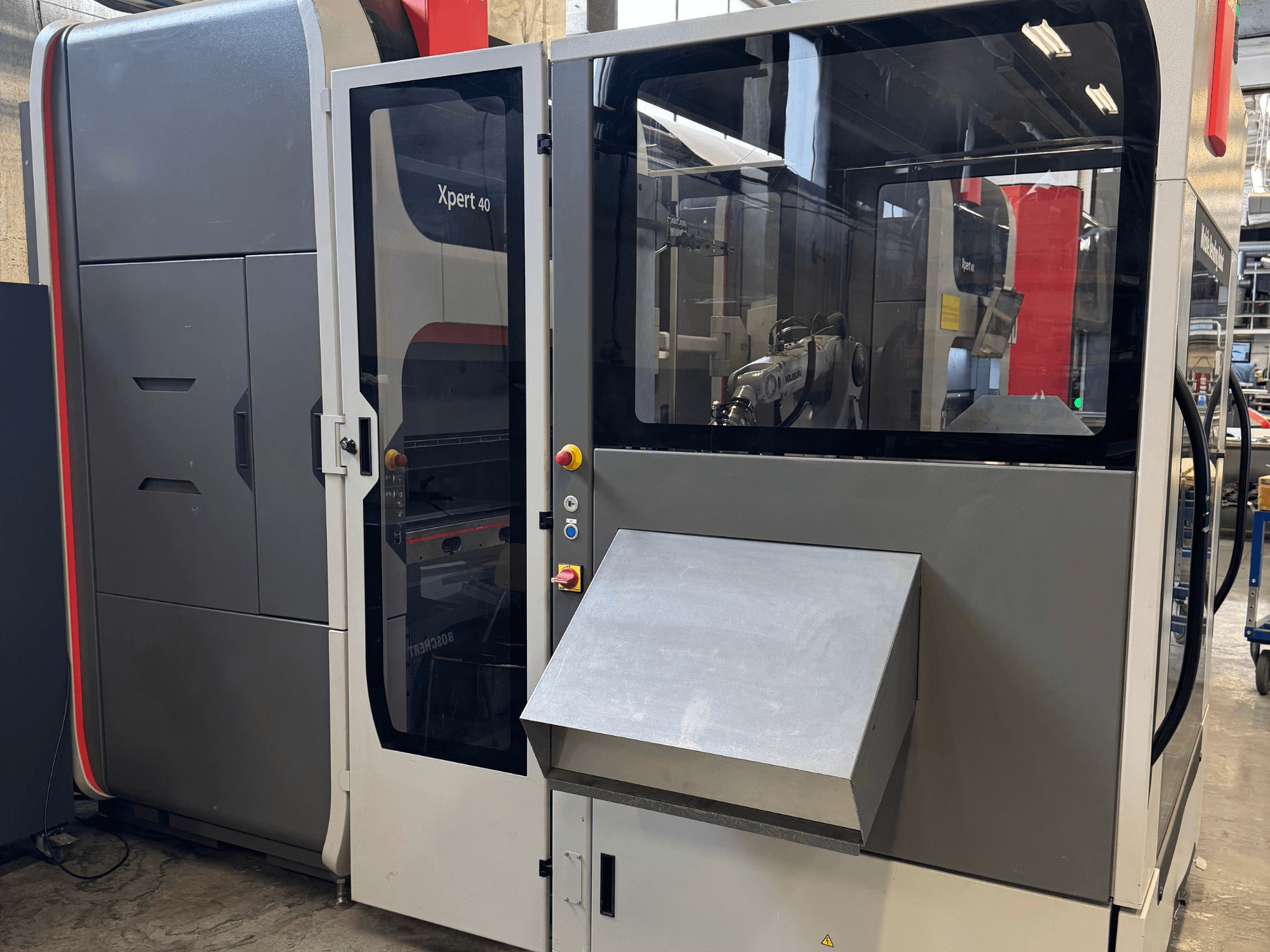

Press brake manufactured in 2017. This Bystronic Xpert 40/1030 features a press force of 400 kN and a bending length of 1030 mm. It includes a ByVision Bending control system and a 6-axis backgauge for enhanced precision. If you are looking to get high-quality bending capabilities, consider the Bystronic Xpert 40/1030 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2017
- MODEL: Xpert 40/1030
- application type: Bending
- Location: Sweden
- machine type: Press Brake
- control unit brand:
Technical Information - Bystronic Xpert 40/1030
Dimensions
- Machine Weight: 4000 kg
Technical Specification
- Bending Length: 1030 mm
- Max. Stroke: 200 mm
- Pressing Force: 400 Kn
Additional Information
Control: ByVision Bending
Backgauge: 6-axis
Interface: OPC
Oil cooling system
Safety system: Fast Bend G2
Electrical: 3-phase 400V / 50 Hz
Main motor power: 7.5 kW
Made in Germany
Additional equipment

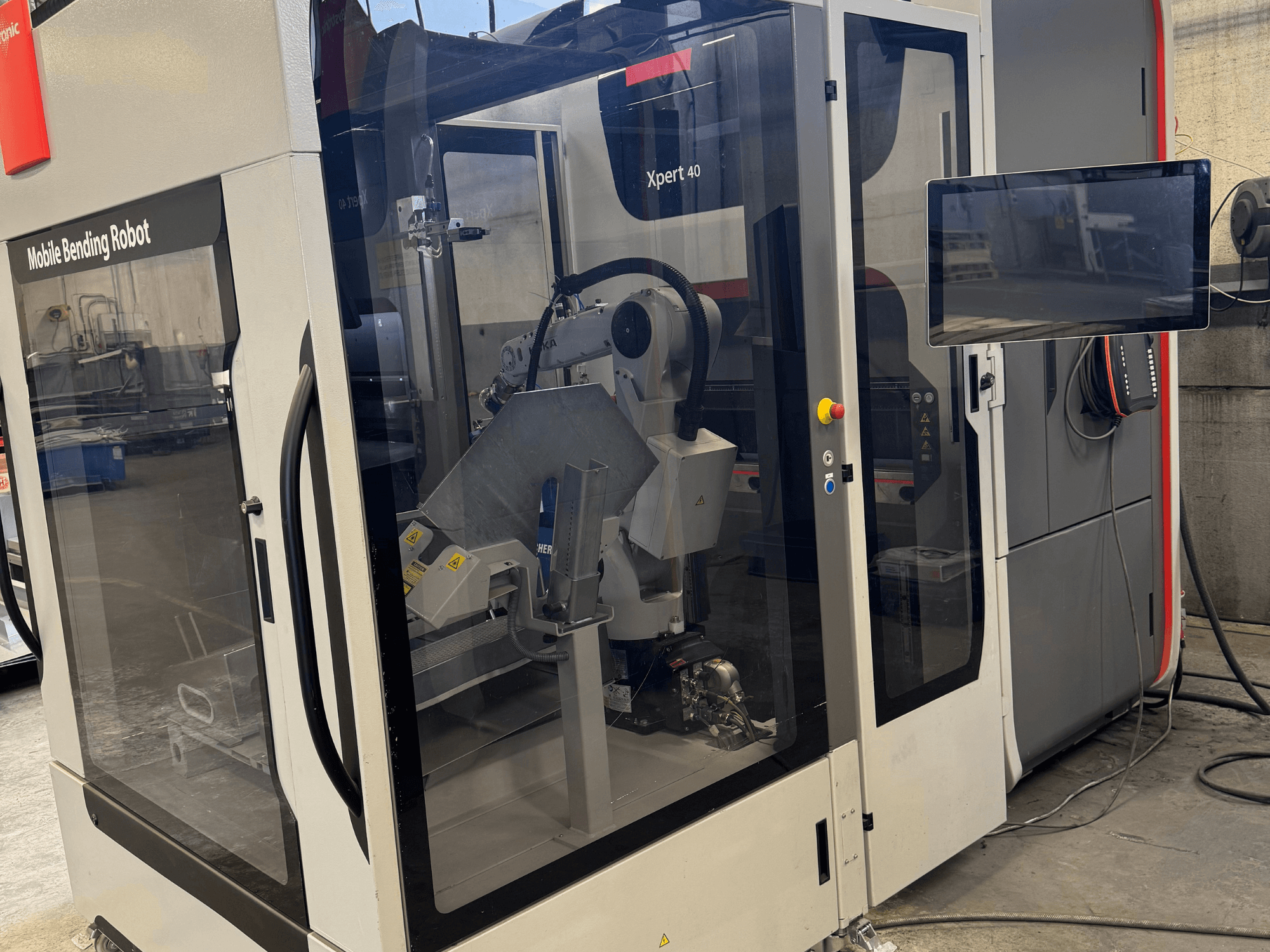

Bystronic Mobile Bending Robot (Integrated robotic bending cell)
Year of manufacture: 2017
Electrical: 3-phase 400V / 50 Hz
Power consumption: 3 kW
Pneumatic pressure max: 8 bar
Weight: approx. 1000 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
