➤ Used Baykal APHS 31440 - Press For Sale | gindumac.com

Show in original language

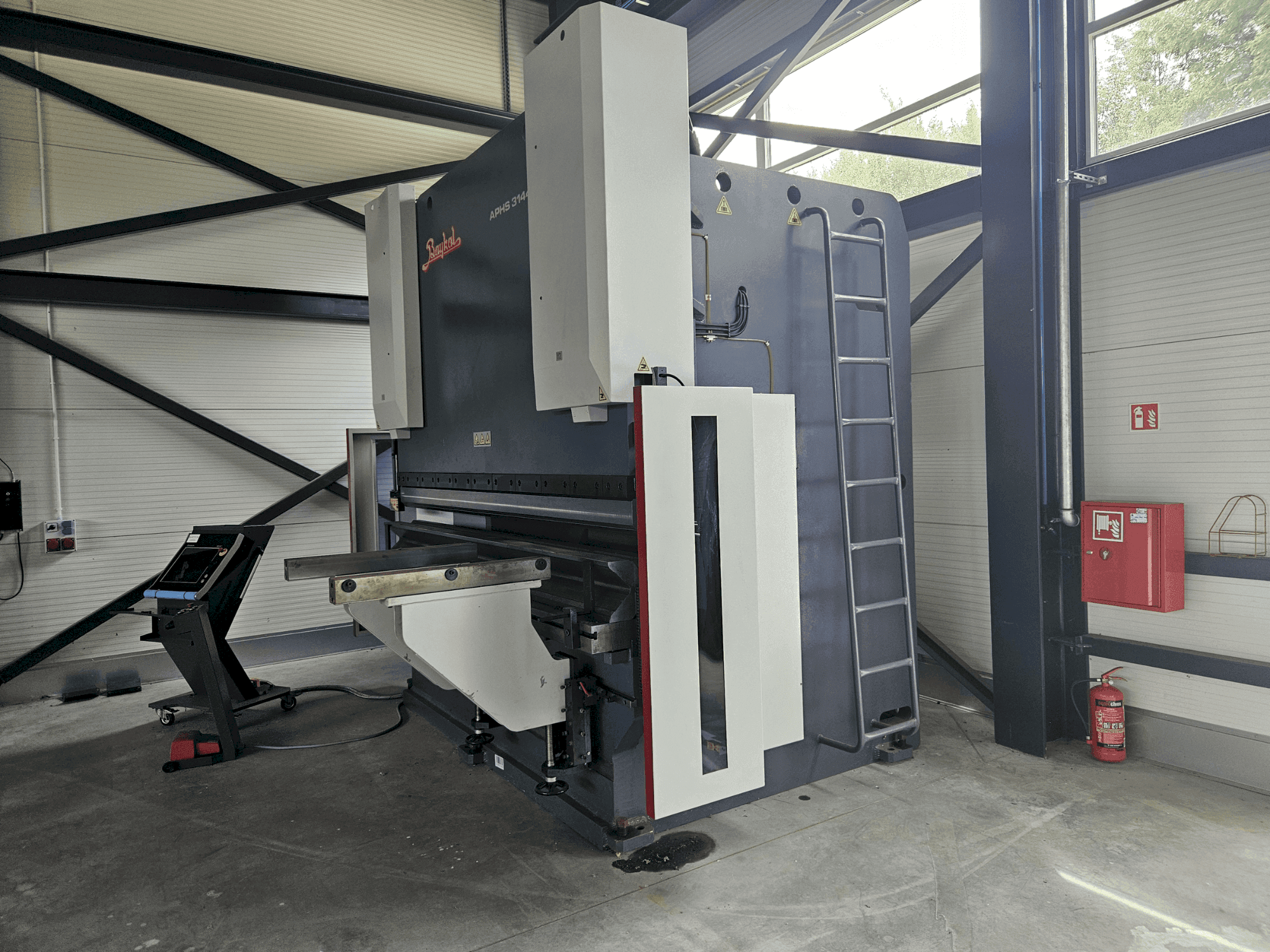

This 4-axis Baykal APHS 31440 press brake was manufactured in 2020. It features a pressing force of 440 tons, a bending length of 3100 mm, and a stroke length of 330 mm. With a motor power of 35 kW and a machine weight of 23500 kg, it includes CNC crowning and a European clamping system. If you are looking to get high-quality bending capabilities, consider the Baykal APHS 31440 machine we have for sale. Contact us for more information.

Overview

brand: Baykal
year: 2020
MODEL: APHS 31440
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: DELEM

Technical Information - Baykal APHS 31440

Control Unit

Control Brand: DELEM
Control Model: DA-66T

Dimensions

Machine Depth: 4100 mm
Machine Height: 3470 mm
Machine Weight: 23500 kg

Movement

Number of Axes: 4

Technical Specification

Bending Length: 3100 mm

Additional Information

Additional equipment

Control Console: Double footswitch console

Machine Benefits

Technical Machine Benefits

Machine in excellent condition, with very low working hours – practically like new
Some tools are included in the offer
Stroke axes: Y1–Y2 cnc controlled
Backgauge x range: 1000 mm
Backgauge fingers: 2 pcs
Stroke length: 330 mm

Extra Information

Tools Upper Tool Weight: 700 kg Lower Tool Weight: 1200 kg Clamping System: Heavy duty top clamping system Tooling System: European clamping system with 85° sectioned punch and 4-V die Crowning: CNC crowning on bottom table Front Support Arms: 2 pcs on linear rail Safety: Electrically interlocked side guards, light barriers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
