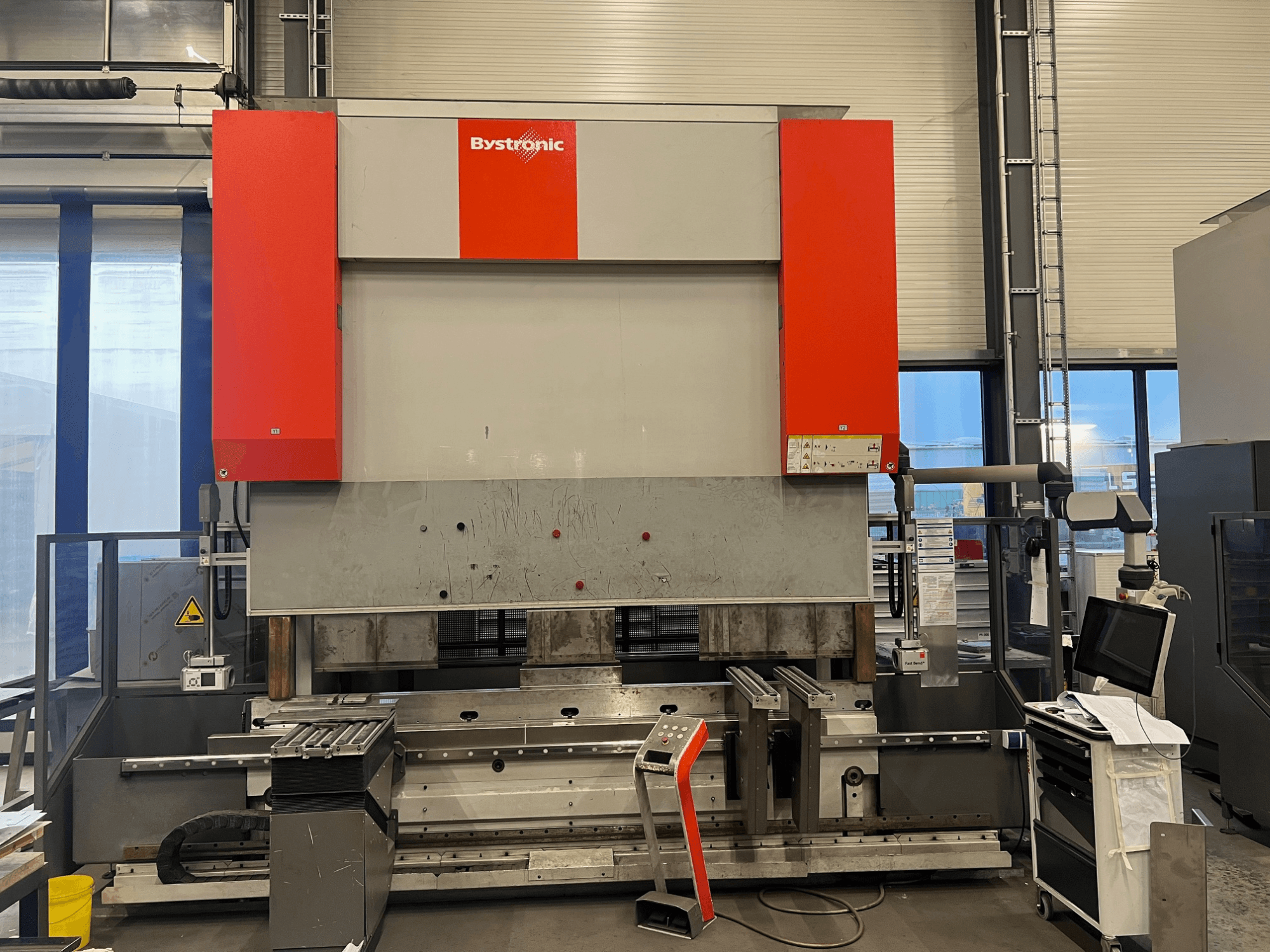

This 5-axis Bystronic Xpert 250/3100 press brake was manufactured in 2014. It features a press force of 2500 kN, bending length of 3100 mm, and a throat depth of 400 mm. The machine includes a robust 22 kW main motor and operates with high precision. If you are looking to get high-quality bending capabilities, consider the Bystronic Xpert 250/3100 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Bystronic
- year: 2014
- MODEL: Xpert 250/3100
- production hours: 23915
- application type: Bending
- Location: Germany
- machine type: Press Brake
- Available from: 01/05/2026
Technical Information - Bystronic Xpert 250/3100
Dimensions
- Machine Height: 3000 mm
- Machine Length: 4100 mm
- Machine Weight: 15000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Z-axis Travel: 1900 mm
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 2500 Kn
Additional Information
Units available: 2x similar units
Standard stroke [S]: 265 mm
Open height [D]: 550 mm
Distance between side frames: 2750 mm
Throat depth [T]: 400 mm
Table width: 60 mm
Max. backgauge range in X (2/4/5 axes): 1050 mm
X-axis speed (2/4/5 axes): 650 mm/s
X-axis accuracy (2/4/5 axes): +/- 0.04 mm
R-axis travel (2/4/5 axes): 250 mm
R-axis speed (2/4/5 axes): 200 mm/s
R-axis accuracy (2/4/5 axes): +/- 0.1 mm
Z-axis speed (4/5 axes): 1500 mm/s
Z-axis speed (6 axes): 1200 mm/s
Z-axis accuracy (4/5 axes): +/- 0.1 mm
Approx. max. Y-rapid traverse: 200 mm/s
Approx. max. Y-rapid traverse in High Speed*: 220 mm/s
Max. Y-working speed: 10 mm/s
Approx. max. Y-working speed in High Speed*: 20 mm/s
Approx. max. Y-working speed in High Speed for robot operation*: 20 mm/s
Y-axis accuracy: 0.004 mm
Oil capacity: 445 l
Main motor power: 22 kW
Weight: 15 t
Machine width [W]: 2050 mm
