➤ Used Baykal APHS 31120 - Press For Sale | gindumac.com

Show in original language

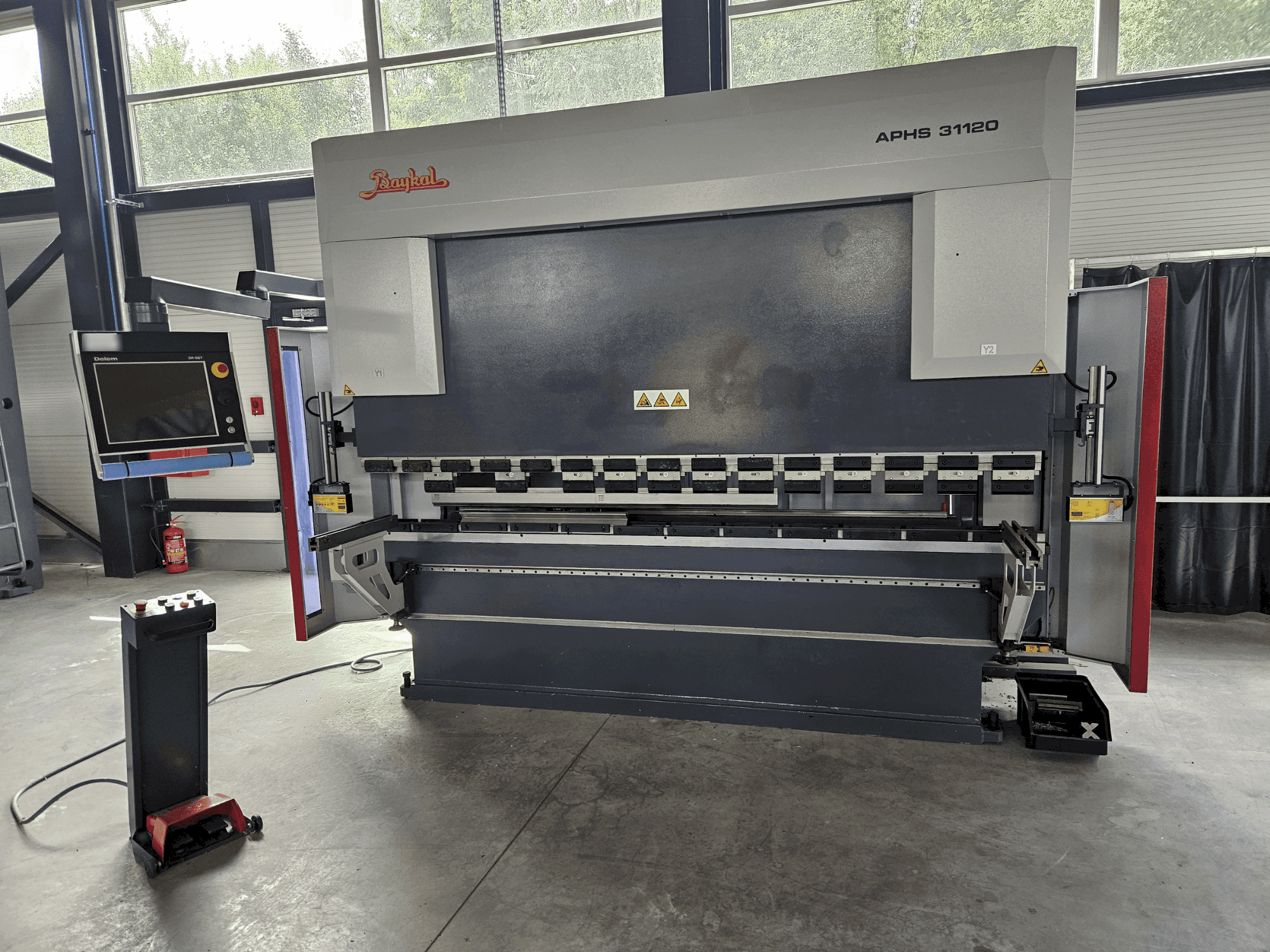

This 4-axis Baykal APHS 31120 press brake was manufactured in 2020. It features a 120-ton press force, a bending length of 3100 mm, and a Delem 66t CNC control unit for precise operations. The backgauge X range extends to 1000 mm, and it includes European clamping with a sectioned punch and die. Consider the opportunity to buy this Baykal APHS 31120 press brake. Contact us for more information about this machine.

Overview

brand: Baykal
year: 2020
MODEL: APHS 31120
application type: Bending
Location: Poland
machine type: Press Brake
control unit brand: DELEM

Technical Information - Baykal APHS 31120

Control Unit

Control Brand: DELEM
Control Model: DA-66T

Dimensions

Machine Depth: 3850 mm
Machine Height: 2675 mm
Machine Weight: 8400 kg

Movement

Number of Axes: 4

Technical Specification

Bending Length: 3100 mm
Max. Stroke: 260 mm

Additional Information

Additional equipment

AC brushless servo driven backgauge with ballscrews
Proportional valve hydraulics: Rexroth or Hoerbiger
Precision linear scale measurement: Heidenhain or Givi Misure
European clamping system with 85° sectioned punch and 4-V die
Double footswitch console
Electrically interlocked side guards

Machine Benefits

Technical Machine Benefits

System pressure: 280 bar
4-axis press brake (y1, y2, x, r)
Distance between frames: 2550 mm
Throat gap: 410 mm
Max. Stroke adjustment: 260 mm
Backgauge x range: 1000 mm (x and x-r types)
Backgauge fingers: 2 pcs
Cnc crowning wedges on bottom table
Tooling is included in the offer
Excellent condition, almost like new

Extra Information

Movement Approach Speed: 160 mm/s Working Speed: 10 mm/s Return Speed: 130 mm/s Table Width: 60 mm Voltage: 400 V / 50 Hz / 3 Ph Delem 66t color graphical Windows CNC control unit
