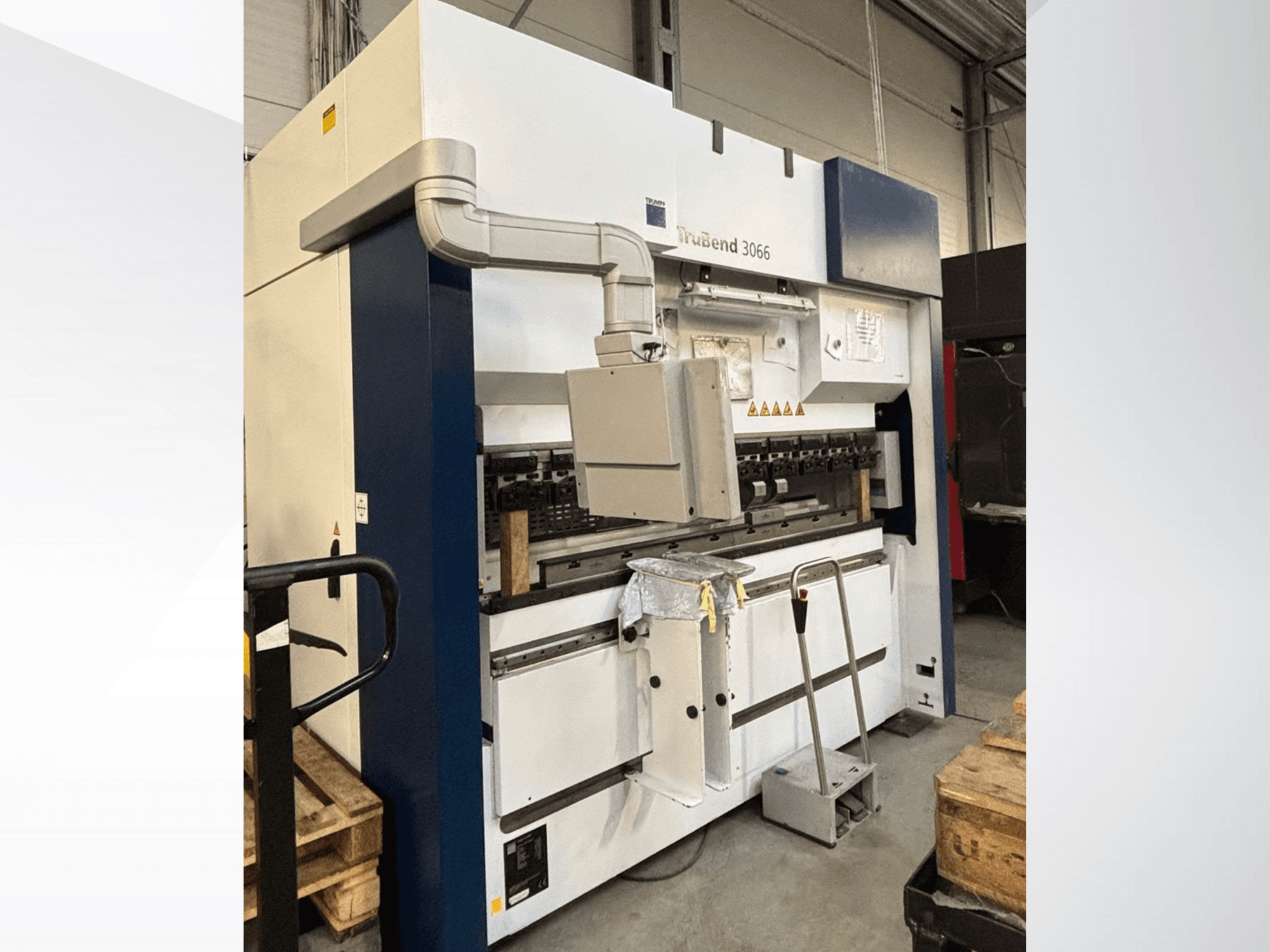

TRUMPF - TruBend 3066 B26 PL-BEN-TRU-2018-00001

Y-axis Stroke: 200 mm

X-axis Travel: 600 mm

R-axis Travel: 150 mm

Backgauge Axes: X / R / Z1 / Z2 (4 axes)

Press Force: 660 kN

Bending Length: 2600 mm

Usable Open Height: Minimum clearance 167 mm

Maximum Distance Table–Beam: 347–432 mm depending on tooling

Throat Depth: Approx. 400–420 mm

Beam Inclination / Parallelism: ±3 mm

Y-axis Rapid Approach Speed: 200 mm/s

Y-axis Working Speed: 15 mm/s

Y-axis Return Speed: Up to 200 mm/s

Positioning Accuracy (Y-axis): 0.01 mm

Mains Supply: 400 V / 50 Hz

Connected Load: 15 kVA
