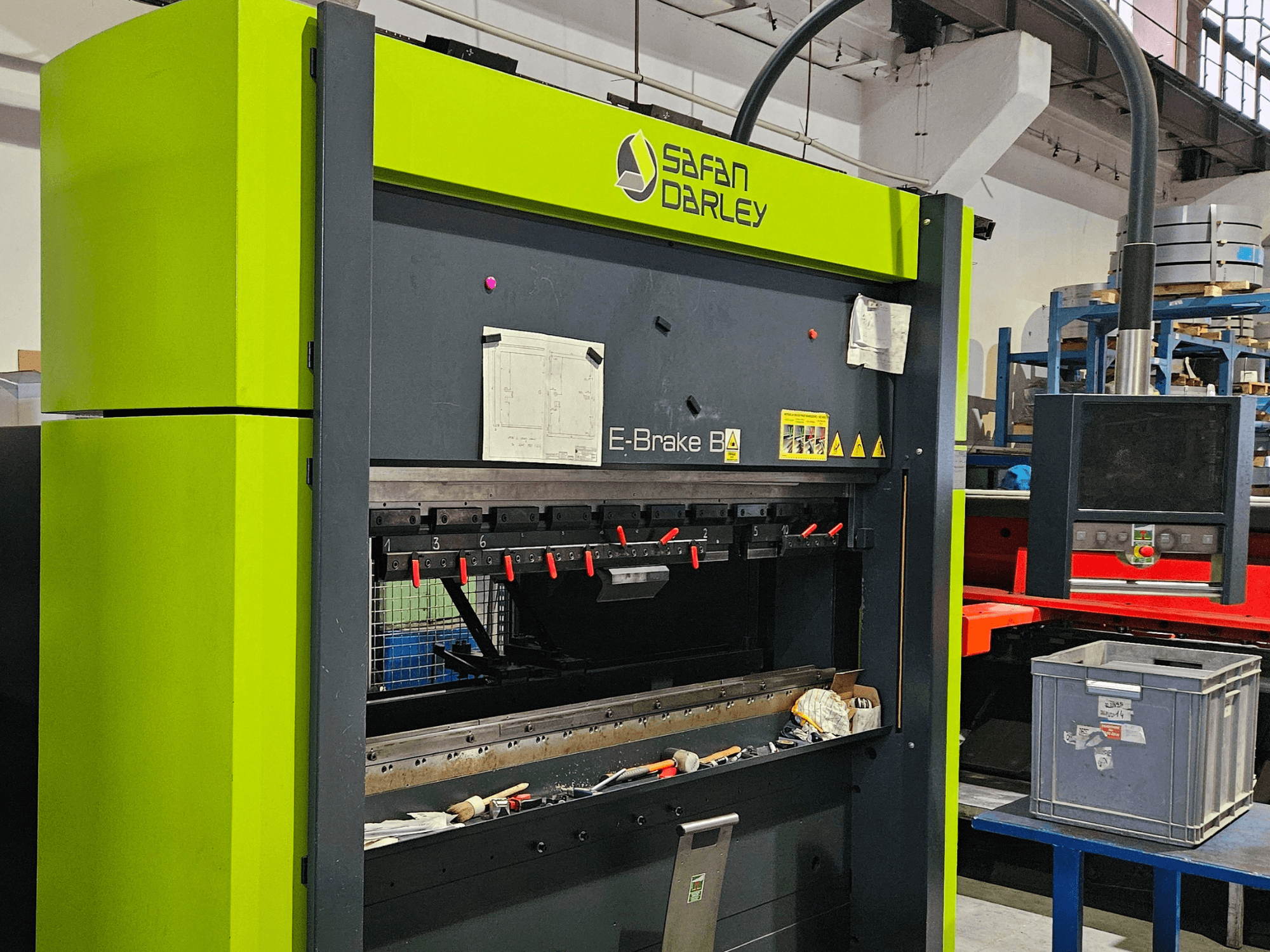

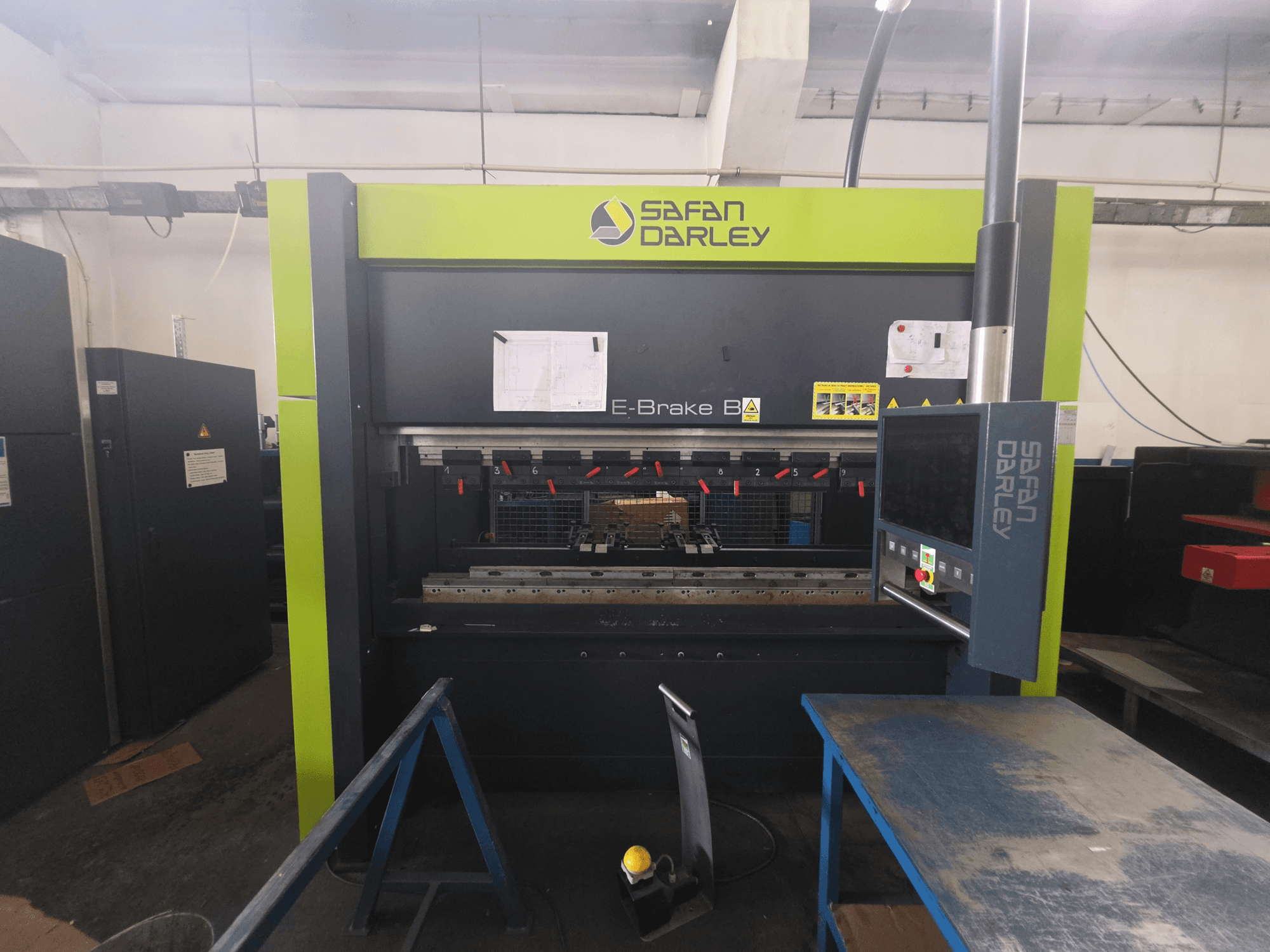

SAFAN - E-Brake B 50-2050 PL-BEN-SAF-2017-00002

• Control unit: EC 20

• Q-dimension: 650 mm

• Upper beam stroke: 300 mm

• Speeds:

  • Approach: 110 mm/s

  • Bending: 10 mm/s

  • Bending with light curtain: 10 mm/s

  • Return: 110 mm/s

• Backgauge:

  • Maximum stroke: 550 mm

  • Maximum speed: 350 mm/s

  • Programmable axes: X, R

  • Mechanical axes: Z1, Z2

  • 4 fingers

• Tool clamping:

  • Upper: European Style adapter

  • Lower: OB-S-3 table with mechanical clamping

• Front supports: Standard, load capacity 25 kg each

• Safety:

  • Light curtain: 28.5 mm gap, programmable, vertical, fixed

  • Stopping time of upper beam: < 92 ms

  • Minimum safety distance: 185 mm

• Electrical:

  • Power supply: 3 × 400 V / 50–60 Hz / N / PE

  • Installed power: 11 kW

Advantages

• Full electric drive

• Up to 30% higher productivity

• Up to 50% energy saving

• No harmful hydraulic oil, low CO2 emissions

• Noiseless operation
