TRUMPF - TRUBEND CELL 5000 with TRUMPF TruBend 5170 and Bend Master 60DE-BEN-TRU-2017-00001

£ 183,107
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

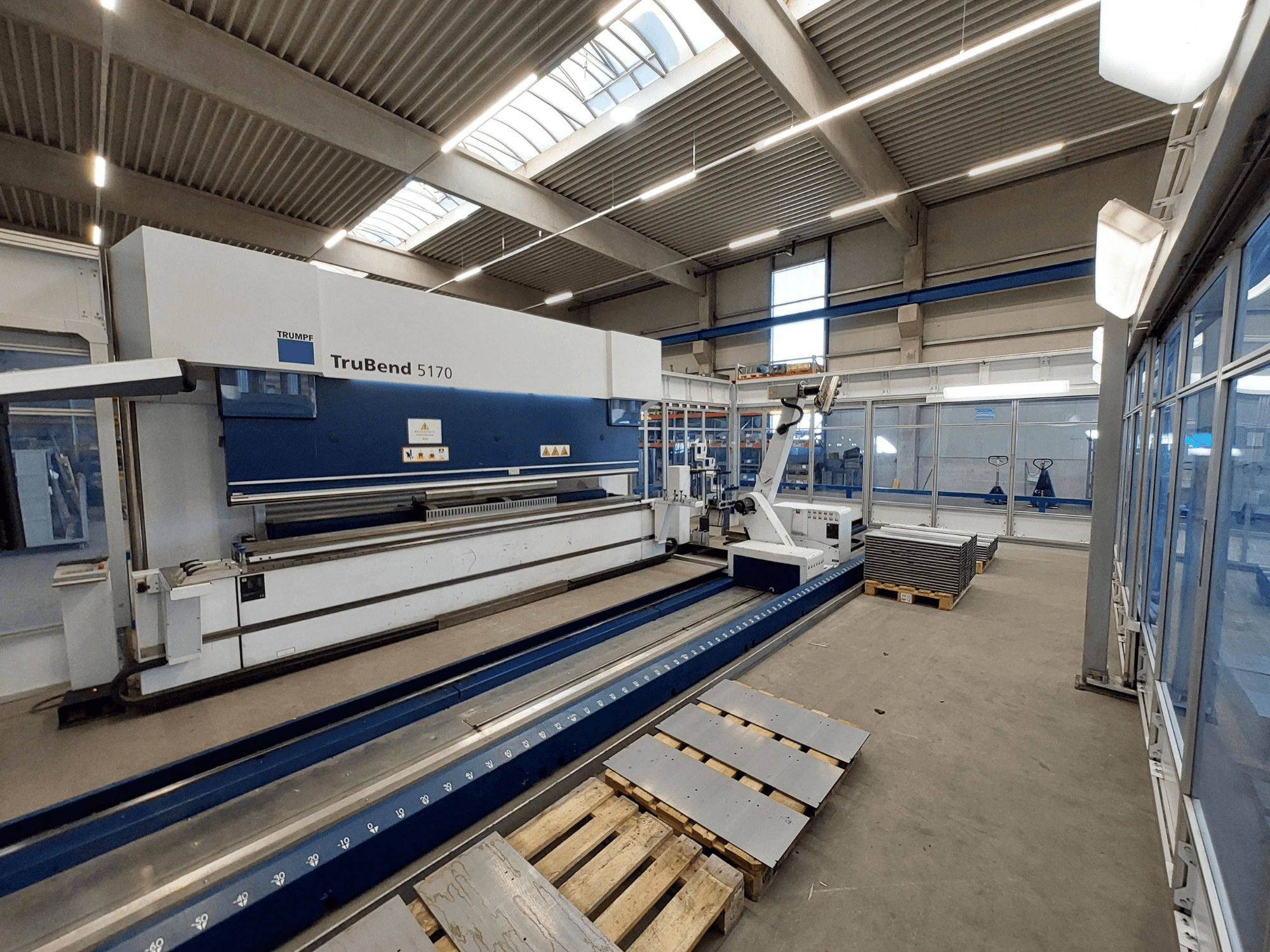

Press brake manufactured in 2017. This TRUMPF TRUBEND CELL 5000 with TRUMPF TruBend 5170 features a maximum press force of 1700 kN and a stroke length of 445 mm. It includes the BendMaster 60 robot for automated handling and a TRUMPF TASC 6000 control system for efficient programming. If you are looking to get high-quality bending capabilities, consider the TRUMPF TRUBEND CELL 5000 press brake we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2017
  • MODEL: TRUBEND CELL 5000 with TRUMPF TruBend 5170 and Bend Master 60
  • application type: Bending
  • Location: Germany
  • machine type: Press Brake
  • Available from: 08/06/2026
  • control unit brand: TRUMPF

Technical Information - TRUMPF TRUBEND CELL 5000 with TRUMPF TruBend 5170 and Bend Master 60

Control Unit

  • Control Brand: TRUMPF
  • Control Model: TASC 6000

Technical Specification

  • Bending Length: 4250 mm
  • Pressing Force: 1700 Kn

Additional Information

- Press Brake Model: TruBend 5170 (Extended Version)

- Press Brake Max Press Force: 1700 kN

- Press Brake Max Working Pressure: 340 bar

- Press Brake Length of Stroke: 445 mm

- Press Brake Voltage / Frequency: 400 V / 50 Hz

- Press Brake Connected Load: 29 kVA

- Press Brake Control Voltage: 24 V

- Robot Model: BendMaster 60

- Robot Connected Load: 17 kVA

- Robot Weight: 2600 kg

- Robot Voltage / Frequency: 400 V / 50 Hz

- Control System: TRUMPF TASC 6000 (Graphical workshop programming, network capability)

- Included Equipment: Extended version press brake, BendMaster 60, automated material handling/grippers, fencing and safety enclosures

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
