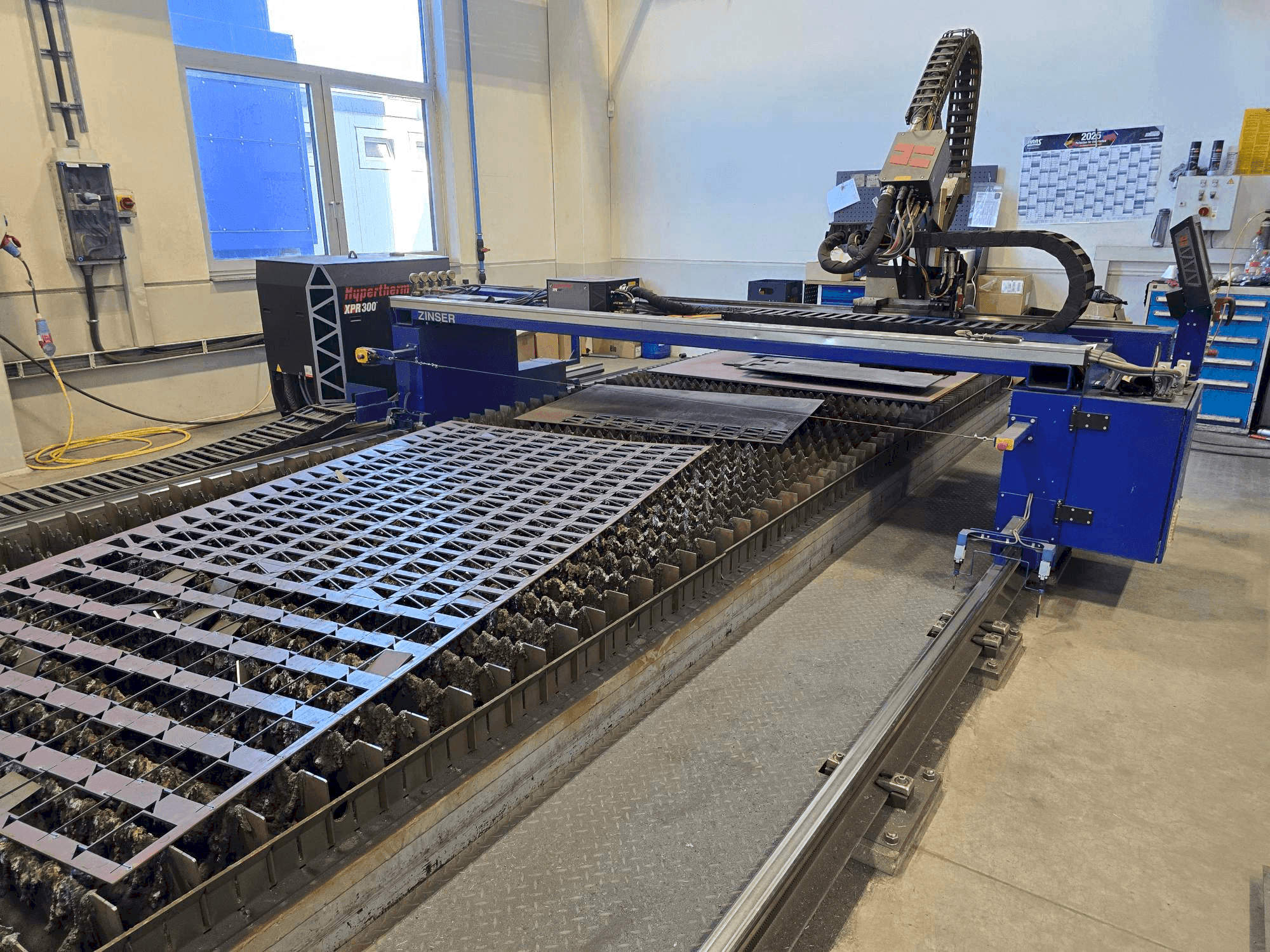

ZINSER - 2425-I/3600DE-CUT-ZIN-2017-00001

Additional equipment

• Energy chain for plasma operation

• Environmentally friendly extraction system with sectional distribution

• Automatic gas console for monitoring and controlling gas flow and pressure

Machine Benefits

Technical Machine Benefits

• High-quality ac servo motors for movement

• Automatic initial height detection via nozzle contact

• Optimal cutting quality with customized gas mixture

• Excellent extraction quality with designed cross distributors

• Plasma and oxyfuel cutting

• Total table elements: 4

• Dimensions per table element: 2080 × 2100 × 950 mm

• Continuous usable work surface: 2000 x 8000 mm (vertical cutting), 1500 x 8000 mm (angled cutting)

• Movement feed: 10 to 15000 mm/min rapid traverse: 25000 mm/min

• Double-sided, synchronized longitudinal drive via pinion and rack with brushless ac servo motors

• PRO Nest Software included

Extra Information

Control Unit CNC path control with Windows 8.1 operating system 17" TFT color monitor - Touch Full HD IPC-based with AMD CPU 4x2.0 GHz SSD 64 GB, 4 GB RAM (upgradeable to 16 GB RAM) Ambient temperature +5°C to +45°C at max. 90% humidity, non-condensing 100-240 V AC input voltage Integrated network card Joystick for manual movement Remote maintenance service Cutting range: 0° to 50° vertical stroke Compressed air requirements: max. 7 bar, cleaning pressure 6-7 bar Sound level during filter cleaning: ≤ 75 dB(A)
