➤ Used MicroStep SPLR-P For Sale | gindumac.com

Show in original language

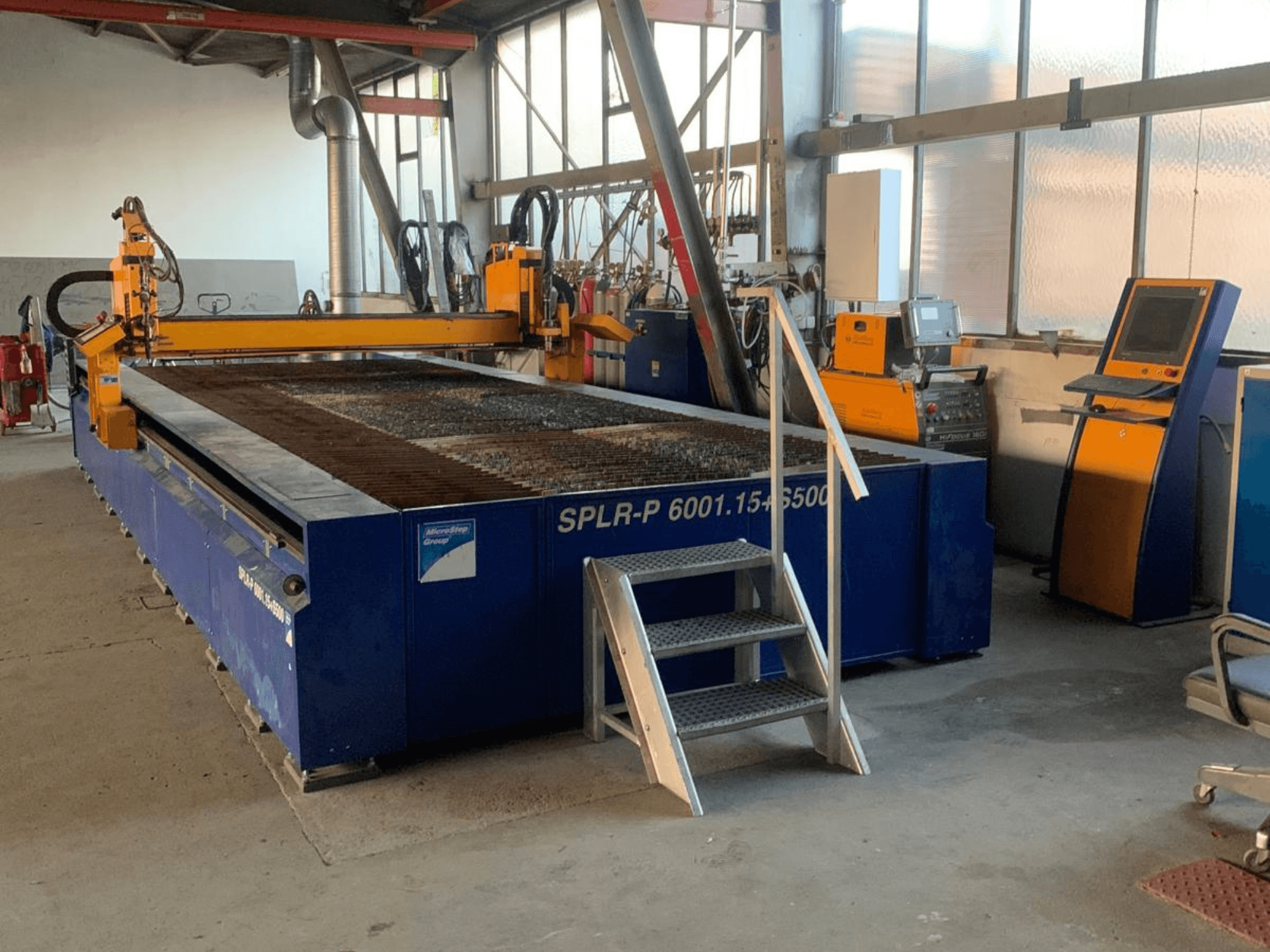

Plasma cutting machine manufactured in 2007. This MicroStep SPLR-P features a Kjellberg HiFocus 160i PLUS plasma power source, offering a cutting current range of 10A to 160A. It includes an integrated CNC operator terminal for precise control and a filtration system by Donaldson Torit DCE. If you are looking to get high-quality plasma cutting capabilities, consider the MicroStep SPLR-P machine we have for sale. Contact us for further details.

Overview

brand: MicroStep
year: 2007
MODEL: SPLR-P
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine

Technical Information - MicroStep SPLR-P

Movement

Number of Axes: 3
X-axis Travel: 6000 mm

Additional Information

- Voltage (Sp.): 400 V 50/60 Hz

- Power Rating: 3 kW

- Plasma Power Source Brand: Kjellberg Finsterwalde

- Plasma Power Source Model: HiFocus 160i PLUS

- Plasma Power Source Serial / Art. No.: Art.-Nr. 11.033.702 / 07057

- Plasma Power Source Specifications:

- Open Circuit Voltage (U0): 330 V

- Mains Voltage (U1): 400 V (3~ 50 Hz)

- Max Current (I1max): 47 A

- Effective Current (I1eff): 47 A

- Power / Pressure: P1/min = 0.7 kW, Pmax = 0.5 MPa

- Cutting Current Range: 10A / 84V - 160A / 144V

- Duty Cycle: 100% at 160A / 144V; 100% at 25A / 90V

- Power Source Mass: 196 kg

- Protection / Insulation Class: IP 22, Isol.kl. F

- Cooling Type: AF

- Gas Console / Control Units: Kjellberg PGC and PGV 1

- Torch Systems / Cutting Heads:

- 1x Plasma Cutting Head

- 1x Oxy-fuel / Flame Cutting Head

- Control Console: Integrated CNC operator terminal with keypad and display

- Filtration / Dust Extraction System: Donaldson Torit DCE

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
