MicroStep - 3001.15P/MEDE-CUT-MIC-2021-00001

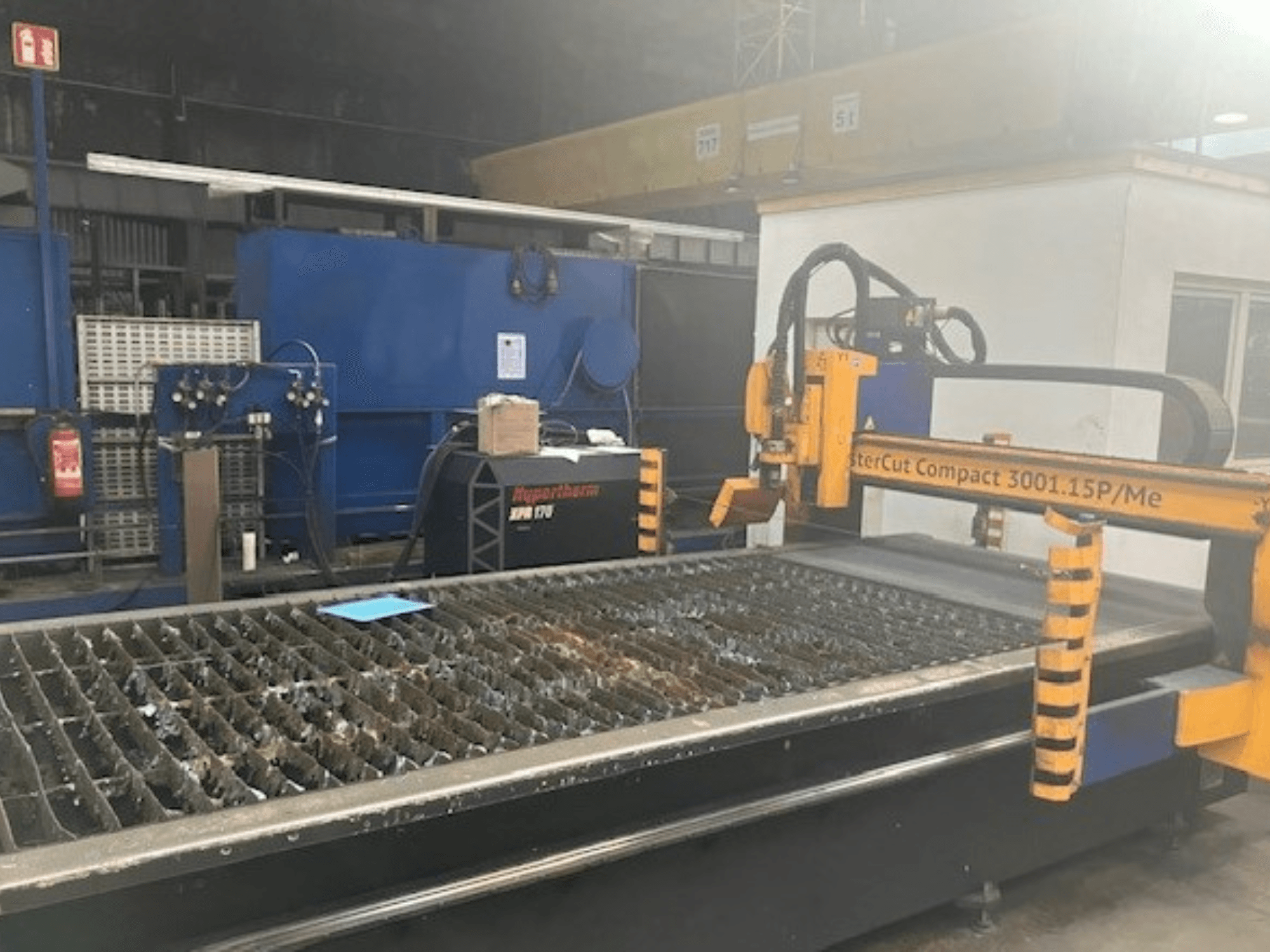

MasterCut Compact 3001.15P/Me Approx. 3,000 x 1,500 mm Sturdy construction Up to 100 mm material thickness High-quality linear guides and backlash-free drive on both sides Digital, maintenance-free AC servos with IRC Up to 40,000 mm/min IRC 2500 (incremental encoder)

• Permissible plate thickness: stable construction up to 100 mm material thickness

• Guides/Drives: high-quality linear guides and double-sided clearance-free drive

• Axis control: digital, maintenance-free AC servos with IRC

• Positioning speed: up to 40,000 mm/min

• Measuring system: IRC 2500 (incremental encoder)

• CNC control: MicroStep iMSNC with integrated network card

• Plasma power source: Hypertherm XPR170

• Gas console: automatic Core gas console

• Table surface: grid cover in the cutting table

• Height control: "THC" module for automatic height regulation via arc voltage

• Marking unit: "MicroPunch" needle marking unit

• Safety features: double-sided rope safety system (collision protection) for the gantry via Emergency Stop

• Visual signaling: 2-color LED signal tower on the gantry bridge

• Operation interface: externally standing MMI console

• Connectivity: USB 3.0 port for storage media

• Software: AsperWin Basic (2D programming) and AsperWin Nesting (automatic nesting)
