MicroStep - SPL-P 4501.25DE-CUT-MIC-2008-00001

Name: MicroStep SPL-P 4501.25
Brand: MicroStep
SKU: DE-CUT-MIC-2008-00001
Price: 11545 GBP
Availability: InStock

£ 11,545

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used MicroStep SPL-P 4501.25 For Sale | gindumac.com

Show in original language

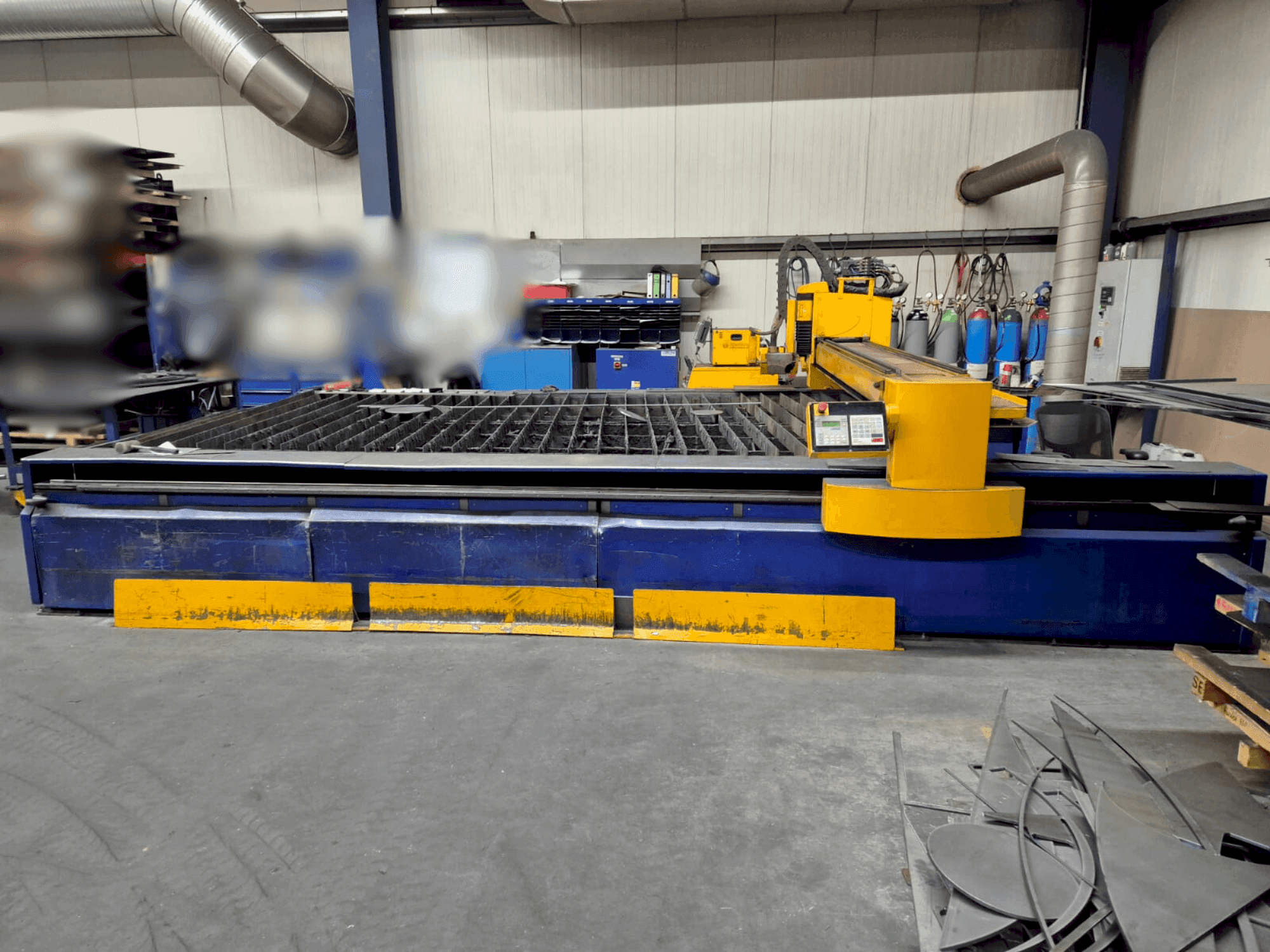

This plasma cutting machine was manufactured in 2008. It features a CNC control MSNC500P Windows and a plasma source with a cutting range of 0.5 to 25/30mm, adjustable from 10 to 160 A for cutting. The flame cutting table measures 4500x2000mm, suitable for both plasma and oxyfuel cutting. It operates efficiently within a temperature range of +5 to +45 °C. Consider the opportunity to buy this MicroStep SPL-P 4501.25 plasma cutting machine. Contact us for more information about this machine.

Overview

brand: MicroStep
year: 2008
MODEL: SPL-P 4501.25
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine

Technical Information - MicroStep SPL-P 4501.25

Dimensions

Machine Depth: 960 mm
Machine Height: 1050 mm
Machine Weight: 196 kg
Table Length: 4500 mm
Table Width: 2000 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Cnc control: msnc500p windows
Plasma source cutting range: 0. 5 to 25/30mm (up to 50mm st-material separating cut)
Plasma source power: continuously adjustable from 10 to 160 a (cutting) and 4 to 25 a (marking)
Connected load: 38 kva
For plasma and oxyfuel cutting of sheet metal up to 100mm thickness
For plasma and oxyfuel cutting of sheet metal up to a material thickness of 100mm in a total length of 4500mm, section width 500mm, suction channel diameter 280mm
Overall dimensions: 6100x3384mm
Working temperature: +5 to +45 °c
Max. Humidity: 90% (at 20°c)
Power input: max. Kva 3 kw (230v, 50hz, 16a)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
