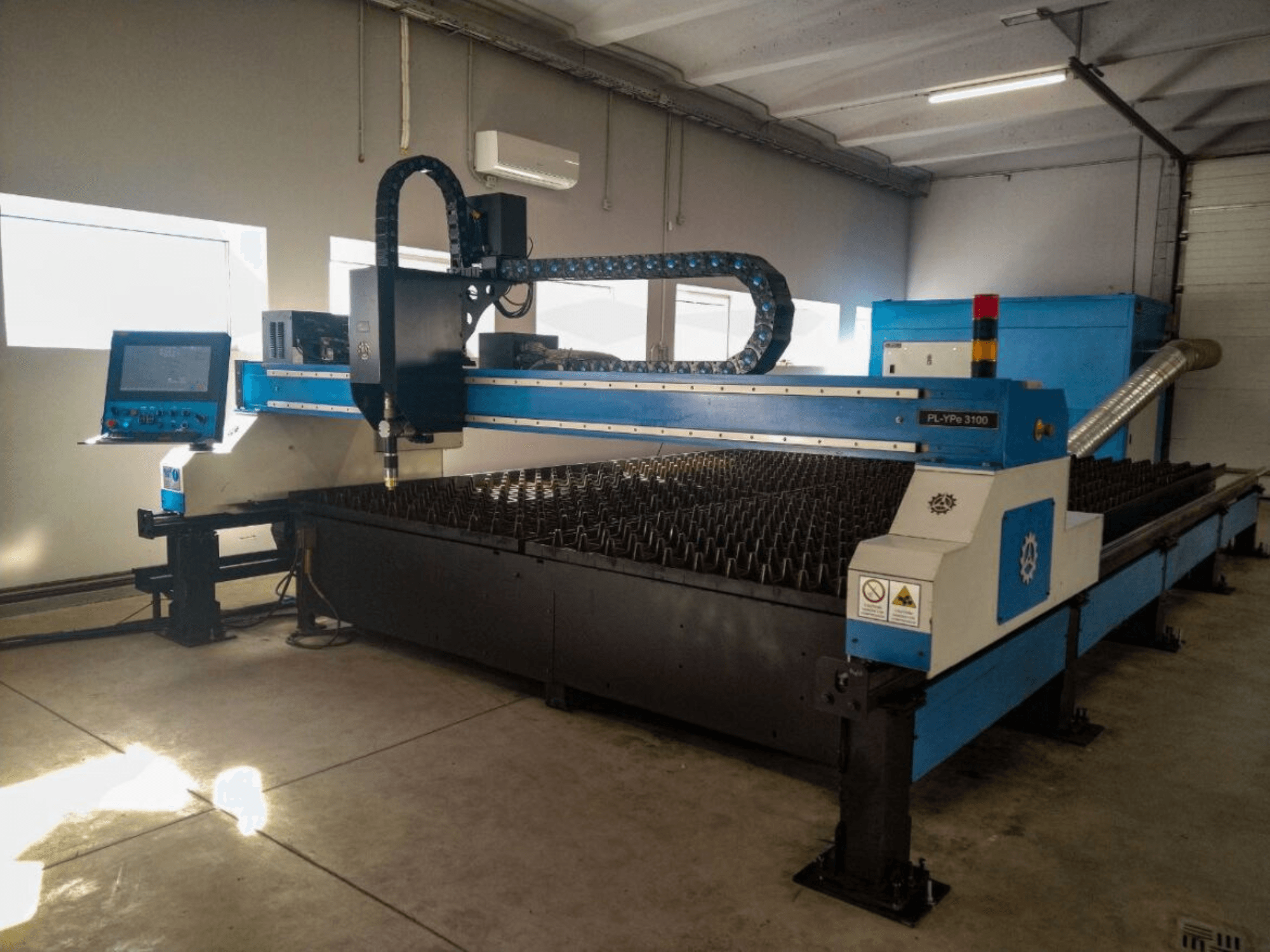

Hypertherm - PL-YPE 3100LV-CUT-HYP-2017-00001

• Plasma source: Hypertherm HyPerformance HPR400XD Gas

• Hypertherm power source model: HPR400 (006634)

• Control type: Autogas console for precise sheet metal cutting

• Torch working height: 100 mm

• Cutting capacity:

  • Mild steel: up to 50 mm

  • Stainless steel: up to 75 mm

  • Aluminum: up to 45 mm

• Cutting from edge:

  • Mild steel: up to 80 mm

  • Stainless steel: up to 80 mm

• Productive cutting thickness: up to 45 mm

• Positioning accuracy (per 1000 mm): ±0.2 mm

• Repositioning accuracy (per 1000 mm): ±0.2 mm

• Max positioning speed: 20 m/min

• Max cutting speed: 15 m/min (15,000 mm/min)

• Electrical requirements:

  • Machine voltage: 200 V / 50 Hz

  • Generator/power supply: 380 V / 60 A

Additional equipment

• Filtration system: Oytunmak – 12,000 m³/h

• Compressed air system: AERIUS VB – 7.5 kW with air dryer
