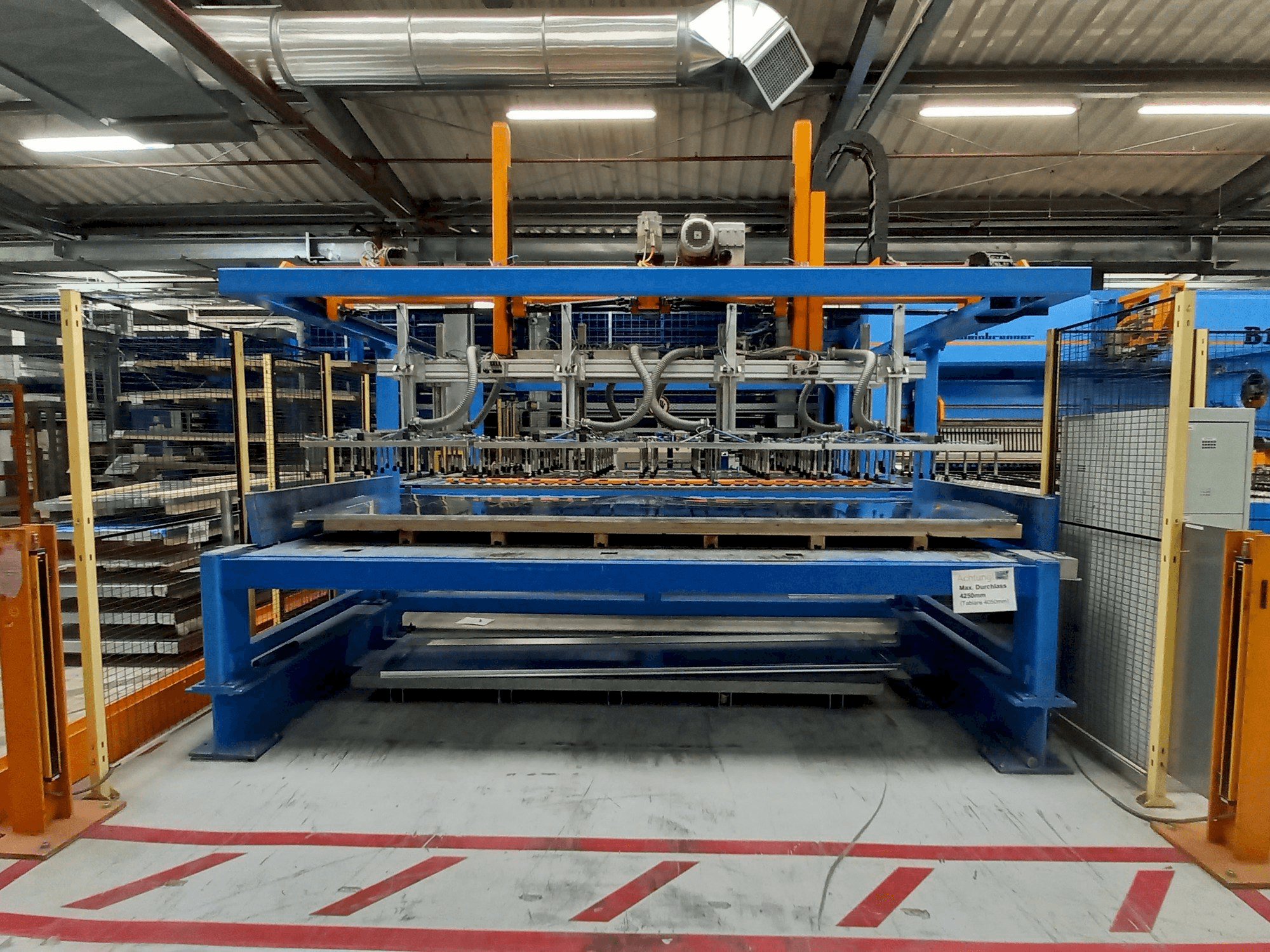

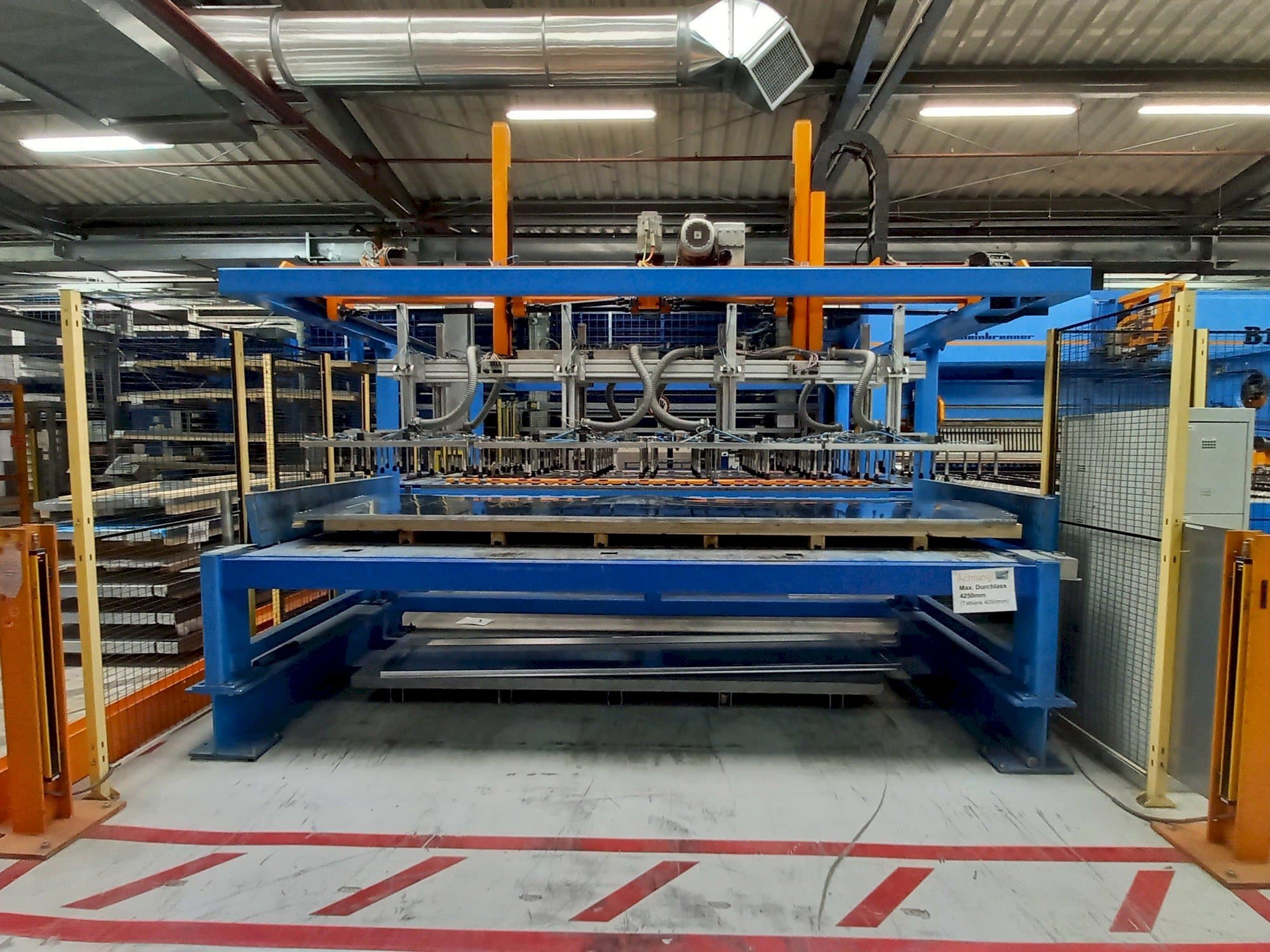

Weinbrenner B 12 Bending machine

Show in original language

This Weinbrenner B 12 Bending machine was manufactured in the year 2006. It is equipped with a SINUMERIK 840D control unit.

Overview

brand: Weinbrenner
year: 2006
MODEL: B 12
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - Weinbrenner B 12

Dimensions

Machine Depth: 9942 mm
Machine Height: 3700 mm
Machine Weight: 45000 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Blank size max. : 1500 x 4060 mm blank size min. : 400 x 400 mm sheet thickness max. (450n/mm? ): 3mm
Bending angle upwards max. : 135°
Bending angle downwards max. 300 mm
Rotation adjustment(mareless)
Fuse protection: 2000
Power: 70 kw
Pressure: 6bar air consumption:5001/min connections

Technical Machine Benefits

Connection power: 70 kw
Cross sections: 4 x 70mm2
Max. Blank size: 1500 x 4060 mm
Min. Blank size: 400 x 400 mm
Bending angle upwards max. : 135°
Bending angle downwards max. : 130°
Opening width max. : 300mm rotation adjustment (stepless)
Fuse protection: 200a
Pressure: 6bar
Air consumption: 500l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
