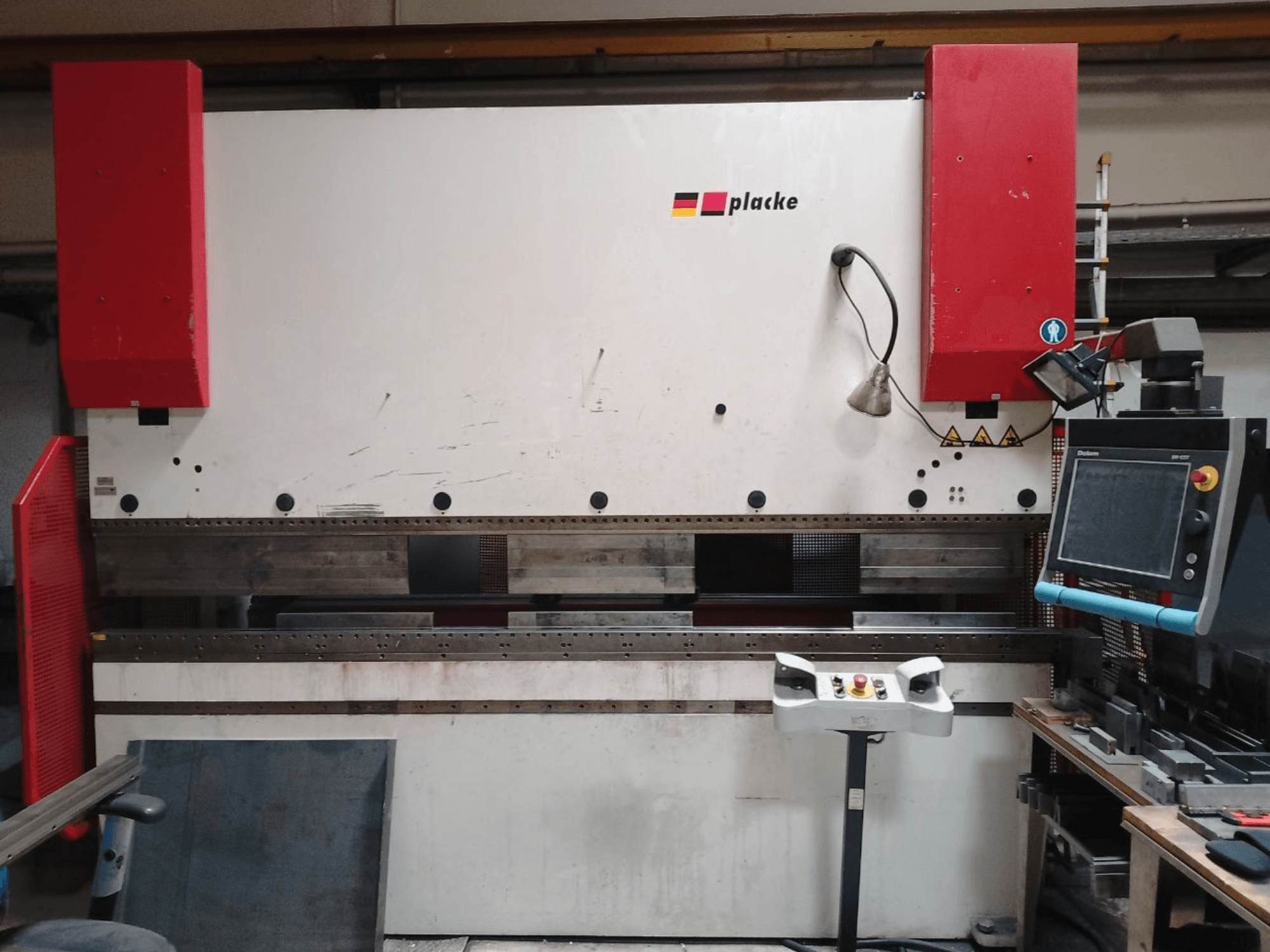

This 4-axis PLACKE QPB-4 150/3100 was manufactured in 2001. It features a press force of 1500 kN and a bending length of 3100 mm, making it suitable for various bending applications. The machine includes a mechanical crowning system and comes with a comprehensive set of tooling and accessories. If you are looking to get high-quality bending capabilities, consider the PLACKE QPB-4 150/3100 press brake we have for sale. Contact us for further details.
Overview
- brand: PLACKE
- year: 2001
- MODEL: QPB-4 150/3100
- production hours: 9584
- application type: Bending
- Location: Germany
- machine type: Press Brake
- control unit brand: DELEM
Technical Information - PLACKE QPB-4 150/3100
Control Unit
- Control Brand: DELEM
- Control Model: DA-69T
Dimensions
- Machine Height: 2820 mm
- Machine Length: 3400 mm
- Machine Weight: 11000 kg
- Machine Width: 1700 mm
Movement
- Number of Axes: 4
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 1500 Kn
Additional Information
- Control System / Software: Delem DA-69T CNC Control (4 axes)
- Operating Hours: 9,584.1 hours
- Maximum Operating Pressure: 300 bar
- Distance Between Uprights: 2600 mm
- Ram Stroke: 215 mm
- Installation Height: 525 mm
- Throat Depth: 300 mm
- Working Height (without table/tools): 900 mm
- Rapid Advance Speed: 150 mm/s
- Working Speed: 0 - 9.8 mm/s
- Return Speed: 100 mm/s
- Safety Speed: < 10 mm/s
- Stopping Time: 0.15 s
- Safety Distance: 270 mm
- Ram Dwell Time: 0 - 9.9 s
- Drive Power: 11 kW
- Total Connected Load: 15 kW
- Voltage / Frequency: 400 V / 50 Hz (3 PEN)
- Control Voltage: 24 V DC
- Current Rating: 30 A
- Fuse Protection: 35 A
- Hydraulic Tank Capacity: 270 L
- Max. Oil Operating Temperature: 80 °C
- Oil Filtration on Filling: < 25 µm
- Sound Level: < 70 dB(A)
- X-Axis Travel Range: 600 mm (Max speed: 400 mm/s, Accuracy: +/- 0.02 mm, Motor torque: 1.9 Nm)
- R-Axis Travel Range: 200 mm (Max speed: 200 mm/s, Accuracy: +/- 0.05 mm, Motor torque: 1.9 Nm)
- Z1-Z2-Z3-Z4 Axis Adjustment Range: 2400 mm (Manual adjustment)
- Crowning System: Mechanical crowning system by Wila (0.6 kW, controlled via CNC)
- Tool Clamping / System: Wila Modufix
- Operating Ambient Temperature: +5 °C to +40 °C
- Operating Humidity: 30% to 95% (non-condensing)
- Included Accessories & Tooling:
* Foot control panel
* Technical documentation (1 set)
* Sheet support arms: 2x 1m, 2x 0.5m
* Punches (Upper Tools): 5x 515mm (28°, H200); 2x 100mm (28°, H200); 1x 200mm (28°, H200); 1x each 20mm, 30mm, 35mm, 40mm (28°, H200); 2x 100mm (28°, H200 with corner notch); 2x 255mm
* Dies (Lower Tools): 5x 515mm (12x30°, R=1, H55); 6x segmented (12x30°, R=1, H55) [Total width 3m]; 4x 515mm; 1x 475mm; 8x segmented [Total width 3m]; 1x 515mm (50x80°, R=5, H55); 1x unspecified; 1x 200mm (V=8, 30°, R=1, H55)
* Tool extensions: 1x 1240mm (H140, L410), 2x 50mm (H100), 4x custom-made (H100)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
