- ➤ Used Baykal APHS 2104x60 - Press For Sale | gindumac.com

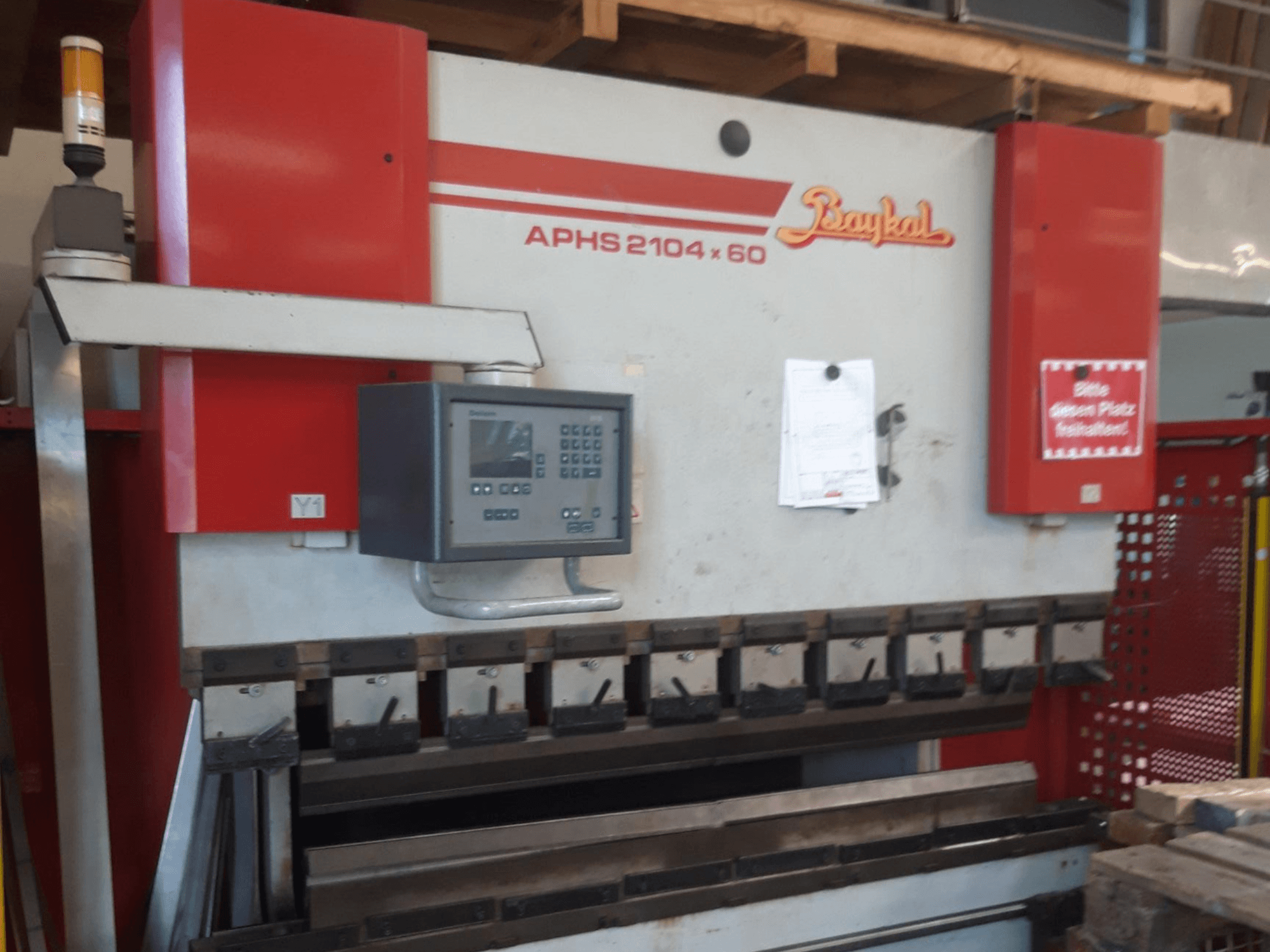

This 4-axis Baykal APHS 2104x60 was manufactured in 2006. It features a press force of 60 t and a bending length of 2,100 mm, making it suitable for various bending applications. The machine has a maximum stroke of 215 mm and operates at a working pressure of 240 bar. If you are looking to get high-quality bending capabilities, consider the Baykal APHS 2104x60 press brake we have for sale. Contact us for further details.
Overview
- brand: Baykal
- year: 2006
- MODEL: APHS 2104x60
- production hours: 11068
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - Baykal APHS 2104x60
Dimensions
- Machine Height: 2300 mm
- Machine Length: 2530 mm
- Machine Weight: 4000 kg
- Machine Width: 1750 mm
Movement
- Number of Axes: 4
Technical Specification
- Bending Length: 2100 mm
- Pressing Force: 600 Kn
Additional Information
Power Supply: 400 V / 50 Hz / 3 Ph
Motor Power: 5.5 kW
Working Pressure: 240 bar
Maximum Stroke: 215 mm
Upper Tool Weight: 57 kg
Lower Tool Weight: 88 kg
Operating Hours: 11,068 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
