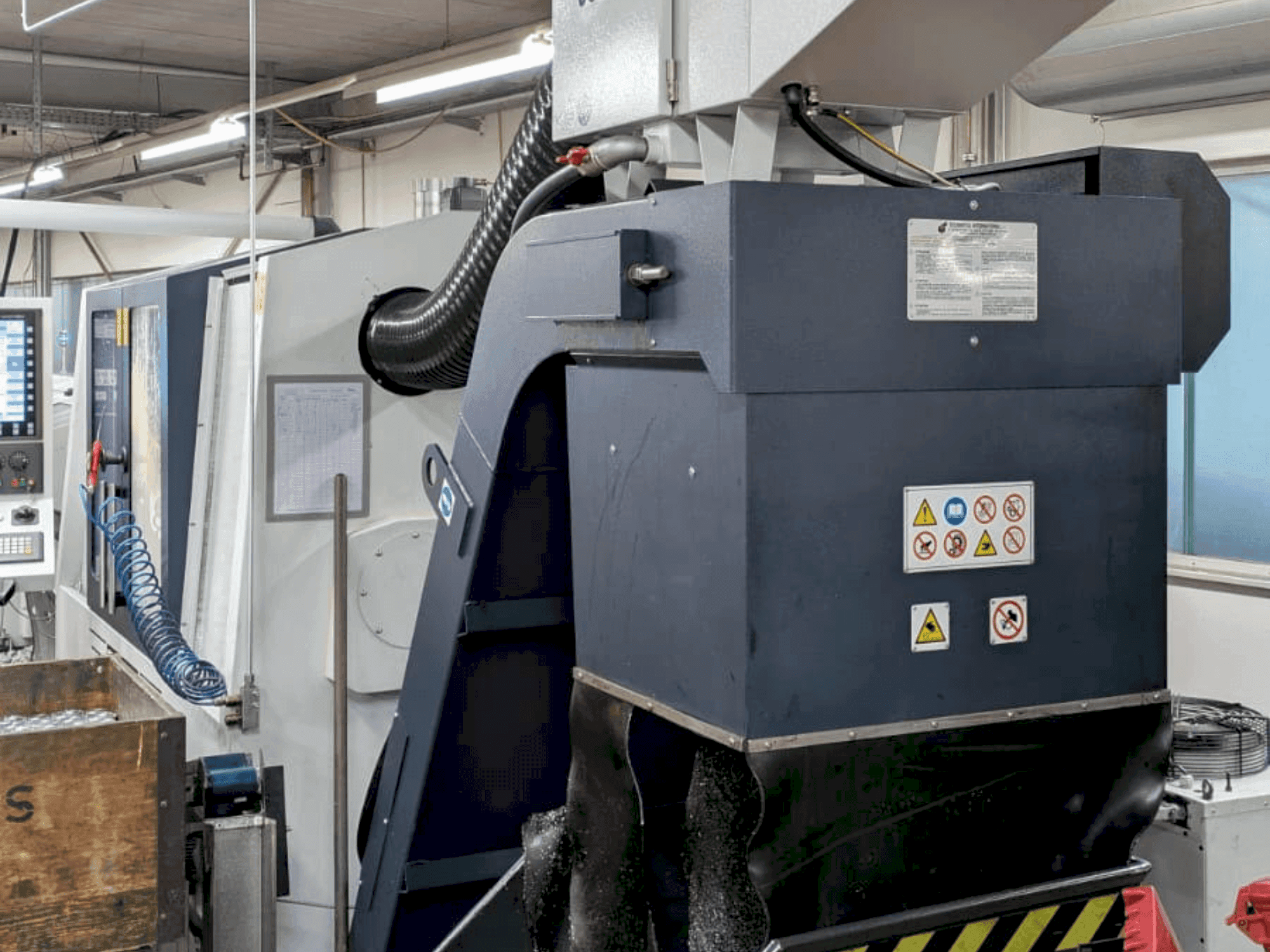

SPINNER TTS 65-DUPLEX

Photo Gallery

SPINNER - TTS 65-DUPLEXDE-TUR-SPI-2020-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TTS 65-DUPLEX For Sale | gindumac.com

Show in original language

This 7-axis SPINNER TTS 65-DUPLEX horizontal turning machine was manufactured in 2020. It features a spindle bore of Ø65 mm, a chuck diameter of 210 mm, and a maximum spindle speed of 5000 rpm. The machine includes a 3-meter bar loader, enhancing its productivity. With rapid traverses of 30 m/min and an acceleration of 0.5 g, it ensures efficient operations. If you are looking to get high-quality turning capabilities, consider the SPINNER TTS 65-DUPLEX machine we have for sale.Contact us for more information.

Overview

brand: SPINNER
year: 2020
MODEL: TTS 65-DUPLEX
production hours: 22380
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - SPINNER TTS 65-DUPLEX

Control Unit

Control Brand: SIEMENS
Control Model: 840D-SL

Dimensions

Machine Depth: 2880 mm
Machine Height: 1990 mm
Machine Weight: 7500 kg

Movement

Number of Axes: 7

Technical Specification

Spindle Power: 24 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Coolant Tank Volume: Approximately 200 liters
Hydraulic Tank Volume: Approximately 120 liters
Central Lubrication Unit Volume: Approximately 2 liters
Operating Current (IB): 76 A
Rated Current of Protection Device (IN): 80 A

Machine Benefits

Technical Machine Benefits

Acceleration: 0. 5 g
Spindle nose: a6 type
Chuck diameter: 210 mm
Maximum torque: 151 nm / 115 nm (s3 40% / s1)
Coolant tank volume: approximately 200 liters

Extra Information

Travel Paths: X1, X3: 180 mm X2: 180 mm Y1, Y3: ±45 mm Z1, Z3: 704 mm Z2: 620 mm E2: 720 mm // Accessories: -4x Tool holders, straight, left-right square mount, external coolant -4x Machine Interface:BT45A Tool Holder:Ø 32 mm Coolant Supply:IK 80 bar Functional Length (LF): 85 mm Overhang Length (LPR): 110 mm Functional Width (WF): 59/21 mm -1x Milling Head: 90° / BMT 45 / Spinner No. 125548 / ER 25 Description: Angled milling head / BMT45 / ESX-25, dual-spindle (right and left) Spinner flat coupling ER25, max. speed: 6000 rpm, i=1:1 Enhanced version with center height of 85 mm -1x Parting Tool Holder Universal rotation direction External coolant supply

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
