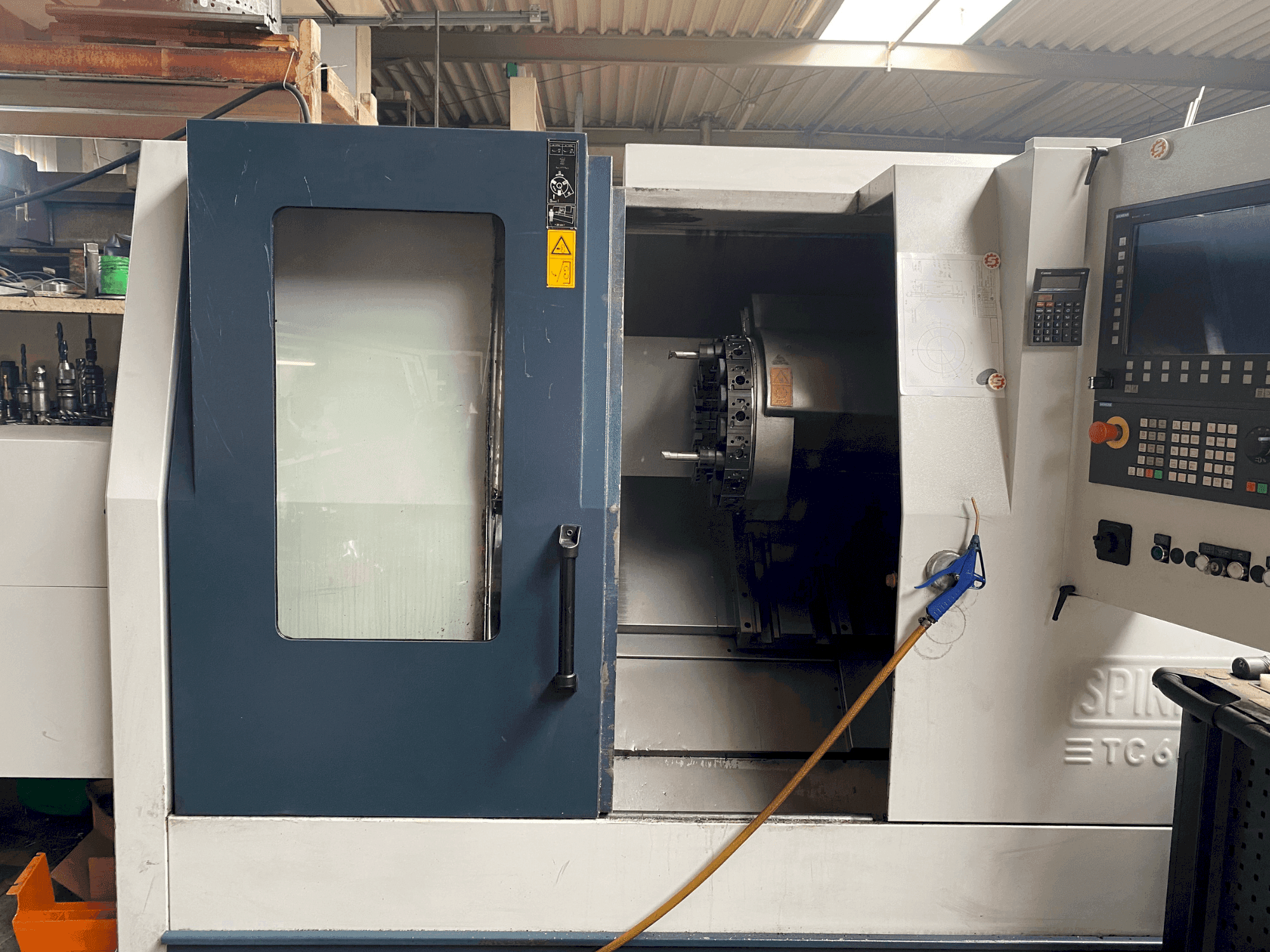

This 2-axis SPINNER TC 600-65MC horizontal turning machine was manufactured in 2017, featuring a Siemens 840D control system and a 16-position indexing turret. It includes a main spindle with a speed of up to 4,000 rpm and a power of 24 kW. The machine offers a swing diameter over bed of 425 mm and a maximum turning diameter of 310 mm. Consider the opportunity to buy this SPINNER TC 600-65MC horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: SPINNER
- year: 2015
- MODEL: TC 600-65MC
- production hours: 12244
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - SPINNER TC 600-65MC
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D-SolutionLine
Dimensions
- Machine Height: 1620 mm
- Machine Weight: 4200 kg
Movement
- Number of Axes: 2
- X-axis Travel: 230 mm
- Z-axis Travel: 740 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 4500 RPM
Additional Information
Additional equipment
- Full splash guard cladding + coolant unit
- Work area light + pneumatic equipment
- Panoramic window for optimum visibility into the work area
Machine Benefits
Technical Machine Benefits
- Center distance: approx. 600 mm
- Max turning diameter: 310 mm
- Torque: main spindle (fanuc, s6 40%) 178 nm, main spindle (siemens, s6 40%) 301 nm
- Quill stroke: 120 mm
- Adjustment travel: 475 mm
- Speed of rotating tools: 6000 1/min
- Driven tool power: (fanuc, 30 min) 3. 7 kw, (siemens, 40%) 6. 0 kw
Extra Information
Media Pneumatics max. operating pressure: 10 bar Normal pressure: 6 bar Hydraulics max. operating pressure: 30 bar Control Unit Control system: Standard Siemens 840D, Option Fanuc 21i Operating voltage: 400 V Mains frequency: 50/60 Hz Control voltage: 24 V DC Interfaces: USB, Ethernet, SPINNER-UNIMAG bar feed (electric)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
