➤ Used SPINNER TC 52 MC For Sale | gindumac.com

Show in original language

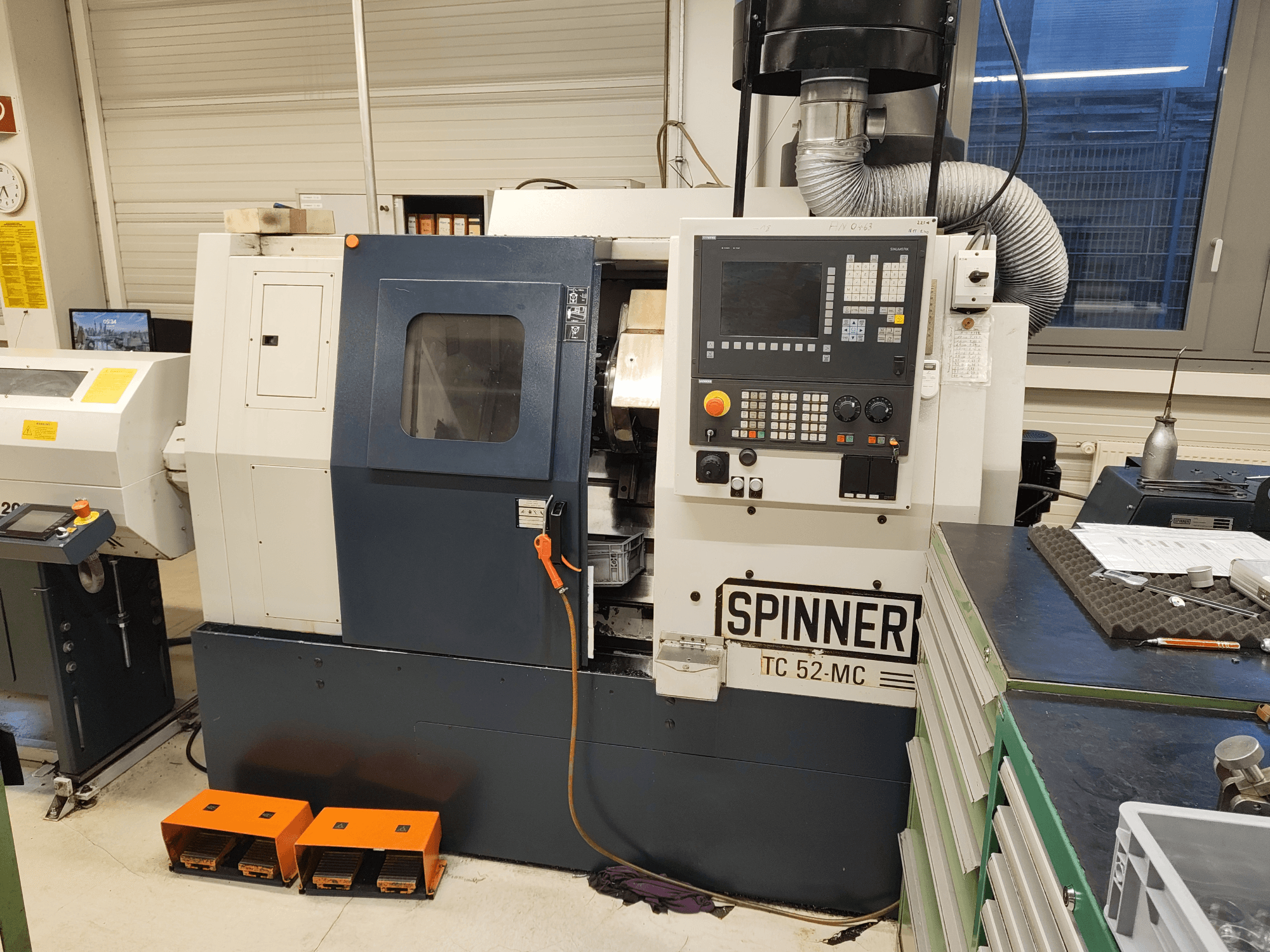

This 3-axis SPINNER TC 52 MC was manufactured in 2007. It features a robust design with optional equipment including a bar feeder, parts catcher, and a turret with driven tools. The machine is equipped with a collet chuck for clamping and a dust extraction system for efficient operation. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 52 MC horizontal turning machine we have for sale. The machine is faulty. The hydraulic pump is no longer building up pressure. The Spinner TC 52 is no longer being repaired and is being sold as not fully functional. Contact us for further details.

Overview

brand: SPINNER
year: 2007
MODEL: TC 52 MC
production hours: 40767
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - SPINNER TC 52 MC

Control Unit

Control Brand: SIEMENS

Dimensions

Machine Height: 1800 mm
Machine Length: 2100 mm
Machine Weight: 2500 kg
Machine Width: 1350 mm

Movement

Number of Axes: 3
X-axis Travel: 200 mm
Z-axis Travel: 570 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Max. Bar Diameter: 52 mm
Max. Workpiece Diameter: 280 mm
Spindle Speed: 5000 RPM
Taper Size: VDI 30
Tool Stations: 12

Additional Information

Number of Live Tools: 12
Live Tool Speed: 6,000 rpm
Live Tool Torque: 23.5 Nm
Rapid Traverse X/Z: 15 / 24 m/min
Maximum Turning Diameter: 280 mm
Maximum Swing Diameter: 400 mm
Distance Between Centers: approx. 550 mm
Main Spindle Nose: A6
Bar Capacity: 52 mm
Main Spindle Torque: 92 Nm
Coolant Tank Capacity: approx. 85 l
Coolant Pressure: 8 bar
Supply Voltage: 3/PE ~ 400 V
Collet Chuck Used for Clamping
Dust Extraction System
Supply Voltage: 3/PE ~ 400 V
Frequency: 50 / 60 Hz
Operating Current (IB): 34 A
Rated Current (IN): 35 A
A collet chuck used for clamping
Turret with driven tools

Optional equipment:

Bar feeder
Parts catcher
Chip conveyor
Tailstock

The machine is faulty. The hydraulic pump is no longer building up pressure.

The Spinner TC 52 is no longer being repaired and is being sold as not fully functional.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
