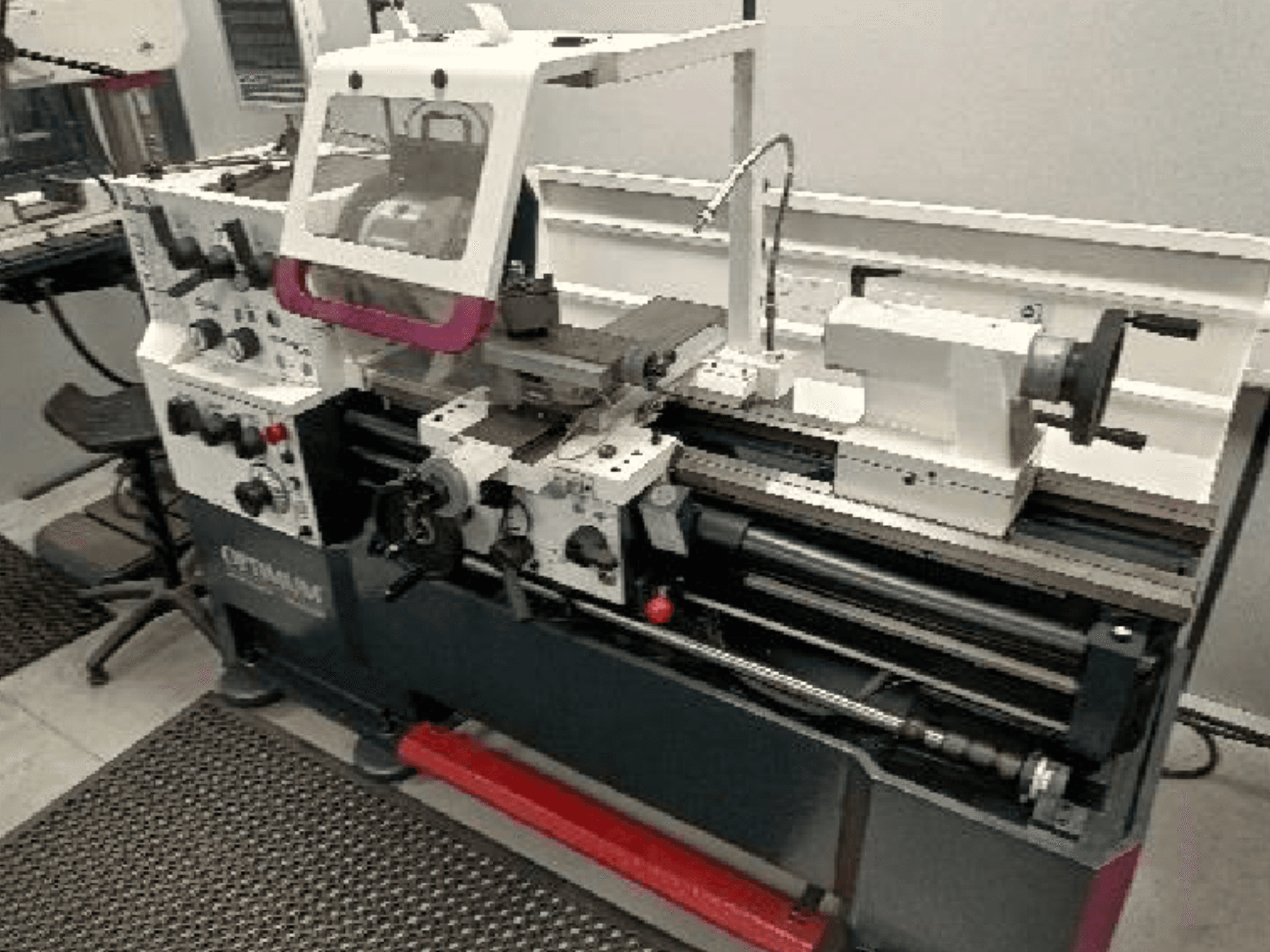

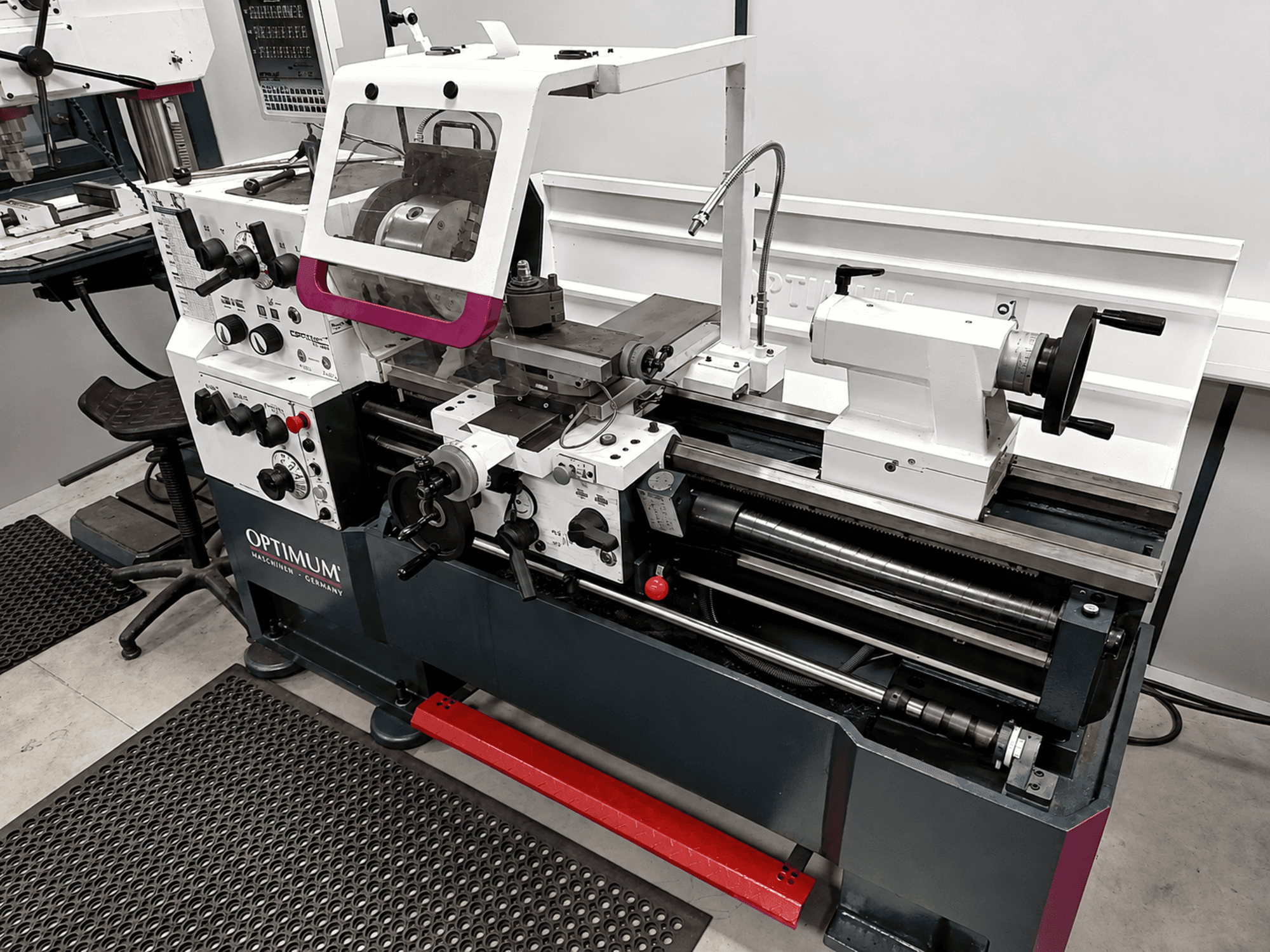

Manual lead screw and feed rod lathe manufactured in 2018. This Optimum TH 4610 features a distance between centers of 1060 mm and a swing over bed of 460 mm. It has a spindle speed range of 25 – 2000 U/min and can handle a maximum workpiece weight of 300 kg. If you are looking to get high-quality turning capabilities, consider the Optimum TH 4610 machine we have for sale. Contact us for further details.
Overview
- brand: Optimum
- year: 2018
- MODEL: TH 4610
- application type: Other Machine Tools
- Location: Germany
- machine type: Machine Tool
Technical Information - Optimum TH 4610
Dimensions
- Machine Height: 1550 mm
- Machine Length: 2215 mm
- Machine Weight: 1720 kg
- Machine Width: 1065 mm
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 2000 RPM
Additional Information
- Machine Type: Manual lead screw and feed rod lathe with digital position indicator
- Distance Between Centers: 1060 mm
- Center Height: 230 mm
- Swing Over Bed: 460 mm
- Swing Over Slide: 270 mm
- Turning Length: 240 mm
- Main Spindle Bore: 58 mm
- Max. Workpiece Weight: 300 kg
- Morse Taper of Main Spindle: MK6 / MT6
- Spindle Speed Range: 25 – 2000 U/min (rpm)
- Cross Slide Travel: 285 mm
- Top Slide Travel: 125 mm
- Quill Diameter: 60 mm
- Quill Travel: 130 mm
- Taper in Quill: MK4 / MT4
- Three-Jaw Chuck Diameter: approx. 200 mm
- Dimensions (L x H x W): 2215 mm x 1550 mm x 1065 mm
- Motor Power: 5.5 kW
- Voltage / Frequency: 400 V / ~50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
