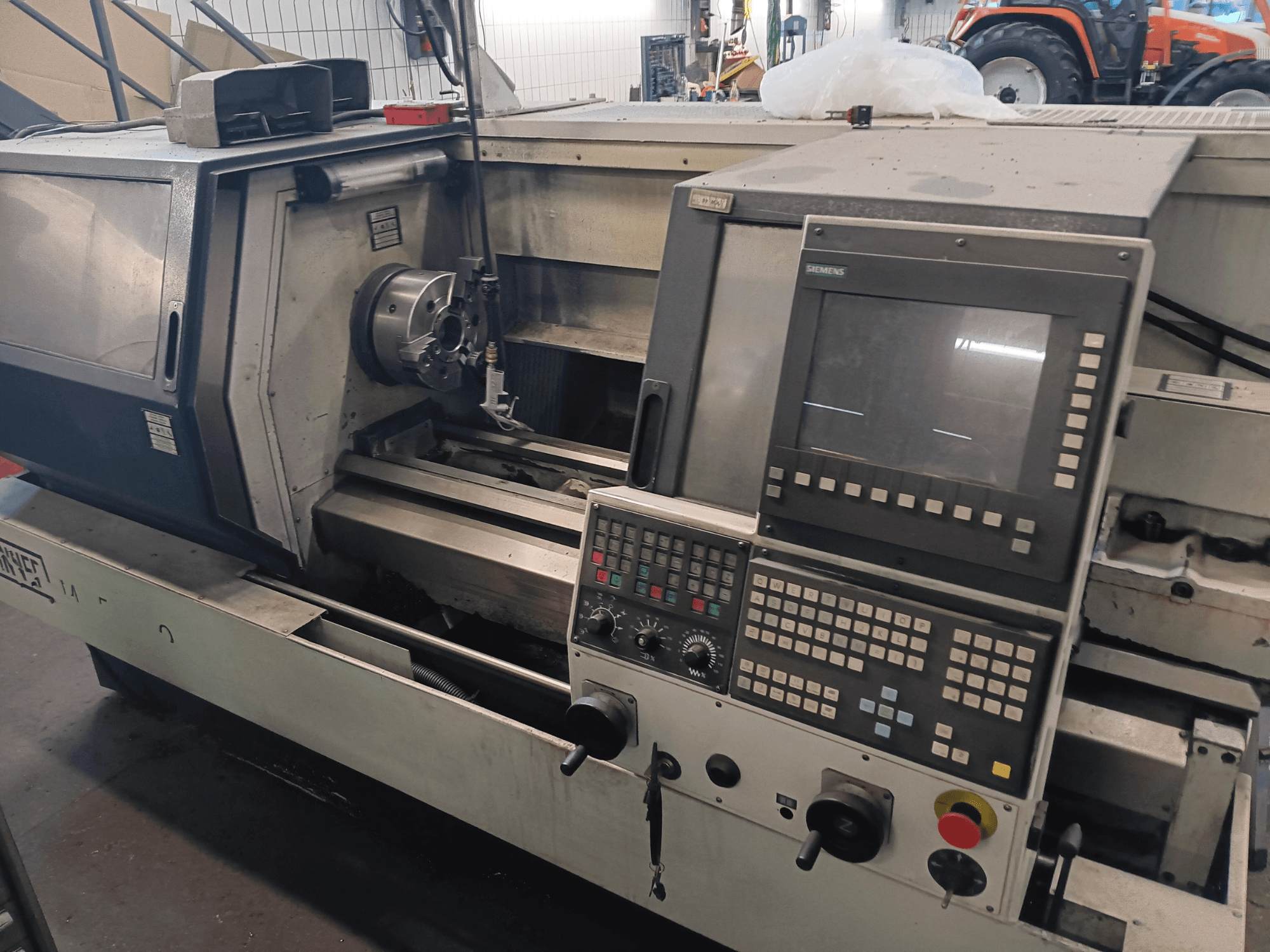

SPINNER - MT 500/1000 ATDE-TUR-SPI-2000-00001

• Machine/Mechanic MT500-1000

• Travel X-axis: 210 mm

• Travel Z-axis (Multifix holder + manual chuck): 930 mm

• Travel Z-axis (Multifix holder + hydr. chuck): 930 mm

• Travel Z-axis (Turret + manual chuck): 930 mm

• Travel Z-axis (Turret + hydr. chuck): 930 mm

• Travel C-axis: 360 degrees

• Spindle clearance 45 mm with hydraulic chuck: 3600 rpm

• Spindle clearance 57 mm with manual chuck: 3600 rpm

• Tool system Haase quick-change holder: 1 tool unit

• Tool system Turret VDI 30: 12 tool units

• Ball screw pitch in X: 5 mm

• Ball screw pitch in Z: 10 mm

• Rapid traverse X: 15000 mm/min

• Rapid traverse Z: 20000 mm/min

• Feed rate X + Z: 0-4000 mm/min

• Feed force X-axis: 1382 daN

• Feed force Z-axis: 609 daN

• Tensile force hollow clamping cylinder: 145 daN/bar

• Manual chuck Ø 200mm: 3 jaws

• Hydraulic chuck Ø 210mm: 3 jaws

• Coolant tank volume: 75 l

• Coolant pump flow rate: 30 l/min

• Coolant pump pressure: 1.4 bar

• Max. positioning scatter: 3 µm

• Max. backlash: 2 µm

• Positioning uncertainty: 2 µm

• Max. circularity error on workpiece: <= 1.5 µm

• Max. flatness deviation: <= 1.5 µm

• Tailstock quill Ø: 80 mm

• Tailstock quill stroke: 120 mm

• Morse taper mount: MT 4

• Quill contact pressure: 27.75 daN/bar

• Length x Width x Height: 2.7 x 1.6 x 1.8 m

• Installation area: 4.3 m2

• Weight: 2300 kg

• Control system: Siemens 810D

• Operating voltage: 400 V

• Mains frequency: 50/60 Hz

• Control voltage: 24 DC

• Connected load: 16 KW

• Electrical connection: TN / TT / IT

• Spindle S1/S6 operation: 9/11 KW

• Feed motors X/Z: 3.5 KW

• Hydraulic components: Parker

• Control valves: ISO1

• Oil mist lubrication filling quantity: 50 ml

• Max. operating pressure: 30 bar

• Min. operating pressure: 6 bar

• Max. spindle torque: 115/153 Nm

• Control Unit: Siemens (visible in interface)

Additional equipment

• Benz high-speed spindle (up to 25,000 rpm)

• Vice

• Chucks

• Cutters

• Plates

• Tap holders
