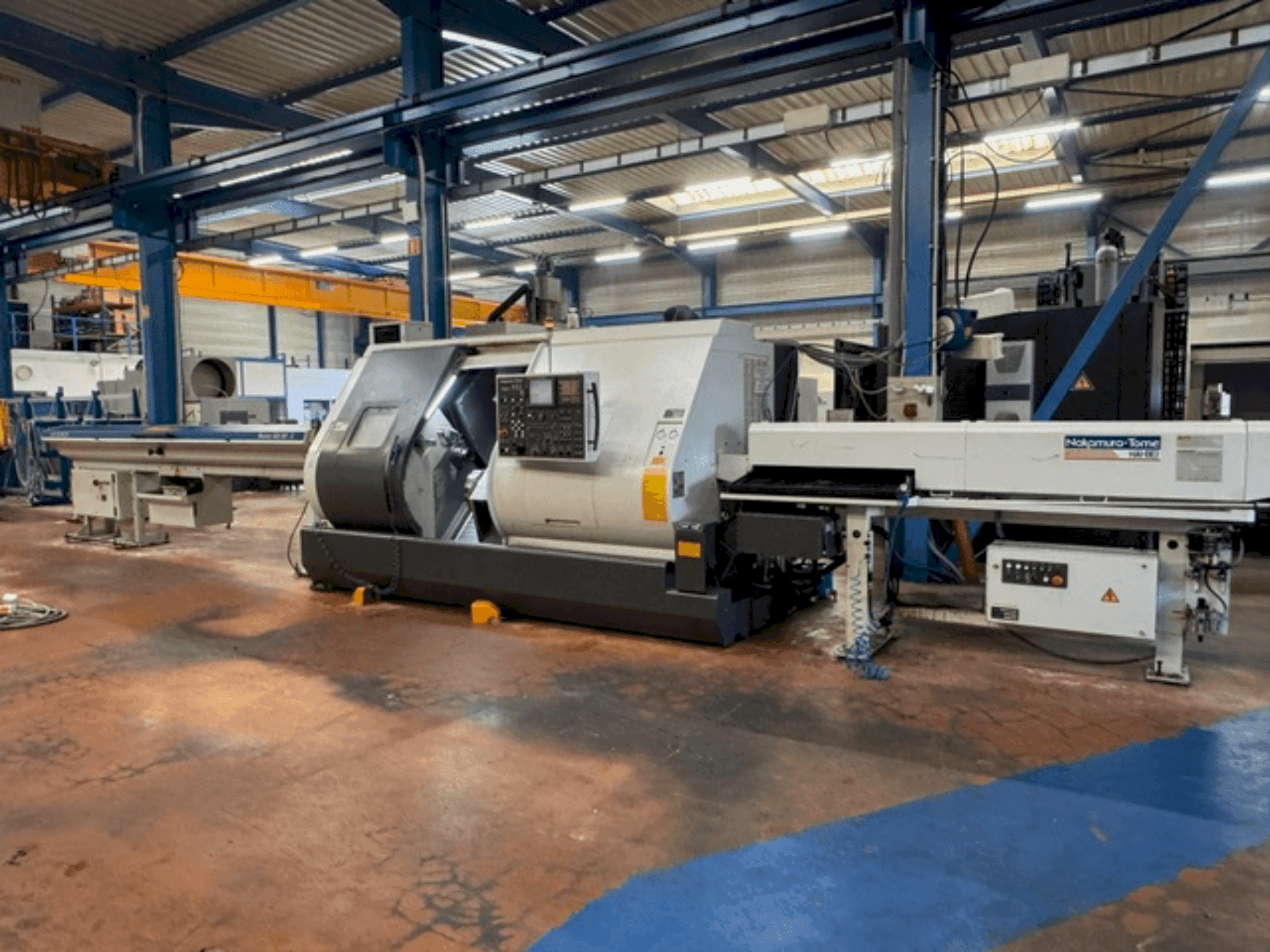

NAKAMURA-TOME - Super NTJFR-TUR-NAK-2009-00001

Additional equipment

• CNC: Fanuc 18i-TB
• Interfaces: Ethernet, RS232
• 3-Color Status Light
• High-Pressure Spraying
• IEMCA MASTER 880 MPE Bar Feeder
• NAKAMURA TOME HAI-BEI Bar Re-Feeder
• Rotating Tool Holders: 12
• 1 Collet Chuck + Collets
• 1 Hydraulic Chuck

Machine Benefits

Technical Machine Benefits

• Max. Bar diameter: 65 mm
• C axis indexing accuracy: 0. 001°
• Spindle nose for cnc lathe: a2-6
• The counter spindle features a cnc lathe spindle nose a2-5, with 11 kw power, 5000 rpm speed, a maximum bar diameter of 51 mm, c axis indexing accuracy of 0. 001°, a stroke of 760 mm, and a spindle-to-counter-spindle distance of 210/970 mm.
• The upper turret has 24 positions, including 12 motorized ones, with a rotating tool speed of 6000 rpm, 5. 5 kw of power, b axis travel of ±91°, and indexing accuracy of 0. 001°.
• The lower right turret features 24 positions, 12 of which are motorized, with x and z travel of 167. 5 mm and 685 mm respectively, a rotating tool speed of 6000 rpm, and a rotating tool power of 5. 5 kw.
• Power supply voltage: 400 v

Extra Information

Machine still under power
