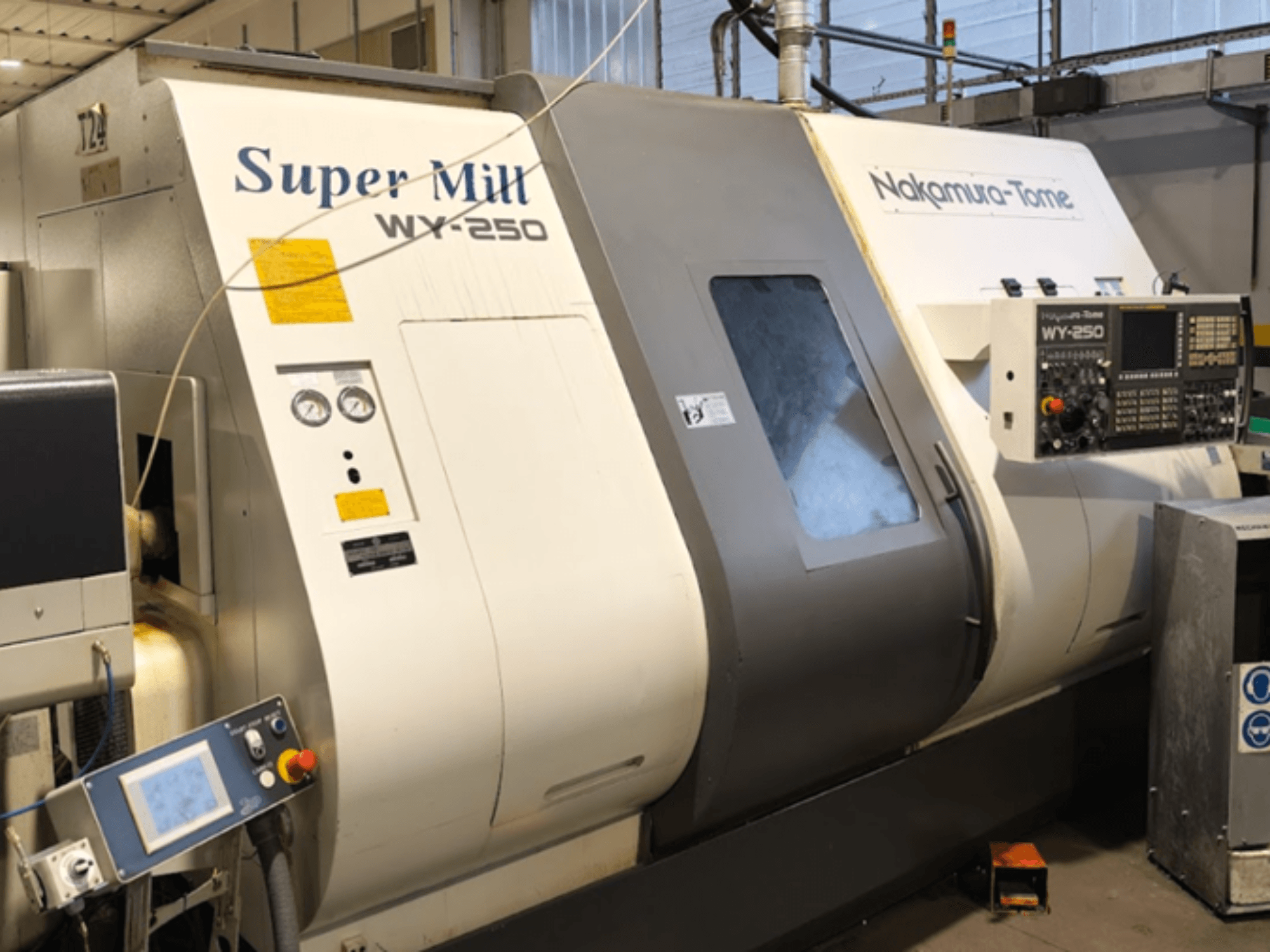

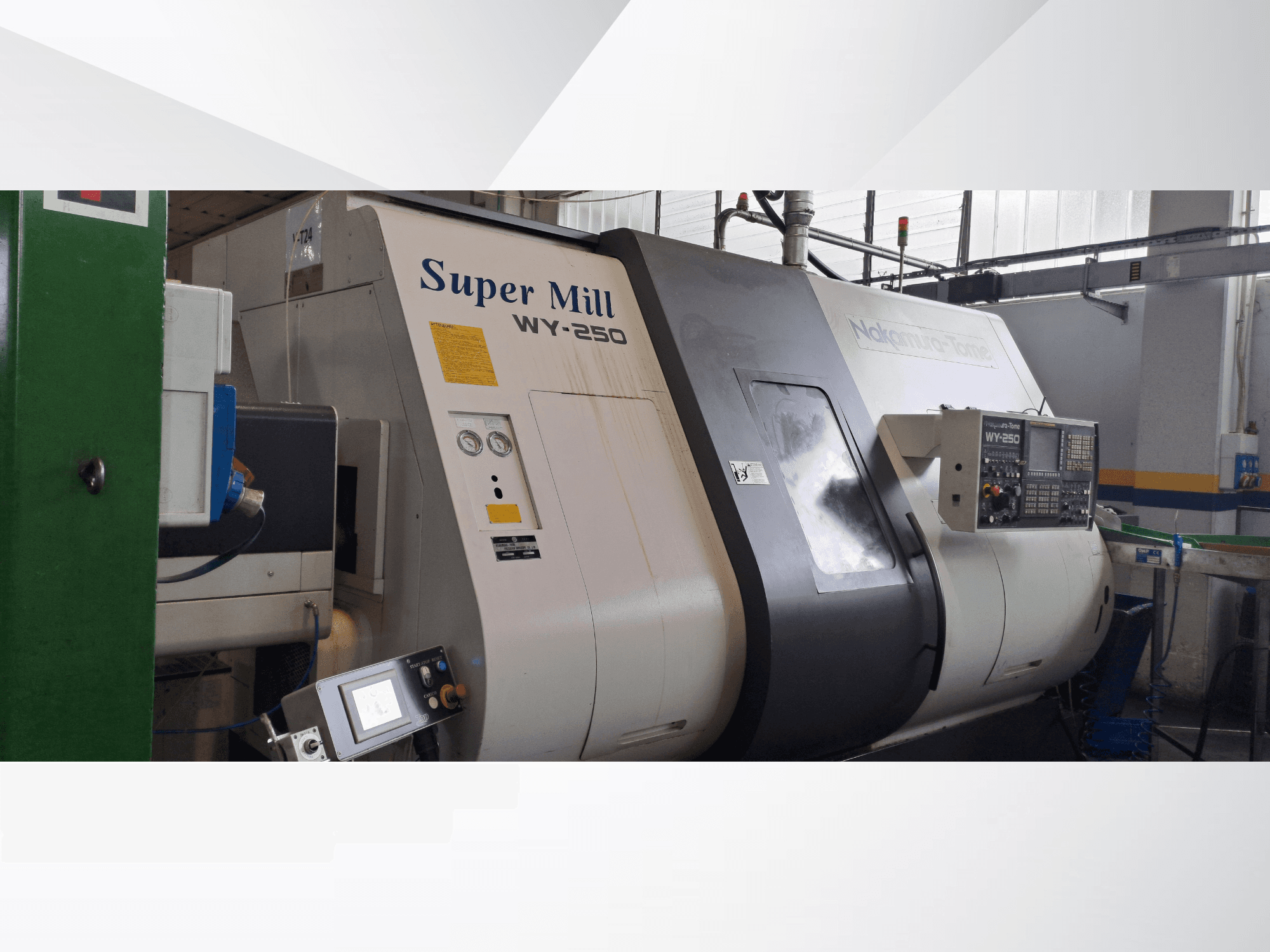

NAKAMURA-TOME - WY 250IT-TUR-NAK-2007-00002

• Travels:

  • X1: 160.5 mm

  • X2: 165 mm

  • Z1/Z2: 580 mm

  • Y1: +50 / -50 mm

  • Y2: +20 / -50 mm

• Included tooling:

  • 4x external tool holders

  • 4x tool holders for simultaneous mounting of 2 opposite tools

  • 6x boring bar holders

• Driven toolholders (HEIMATEC):

  • 4x radial

  • 4x axial

• Collet holders (Bellegrandi):

  • Main spindle: MSCNT70-A6” for BA & BD collets size 70, complete with related cups

  • Counter spindle: MSCTNR70-A5” for BA collets size 70, complete with spring ejector

Additional equipment

• IEMCA Master 880/33/P bar feeder (2003), S/N: 0200347S03

  • Application: Automatic bar feeder for CNC lathes

  • Capacity:

    • Max bar length: 3300 mm (to be confirmed)

    • Max bar diameter: up to Ø80 mm (model family reference)

    • Guide channels: Ø65 mm included; Ø70 mm currently installed and can be supplied with the machine

  • Features: Automatic loading/feeding, synchronization with lathe cycle, compatible with spindle liner/guide channel systems, heavy-duty frame

  • Note: Sold together with the Nakamura Tome WY-250; some accessories/guide channels may belong to the lathe setup

• Complete set of hand jaws (“Manine”) for parts unloader (parts unloader itself not specified)

Machine Condition / Technical Status- IMPORTANT

The machine is currently being sold in its present technical condition and the seller will NOT carry out the repairs before sale.

Main known issues / condition points:

• Lower turret driven tooling function not working correctly

• Air/oil lubrication system issues detected

• Presence of rust inside the lower turret gearbox

• Upper turret gearbox found filled with NBU15 grease although the system should operate with air/oil lubrication

• Z1 axis linear guides/slides require replacement

• Z2 axis linear guides/slides require replacement

• Geometry deviations detected during machine inspection

• Various spindle/brake/hydraulic cylinder run-out deviations measured

• Several bearings, ball screws, seals, guide rollers, belts, lubrication components and wipers require replacement according to the attached spare parts list

Inspection highlights:

• Machine geometry and spindle parallelism were measured and documented

• Run-out values were detected on both spindles and hydraulic chuck systems

• Multiple axis lubrication and protection components require maintenance/replacement

• Detailed spare parts list available

Included documentation:

• Technical inspection report

• Geometry verification report

• Spare parts/replacement list

• Photos of damaged/worn components

The machine remains a highly equipped Nakamura Tome WY-250 Super Mill platform, but prospective buyers should consider the required repair and maintenance work when evaluating the machine. Technical inspection and spare parts documentation available upon request.
