HAAS - ST-15Y FR-TUR-HAA-2020-00001

£ 54,578
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

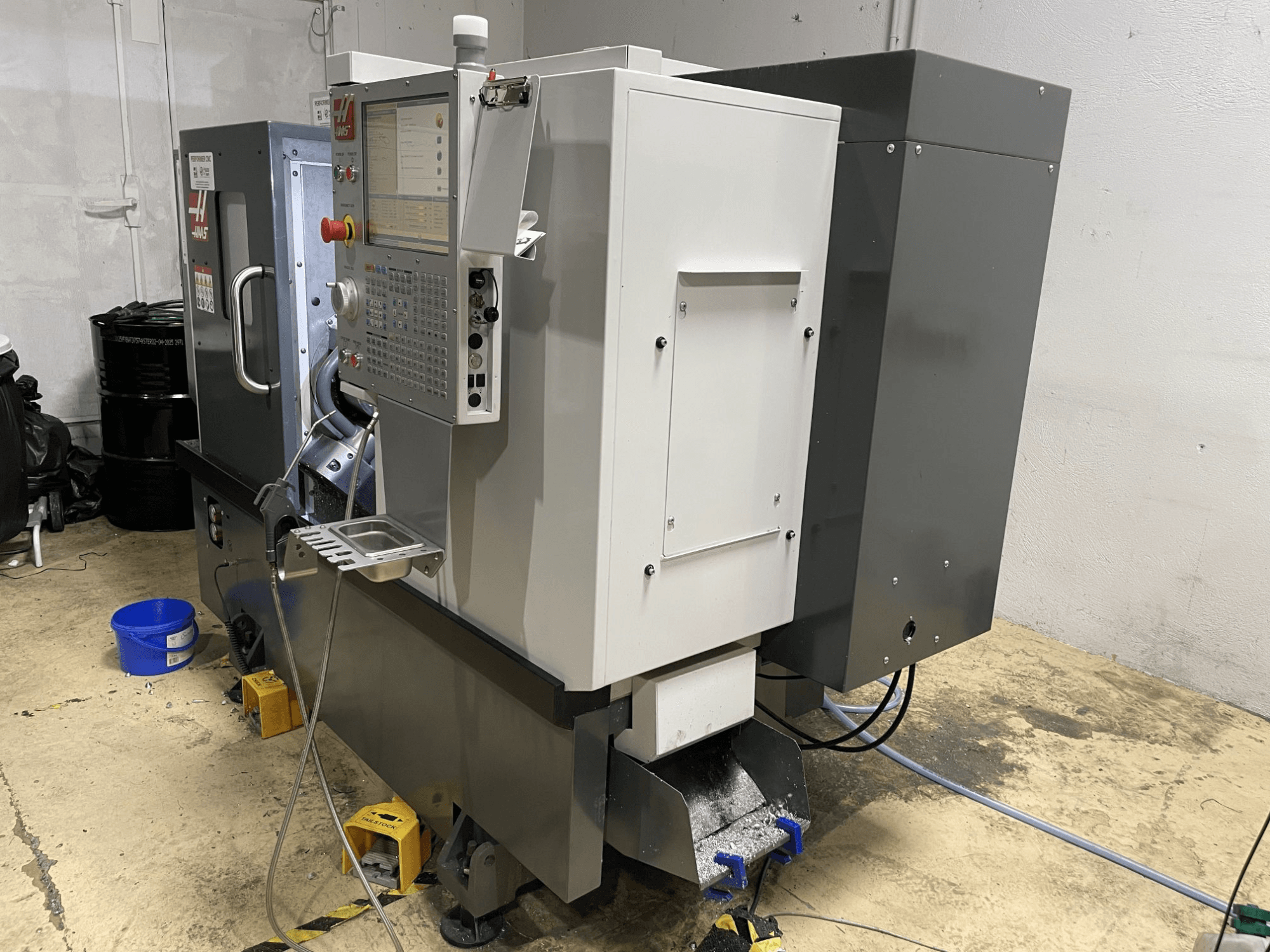

This 4-axis HAAS ST-15Y was manufactured in 2020. It features a maximum spindle speed of 4000 rpm and a spindle power of 14.9 kW. The machine has a workpiece diameter over the bed of 419 mm and a maximum cutting length of 406 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-15Y horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2020
  • MODEL: ST-15Y
  • application type: Turning
  • Location: France
  • machine type: Horizontal Turning Machine

Technical Information - HAAS ST-15Y

Movement

  • Number of Axes: 4
  • X-axis Travel: 200 mm
  • Y-axis Travel: 102 mm
  • Z-axis Travel: 406 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: Yes
  • Spindle Power: 14.9 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Capacities

    • Chuck size: 210 mm

    • Max part swing: 419 mm

    • Max cutting diameter (BOT or VDI turret): 305 mm

    • Max cutting length: 406 mm

    • Bar capacity: 64 mm

  • Feedrates (rapid)

    • X-axis: 12.0 m/min

    • Y-axis: 12.0 m/min

    • Z-axis: 30.5 m/min

  • Axis motors (max thrust)

    • X-axis: 10,676 N

    • Y-axis: 10,231 N

    • Z-axis: 16,458 N

  • Spindle

    • Spindle nose: A2-6

    • Spindle bore: 88.9 mm

    • Max spindle torque: 203 Nm at 500 rpm

  • Main spindle C-axis

    • C-axis power: 3.7 kW

    • Max speed: 60 rpm

    • Positioning accuracy: ±0.02°

    • Brake clamp force: 4448 N

    • Brake diameter: 366 mm

    • Brake holding torque: 190 Nm

    • Control: Interpolated motion and positioning

  • Turret and tooling

    • Turret: 12-station hybrid (6 VDI / 6 BOT)

    • Tool taper: VDI40

    • Live/rotating tools: Yes, max speed 4000 rpm

    • Boring bar rear clearance: 19.1 mm

    • Tool stations: 12

  • Tailstock

    • Type: Hydraulic tailstock

    • Quill travel: 95 mm

    • Manual body positioning: 508 mm

    • Thrust range: 623–5027 N

  • Coolant and air

    • Coolant capacity: 114 L

    • Air required: 113 L/min at 6.9 bar

  • Electrical

    • Input AC voltage (3-phase high): 440 VAC

    • Full load amps (3-phase high): 20 A

    • Full load amps (3-phase low): 40 A

  • Configuration notes

    • C-axis: Yes

    • Y-axis: Yes

    • Driven tools: Yes

    • Counter spindle: No

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
