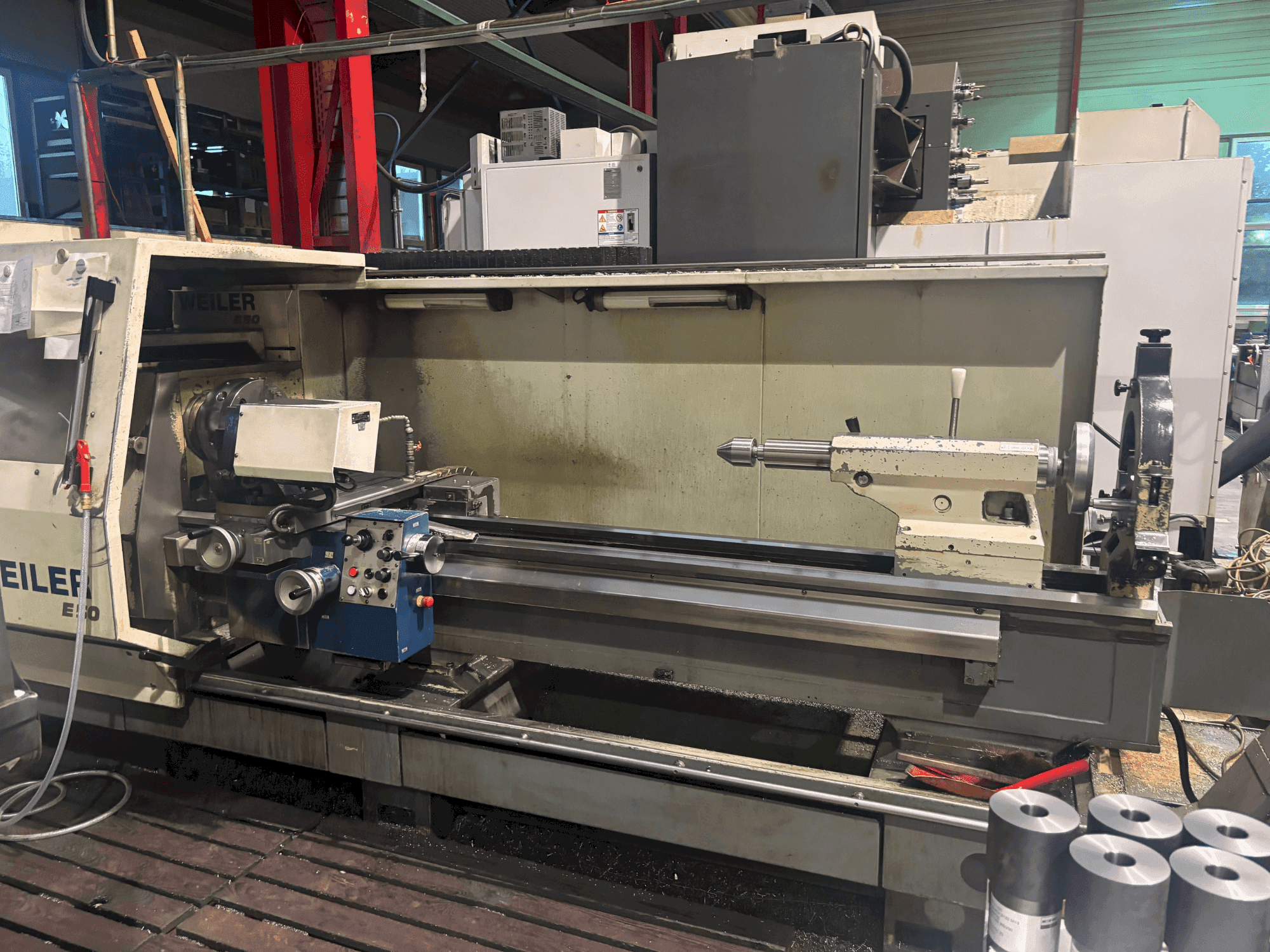

Weiler - E50AT-TUR-WEI-2009-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Drive power (60% / 100% ed): 20/17 kw
  • - Max. Torque at the turning spindle: 1600 nm
  • - Gear stage i: 1-625 min-¹
  • - Gear stage ii: 4-2500 min-¹
  • - Bed width: 350 mm
  • - Quill diameter: 80 mm
  • - Quill stroke: 200 mm
  • - Inner taper of the quill: mk 5
  • - Turning tool cross-section (height/width): 32 x 25 mm
  • - Spindle head according to din 55027: size 8
• Qualitative Machine Benefits:
  • - Spindle diameter in the front bearing: 120 mm
  • - Spindle bore: 83 mm
  • - Inner taper of the main spindle: metric 90
  • - Feed range longitudinal and planar: 0-20 mm/rev
  • - Feed force longitudinal: 10000 n
  • - Feed force planar: 7000 n
  • - Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min
  • - Metric threads: 0. 1-400 mm
  • - Inch threads: 1/4" - 56 g/1"
  • - Module threads: 0. 125 - 28

Extra information

• - Machine still under power/ DP threads: 1 - 224/ Fixed steady rest clamping range: 12-150 mm / 120-270 mm/ Moving steady rest clamping range: 12-125 mm/ The machine has been working effectively in 1-shift operation since it was purchased/ The chuck incl. hard & several sets of soft jaws and the tailstock can be supplied as accessories/ Any associated tools could be discussed in the event of an order/ The footprint of the machine is 2.8m x 5.2m, the 2.8m already includes 600mm as a workstation/ All manuals are available.
