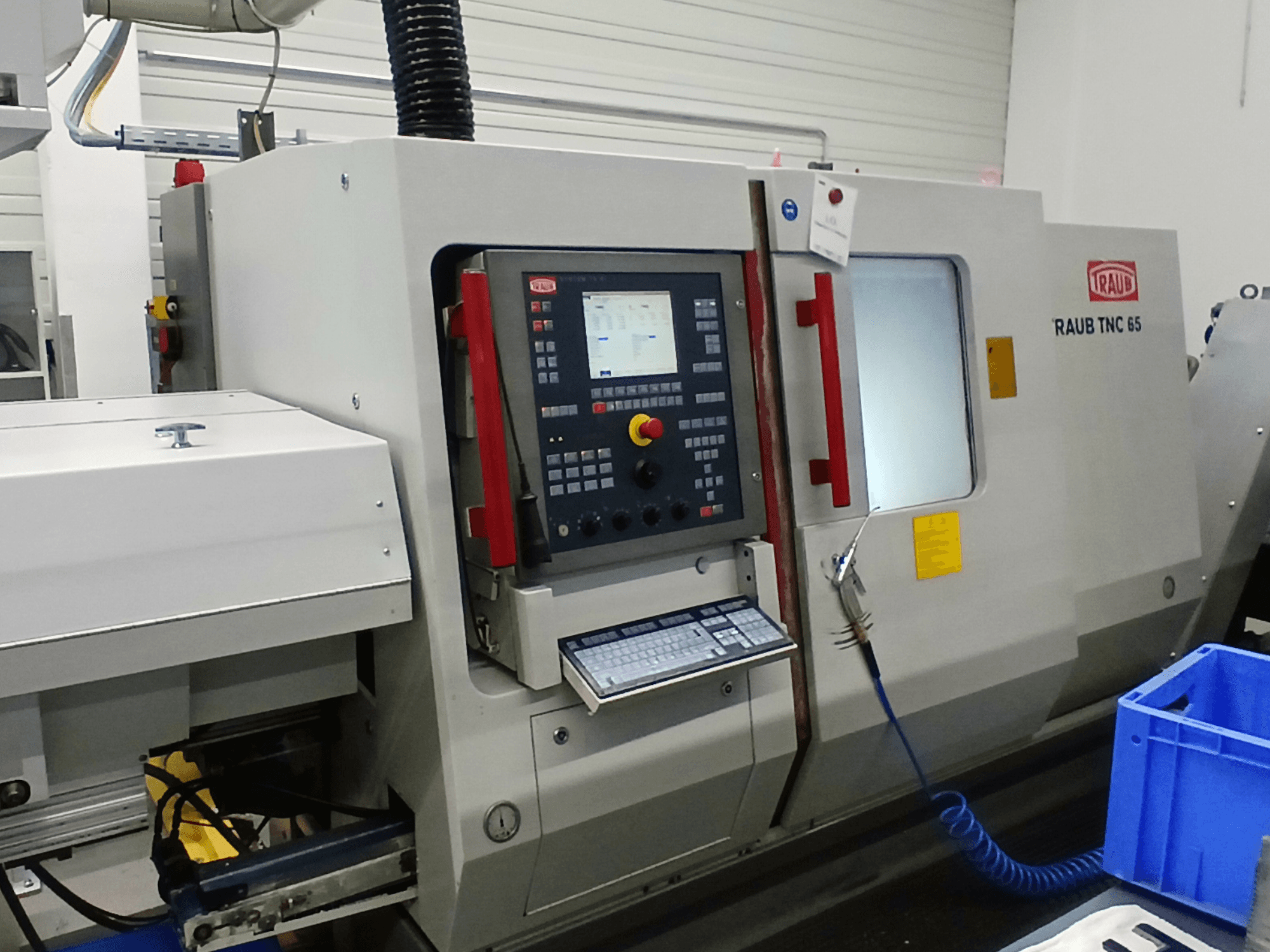

TRAUB - TNC 65 DGYDE-TUR-TRA-2009-00002

• Control system: TX8i with 64-bit RISC high-performance processor and additional PLC high-performance processor, integrated PC
• TX8i control with TFT color flat screen and electronic handwheel
• Multi-range transformer for 460V / 400V / 380V / 220V / 200V, 50 Hz
• Machine operating voltage: 400V 50 Hz
• Accessories operating voltage: 230V 50 Hz
• Control voltage: 24V DC
• Designed for machining metals and plastics with defined cutting edge
• Maximum turning length: 450 mm
• Main spindle bore: 65 mm
• Spindle through-hole: 65 mm
• Maximum clamping diameter depending on collet system: 60 mm
• Front bearing diameter: 66 mm
• Standard collet: DIN 6343
• Maximum clamping diameter: 65 mm
• Main spindle torque: 230 Nm
• Main spindle C-axis numerically controlled
• X-axis rapid traverse/feed speed: 7.5 m/min
• X-axis feed force at 100% duty cycle: 5000 N
• X-axis ball screw: 32×5 mm
• Z-axis rapid traverse/feed speed: 10 m/min
• Z-axis feed force at 100% duty cycle: 8000 N
• Z-axis ball screw: 32×10 mm
• Y-axis rapid traverse/feed speed: 3 m/min
• Y-axis travel: ±35 mm
• Y-axis feed force at 100% duty cycle: 8000 N
• Y-axis ball screw: 25×5 mm
• Tool stations: 10 (14 optional)
• Tool holder size: Ø30×55 mm
• Alternative tool holder size: Ø25×48 mm
• Tool shank size: 20×20 mm
• Alternative tool shank size: 16×16 mm
• Counter spindle maximum speed: 4000 rpm
• Counter spindle maximum clamping diameter: 65 mm
• Counter spindle power: 11 kW
• Counter spindle constant power range: 1:8
• Counter spindle torque: 210 Nm
• Counter spindle rapid traverse/feed speed: 10 m/min
• Counter spindle travel: 520 mm
• Counter spindle feed force at 100% duty cycle: 6000 N
• Counter spindle ball screw: 32×20 mm
• Counter spindle C-axis with speed-synchronous control
• Tool drive turret 1: 3.1 kW, 4000 rpm
• Tool drive turret 2: 3.1 kW, 4000 rpm
• Tool monitoring TX8i with wear and breakage control via axis motor monitoring
• Thread cutting without compensating chuck
• TRAUB Polyform software for milling programming with C-axis (front, longitudinal, cylindrical surface)
• Ethernet network connection preparation with RJ45 interface
• Z/V-axis counter spindle software with defined end position (face transfer)
• Hydraulic system pressure: 70 bar
• Hydraulic tank capacity: 70 l
• Coolant pump pressure: 12 bar
• Coolant tank capacity with chip conveyor: 435 l
• Electrical connected load: 39 kW
• Machine weight with counter spindle and electrical cabinet: 5200 kg
• Noise level: 73 dB(A)
• Permissible ambient temperature: 5–40 °C
• Maximum relative humidity at 40 °C: 50 %
• Work area turret section: 450 mm
• Work area to counter spindle: 520 mm
• Total work area: 728 mm
• Minimum distance F to counter spindle contour: 127 mm

• The machine has a Y-axis on turret 1, but not on turret 2

Additional equipment

• Workpiece unloading device with gripper in turret 2
• Hinged belt chip conveyor, discharge height 1200 mm
• High-pressure coolant system with programmable pressure stages 20 / 5 bar
• Preparation for extraction and filter system, connection Ø200 mm, 400V socket
• Bar feeder interface preparation DNH 61
