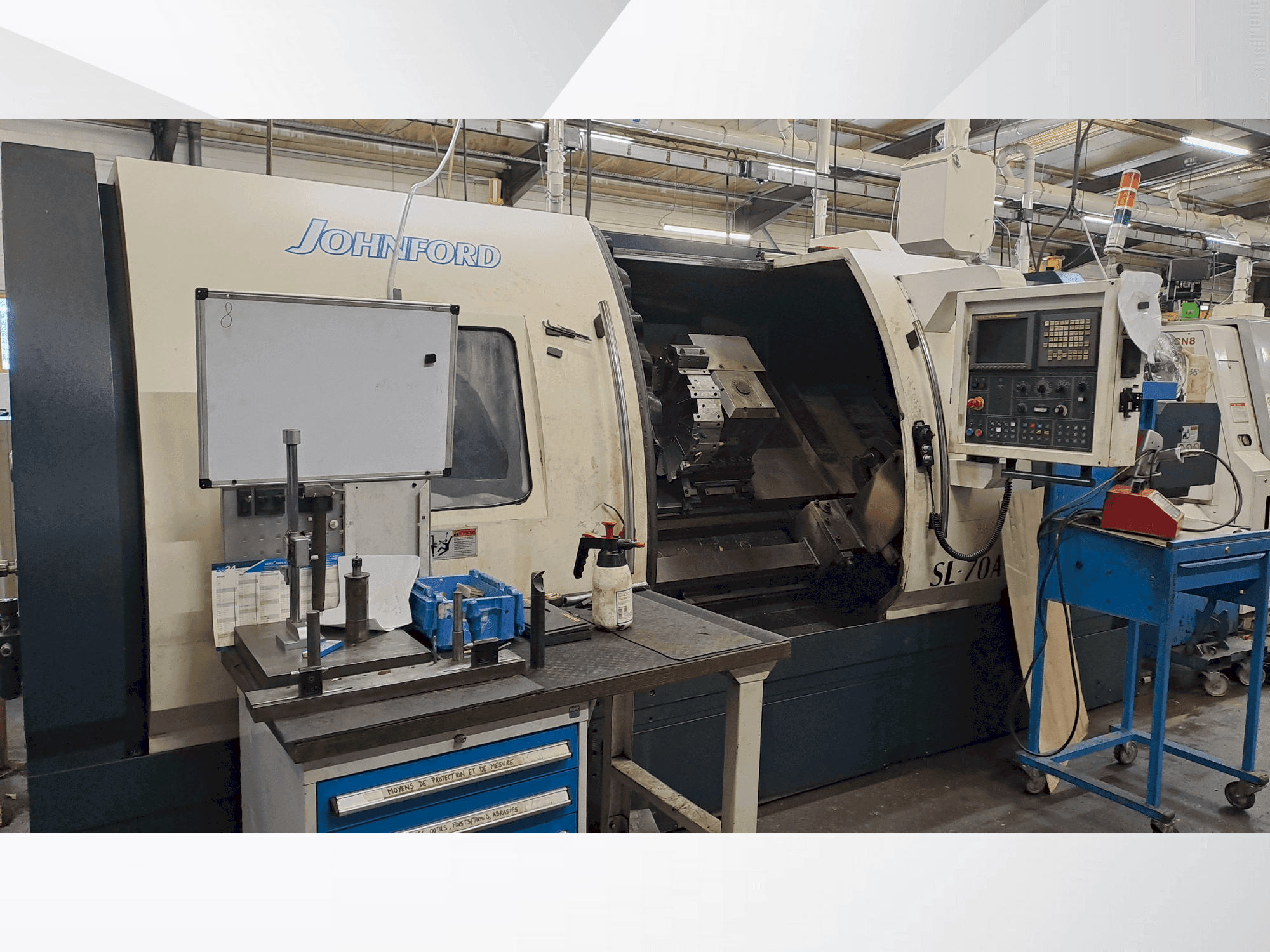

This Johnford SL-70A was manufactured in 2006. A robust horizontal turning machine featuring a swing over bed of 700mm and a swing over cross slide of 540mm. It has a spindle bore of 115mm and a bar capacity ranging from 91 to 102mm, suitable for diverse turning tasks. Consider the opportunity to buy this Johnford SL-70A horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Johnford
- year: 2006
- MODEL: SL-70A
- application type: Turning
- Location: Taiwan
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Johnford SL-70A
General Data
- Measurements width: 2500 MM
- Measurements depth: 5485 MM
- Measurements height: 2200 MM
- Machine weight: 14000 KG
Control Unit
- Brand: FANUC
Main drive
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 26 kW
Movement
- X-AXIS Movement: 295 MM
- X-AXIS Rapid traverse: 12 m/min
- Z-AXIS Movement: 1550 MM
- Z-AXIS Rapid traverse: 15 m/min
Additional Information
- Technical Machine Benefits:
- - Swing over bed: 700 mm
- - Swing over cross slide: 540 mm
- - Chuck size: 12"
- - Bar capacity: 91 to 102 mm
- - Number of tools: 12
- - Tailstock travel: 1200 mm
- - Tailstock quill travel: 125 mm
- - Tailstock quill diameter: 125 mm
- - Tailstock spindle taper: mt#5
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
