FORMAT4 Profit H22

Photo Gallery

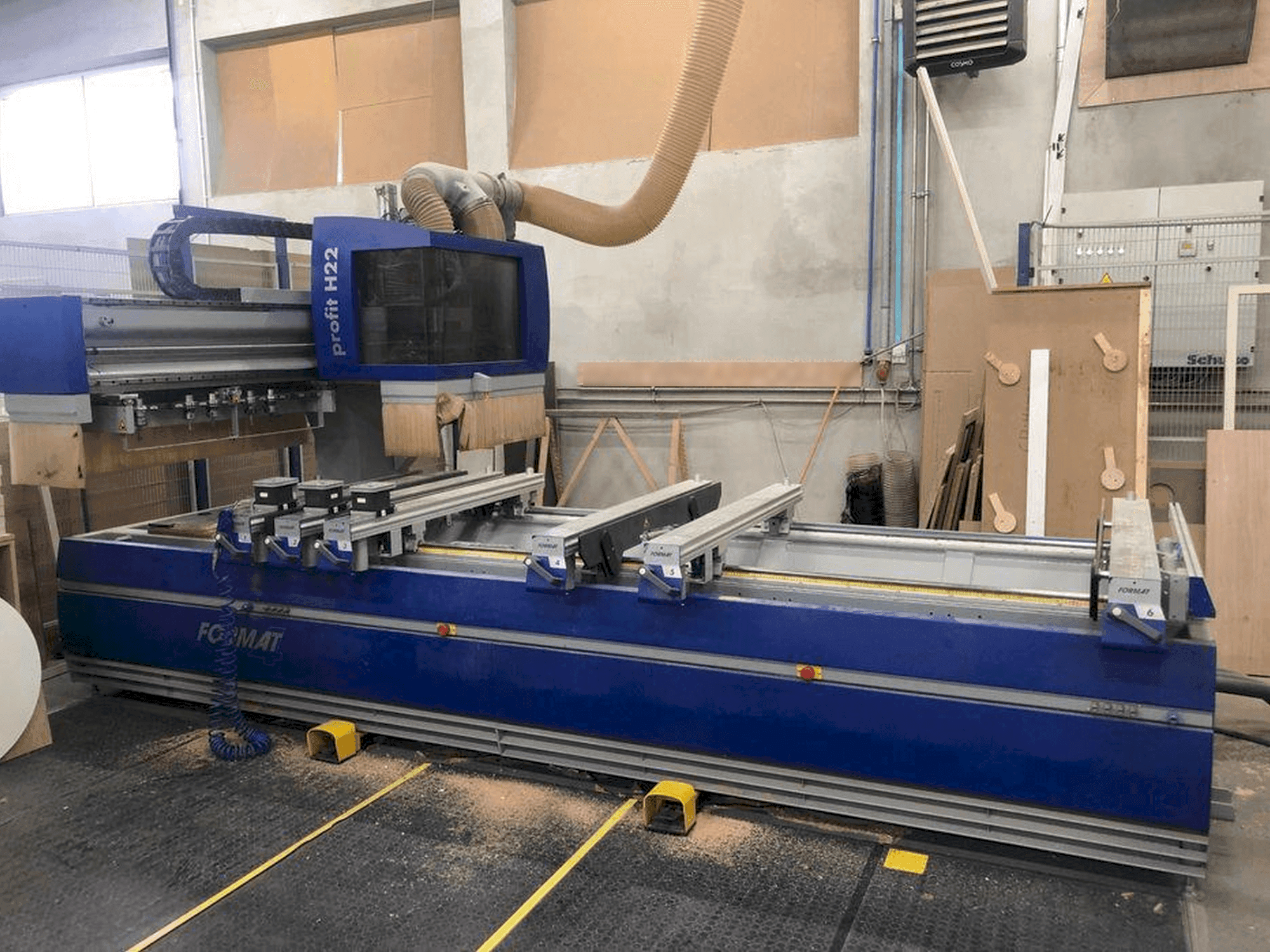

FORMAT4 - Profit H22PL-CNC-FOR-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used FORMAT4 Profit H22 - 2010 - For Sale | gindumac.com

Show in original language

This 3-axis FORMAT4 Profit H22 was manufactured in 2010. A CNC Wood Machining Centre designed for versatile woodworking applications. Consider the opportunity to buy this FORMAT4 Profit H22 CNC Wood Machining Centre. Contact us for more information.

Overview

brand: FORMAT4
year: 2010
MODEL: Profit H22
application type: CNC Wood Machining
Location: Poland
machine type: CNC Wood Machining Centre

Technical Information - FORMAT4 Profit H22

Movement

Number of Axes: 3
X-axis Travel: 3050 mm
Y-axis Travel: 1360 mm
Z-axis Travel: 150 mm

Additional Information

Additional equipment

Dual Form Lifting Station // Dual Pickup Station For Large Diameter Tools (Up To 270 mm)
6 Workpiece Supports (Length 1320 mm)
X Axis Area Limitation With 2 Pneumatic Cylinders (Left/Right)
12 Fast-Positioning Vacuum Pods (140 x 115 x 100 mm)
8 Narrow Vacuum Cups (125 x 115 x 100 mm)
10 Stop Cylinders For Workpiece Positioning
Laser Positioning System
Mobile Control Panel
Vacuum Pump
Three-Part Safety Mat For Pendulum Operation

Machine Benefits

Technical Machine Benefits

The machine has been regularly maintained and always remained in full working condition.
Speed control: stepless

Extra Information

Electrical Specifications Input Voltage: 400 V Power Type: Three-Phase Drilling Head Total Spindles: 20 Vertical Spindles Count: 14 Pitch: 32 mm Layout: 9 In X Axis, 5 In Y Axis Individually Selectable: Yes Speed: Up To 6000 RPM Horizontal Spindles Count: 6 Pitch: 32 mm Layout: 4 In X Axis, 2 In Y Axis Individually Selectable: Yes Speed: Up To 6000 RPM Grooving Saw Axis: X Max Diameter: 120 mm Speed Control: Inverter-Controlled, Stepless Max Speed: 7500 RPM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
