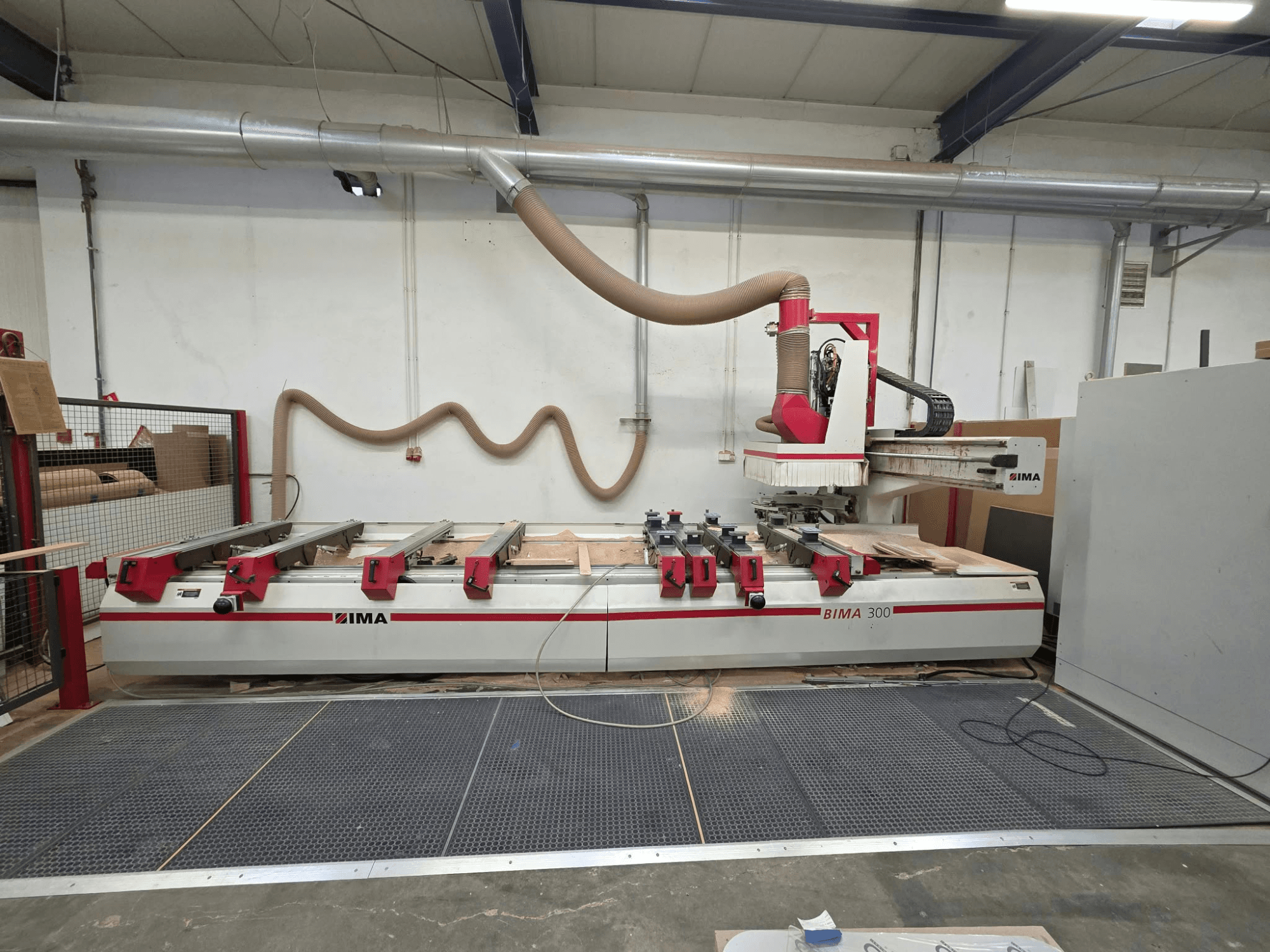

IMA - BIMA 300PL-CNC-IMA-2005-00002

Working area

• X-axis machining range: 4300 mm (4600 mm per manual; to be confirmed)

• Y-axis machining range with main spindle and Ø20 mm tool: 1400 mm

• Y-axis machining range with drilling unit (all vertical spindles): 1100 mm

• Maximum workpiece height above vacuum cup surface: 125 mm

• Maximum workpiece thickness: Depending on equipment and application

• Working height: approx. 950 mm

• Two-zone working area without pendulum machining: 2 × 2050 mm; central clearance: 200 mm

• Two-zone working area with pendulum machining: 2 × 1750 mm; central clearance: 800 mm

Main spindle

• Tool interface: HSK-F63

• Taper diameter: 38 mm

• Automatic tool clamping (clamping force: 11,000 N; unclamping force: 20,400 N)

• Maximum tool weight: 6 kg

• Rotation direction: Programmable CW/CCW

• Drive: Three-phase motor with frequency inverter

• Lubrication: Factory-lubricated

• Cooling: Air-cooled

• Integrated CNC-controlled rotary axis for aggregate positioning through 360°, with torque support and pneumatic connection

Axis speeds

• Rapid traverse X/Y: 60 m/min

• Rapid traverse Z: 30 m/min

Vacuum, extraction and compressed air

• Required compressed air pressure: 7 bar

• Extraction connection diameter: 250 mm

• Required extraction air velocity: 28 m/s

• Required extraction airflow: 4,950 m³/h

• Vacuum pump capacity: 90 m³/h

Additional equipment

• 90° angle drilling aggregate

• 3x HSK tool holders
