➤ Used SCM Record 125 N - 2007 - For Sale | gindumac.com

Show in original language

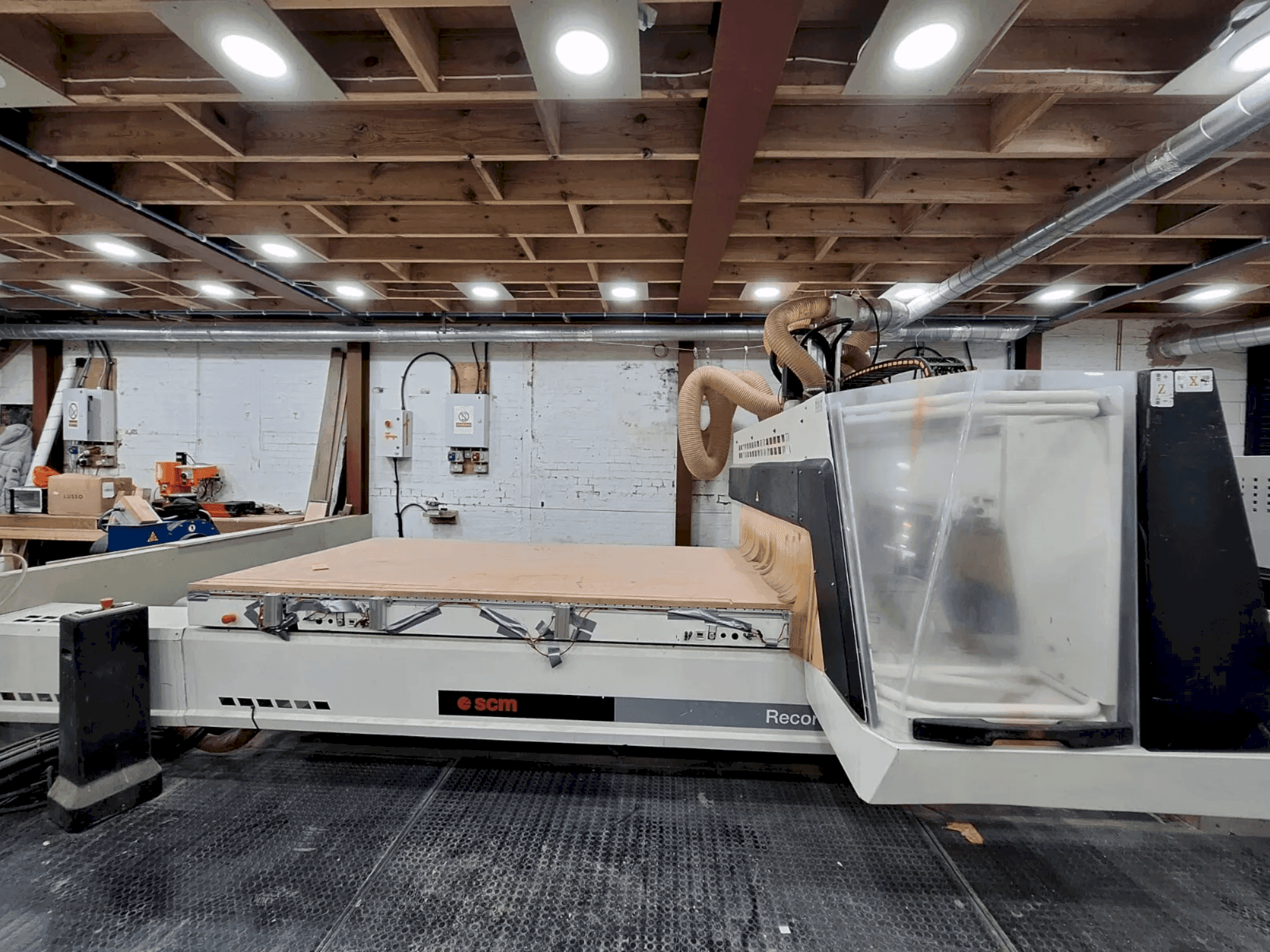

This 3-axis SCM Record 125 N CNC Wood Machining Centre was manufactured in 2007. It features a robust 7.5 kW electrospindle reaching up to 18,000 rpm, and an automatic tool changer with 8 positions. The working area extends to 3400 x 1720 x 400 mm, supported by a vacuum pump of 90 m³/h. If you are looking to get high-quality milling capabilities, consider the SCM Record 125 N machine we have for sale. Contact us for more information.

Overview

brand: SCM
year: 2007
MODEL: Record 125 N
application type: CNC Wood Machining
Location: United Kingdom
machine type: CNC Wood Machining Centre

Technical Information - SCM Record 125 N

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3400 mm
X-AXIS Rapid traverse: 80 m/min
Y-AXIS Movement: 1720 mm
Y-AXIS Rapid traverse: 55 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 25 m/min

Additional Information

Additional equipment

Vacuum Pump: 90 m³/h

Machine Benefits

Technical Machine Benefits

Work table (between stops): 3100 mm
Min/max spindle–work table nose distance: 96 / 496 mm
Maximum piece width in "pendulum" mode: 1090 mm
Real piece feed play (play): 335 mm (310 mm usable)
Work table access in pendulum mode (right/left): 550 / 830 mm
Tool socket: hsk 63
Tool changeover: automatic, with 8 positions

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
