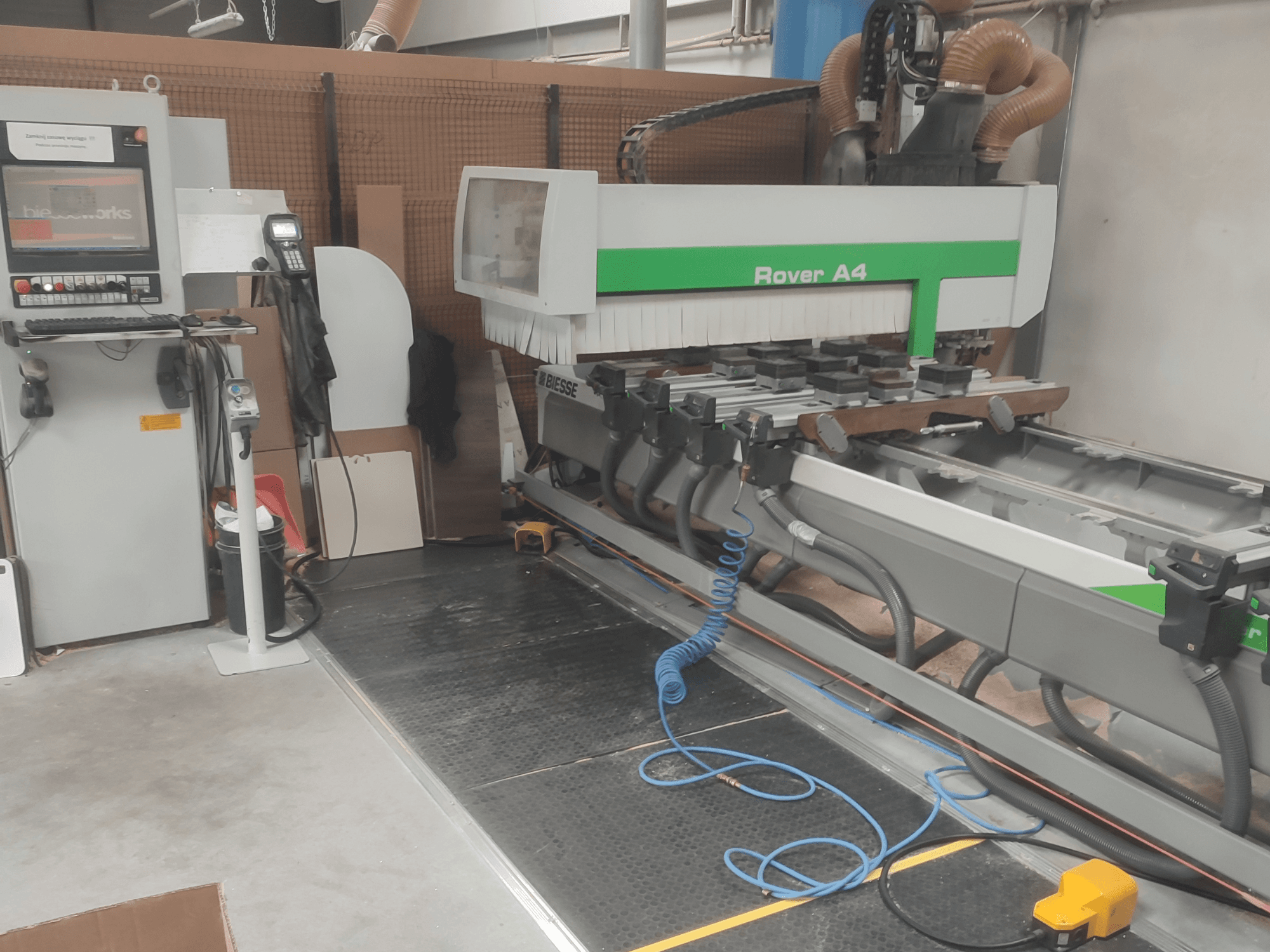

BIESSE - Rover A4.30PL-CNC-BIE-2010-00001

• Worktables and positioning:

  • 6 ATS panel supports, L 1,280 mm

  • 18 sliding bases

  • 6 stops with 115 mm stroke

  • 6 stops with 115 mm stroke positioned at 1,050 mm

  • 4 side stops with 115 mm stroke (2 LH + 2 RH)

  • 4 bar supports

  • 12 clamping units for narrow workpieces

  • 12 vacuum modules (132 × 146 × H48 mm)

  • 6 vacuum modules (132 × 75 × H48 mm)

  • Vacuum system divided into 2 work areas in X

  • Pneumatic system for bar supports with 2 independent work areas in X

• Spindle and aggregates:

  • 12 kW (16.1 HP) air‑cooled electrospindle, ISO 30 tool holder

  • Flange for assembly of aggregates

  • Preparation for 360° operating unit (C‑axis)

  • ISO 30 aggregate with 1 spindle, manual rotation, adjustable inclination (extra equipment installed)

• Tooling and drilling:

  • Revolving tool changer with 10 positions on X‑carriage side

  • Boring head BH 21 L:

    • 7 + 7 vertical spindles

    • 4 horizontal spindles in X

    • 2 horizontal spindles in Y

    • 1 saw blade in X (Ø120 mm)

  • BH 21 L boring head with quick‑change connections (extra equipment installed)

  • Drill bit holders for quick‑connection boring head spindles (extra equipment installed)

• Automation and preparation:

  • Automatic lubrication system

  • Preparation for belt conveyor for chip and off‑cut removal

  • Preparation for multifunctional unit or horizontal routing unit

  • C‑axis operating device with 360° rotation and gear transmission (extra equipment installed; for machines with preparation)

• Vacuum, pneumatics, electrics:

  • 90 m³/h vacuum pump

  • Auxiliary vacuum system

  • Blower

  • Inverter

  • Air conditioner for electrical cabinet

• Control and software:

  • PC‑based numerical control

  • 19" LCD monitor

  • Advanced remote keyboard

  • BIESSEWORKS advanced programming system

  • RVA SLOT 1 (extra equipment)

• Safety:

  • Safety devices with 2 front safety mats and rear/side protection

  • Safety devices in conformity with Regulation 2006/42/CE (Rover A 4.30) (extra equipment)

Additional equipment

• Manual laser barcode reader (not suitable for 2D/QR codes)
