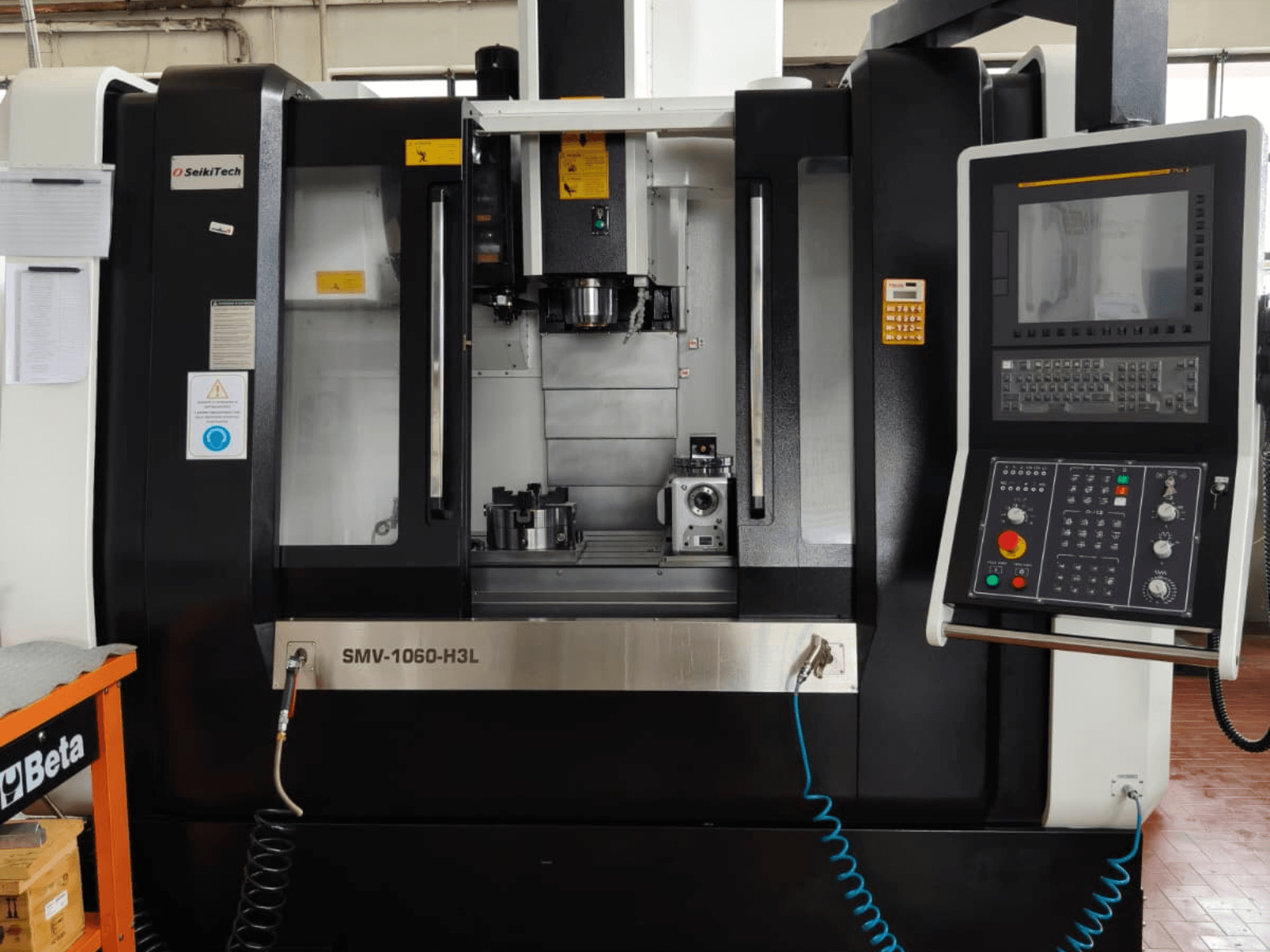

Finetech - SMV 1060 H3L IT-MIL-FIN-2024-00001

• Structure: Cast iron structure; roller linear guideways

• Control: FANUC 0iMF; 10.5" monitor; remote electronic handwheel

• Table: 1100 x 600 mm; 5 T-slots; T-slot size 18 mm; T-slot pitch 100 mm

• Distances: Spindle nose to table 130–780 mm

• Spindle: taper No. 40

• Tool changer (ATC): Tool holder taper ISO40 DIN69871; 24-position magazine; max tool Ø 80 mm; max tool length 300 mm; bidirectional selection; tool-to-tool 3 s; chip-to-chip 6 s

• Feedrates: Rapids X/Y/Z 36/36/32 m/min; working feedrate X/Y/Z 1–12,000 mm/min

• Coolant/utilities: Coolant tank 380 L; working pressure 4 bar; total installed power 25 kVA

• Dimensions & weight: 2900 x 2500 x 2800 mm

• Standard features: Rigid tapping; full safety enclosure; random bidirectional ATC arm; 24-position tool magazine; oil spindle cooling unit; Z-axis gas balancing system; automatic guide lubrication; electrical cabinet heat exchanger; working area lamp; service keys; transformer; manuals and CE declaration

Additional equipment

• Chip conveyor (screw type)

• Optional 40-tool chain-type magazine: BT40/CAT40; max tool Ø 75 mm with adjacent pockets occupied, Ø 152 mm with adjacent pockets empty; max tool weight 8 kg; max total tool weight 160 kg; air pressure required 5–6 kg/cm²
