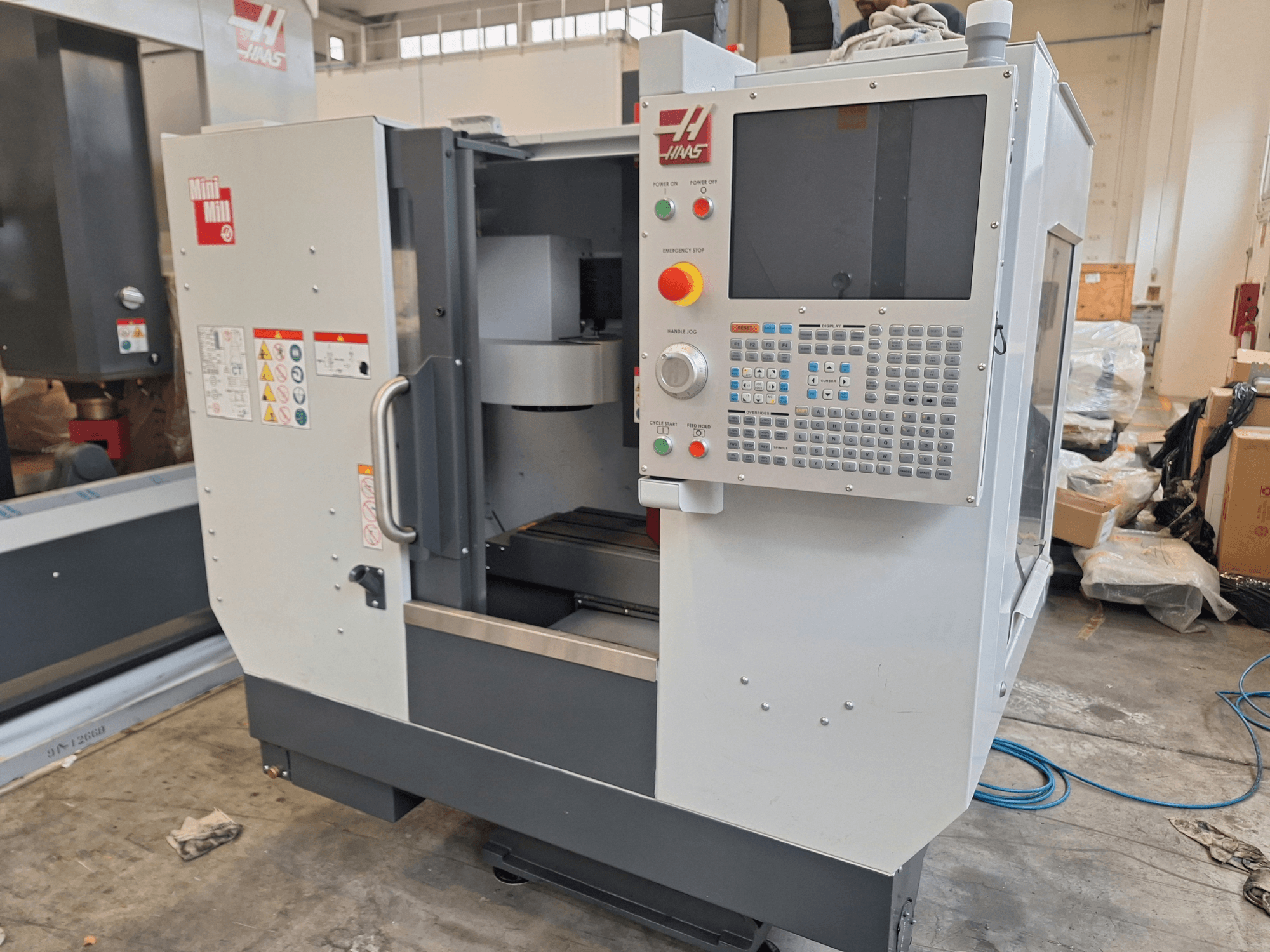

HAAS - Mini MillIT-MIL-HAA-2024-00003

• Working Hours: 0

• Showroom Machine

• Spindle Nose to Table (~ max): 19.0 in (483 mm)

• Spindle Nose to Table (~ min): 4.0 in (102 mm)

• Spindle Max Rating: 10.0 hp (7.5 kW)

• Spindle Max Torque: 45.0 ft-lbf @ 500 rpm (61.0 Nm @ 500 rpm)

• Spindle Drive System: Direct Speed, Belt Drive

• Bearing Lubrication: Grease Packed

• Cooling: Air Cooled

• T-Slot Width: 0.626 in to 0.630 in (15.90 mm to 16.00 mm)

• T-Slot Center Distance: 4.33 in (110 mm)

• Number of Std T-Slots: 3

• Max Cutting Feedrate: 650 ipm (6.5 m/min)

• Rapids on X / Y / Z: 800 ipm (20.3 m/min)

• Axis Motors Max Thrust (X, Y, Z): 2000 lbf (8896 N)

• Tool Changer Type: Carousel

• Max Tool Diameter (full): 3.5 in (89 mm)

• Max Tool Length (from gage line): 12.00 in (305 mm)

• Tool-to-Tool (avg): 4.20 s

• Chip-to-Chip (avg): 5.00 s

• Coolant Capacity: 45 gal (170 L)

• Air Required: 4 scfm @ 100 psi (113.0 L/min @ 6.9 bar)

• Inline Air Hose: 3/8 in

• Coupler (Air): 3/8 in

• Air Pressure Min: 80 psi (5.5 bar)

• Input AC Voltage (1 Phase): 220 VAC, Full Load Amps: 40 A

• Input AC Voltage (3 Phase Low): 220 VAC, Full Load Amps: 25 A

• Input AC Voltage (3 Phase High): 440 VAC, Full Load Amps: 13 A

• Domestic / Export Pallet Dimensions: 90.0 in x 80.0 in x 92.0 in (229 cm x 203 cm x 234 cm)

• Shipping Weight: 4450 lb (2018.5 kg)

Additional equipment

• Renishaw Wireless Intuitive Probing System (WIPS) with OTS table probe installed

• Flexible coolant nozzle assembly
