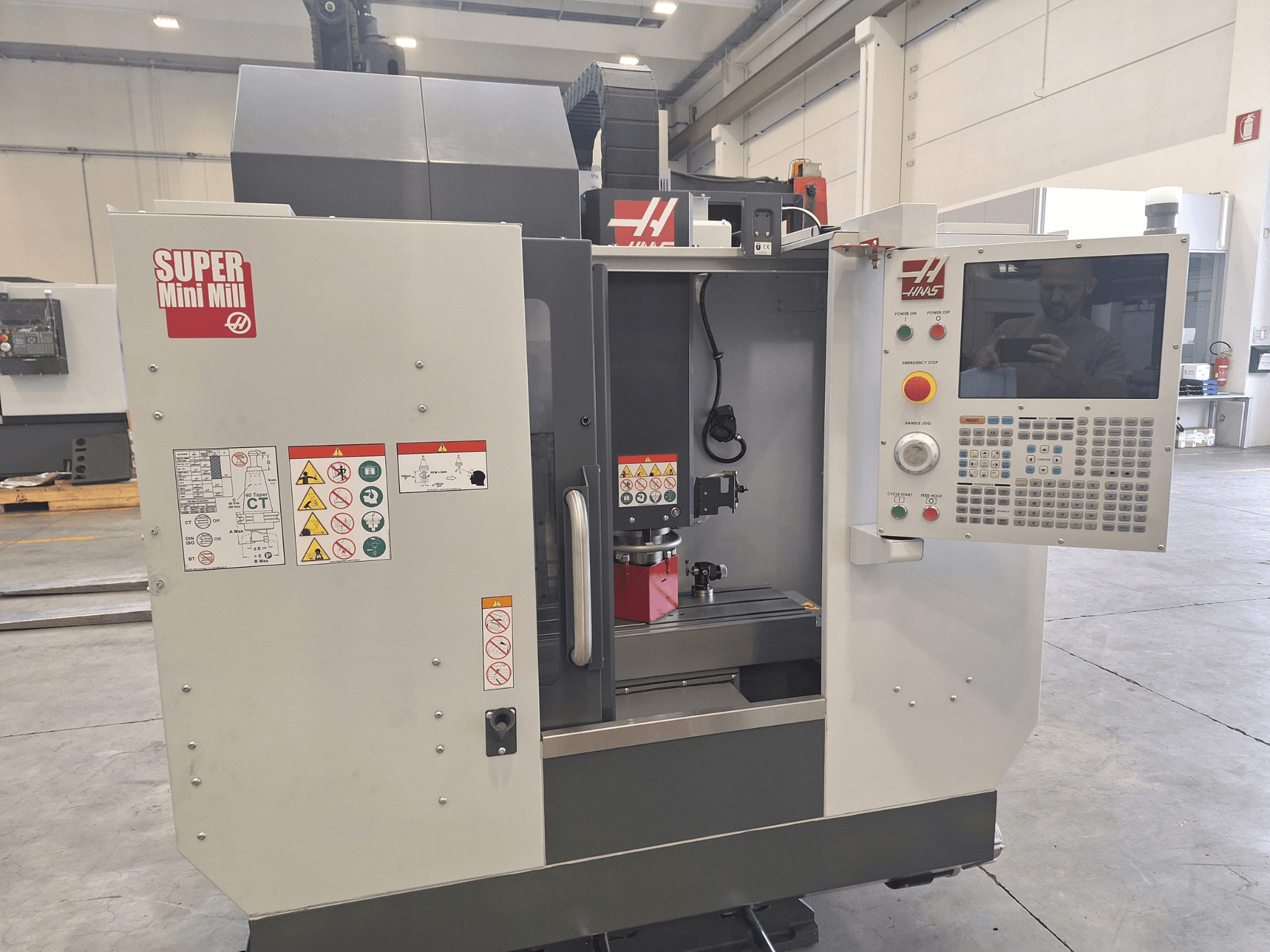

HAAS - HAAS Super Mini MillIT-MIL-HAA-2024-00001

Condition: Showroom machine

Working hours: 0

Spindle nose to table: max 19.0 in / 483 mm; min 4.0 in / 102 mm

Spindle max torque: 22.0 ft-lbf @ 5000 rpm / 29.8 Nm @ 5000 rpm

Spindle drive system: Direct Speed, Belt Drive

Spindle bearing lubrication: Air / Oil Injection

Spindle cooling: Air Cooled

Table length: 36.0 in / 914 mm

Table width: 12.0 in / 305 mm

Table T-slot width: 0.626 in to 0.630 in / 15.90 mm to 16.00 mm

Table T-slot center distance: 4.33 in / 110 mm

Number of standard T-slots: 3

Max cutting feedrate: 833 ipm / 21.2 m/min

Rapids (X/Y/Z): 1200 ipm / 30.5 m/min

Max thrust (X/Y/Z): 2000 lbf / 8896 N

Tool changer type: Side-Mount Tool Changer (SMTC)

Tool changer capacity: 30+1

Max tool diameter (full): 2.5 in / 64 mm

Max tool diameter, large (adjacent empty): 5.0 in / 127 mm

Max tool length (from gage line): 7.00 in / 178 mm

Tool-to-tool (avg): 2.80 s

Chip-to-chip (avg): 4.20 s

Coolant capacity: 45 gal / 170 L

Air required: 4 scfm @ 100 psi / 113.0 L/min @ 5.5 to 6.9 bar

Inline air hose & coupler: 3/8 in

Input AC voltage (3 phase) - Low / High: 220 VAC (30 A) / 440 VAC (15 A)

Shipping dimensions: 90.0 in x 80.0 in x 99.0 in / 229 cm x 203 cm x 252 cm

Shipping weight: 4650 lb / 2109.2 kg
