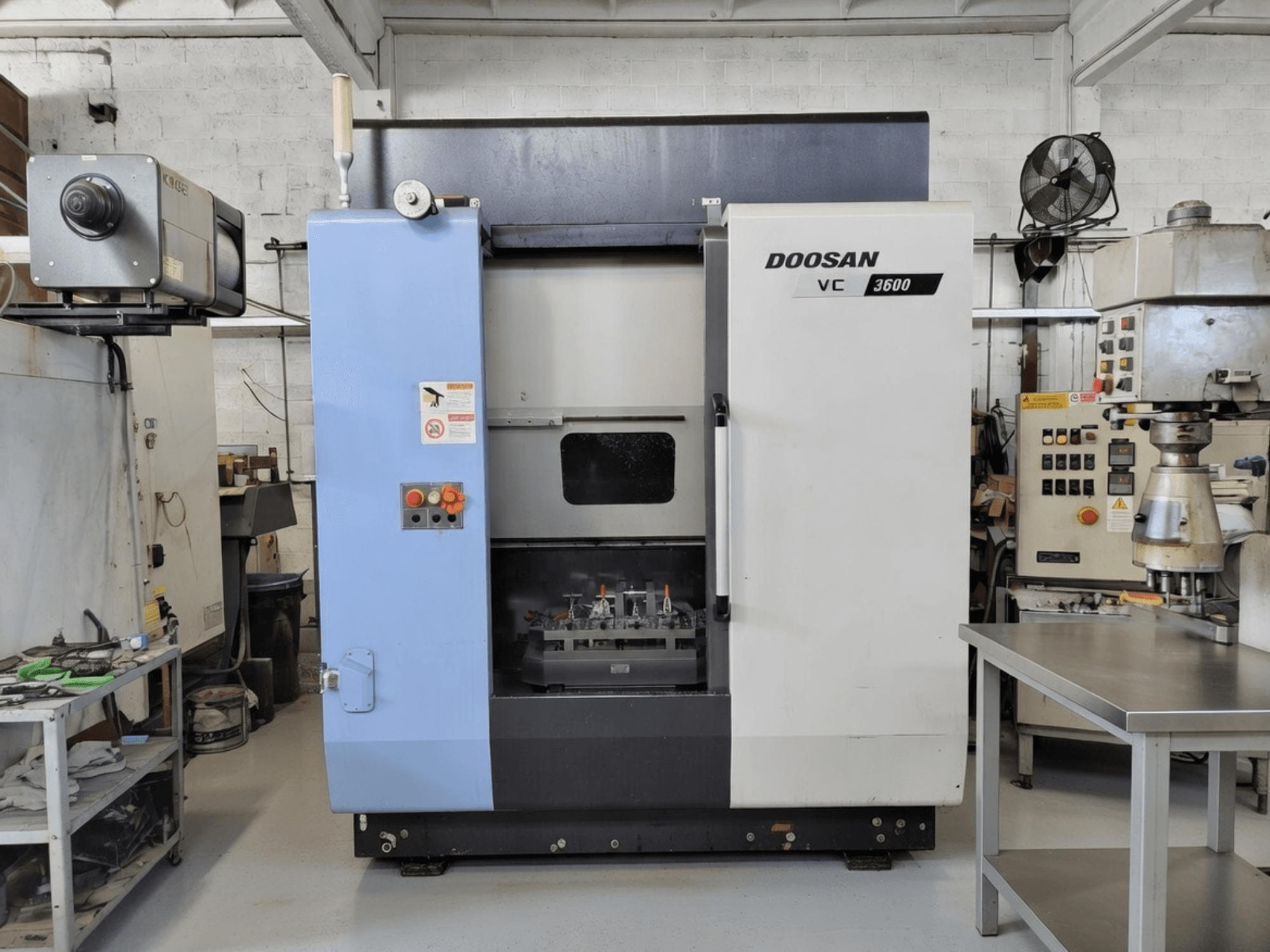

This 3-axis DOOSAN VC 3600 was manufactured in 2018. It features an X-axis travel of 520 mm, Y-axis travel of 360 mm, and Z-axis travel of 465 mm. The machine includes a table size of 650 × 375 mm and a load capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN VC 3600 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DOOSAN
  • year: 2018
  • MODEL: VC 3600
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - DOOSAN VC 3600

Control Unit

  • Control Brand: FANUC
  • Control Model: i Series

Dimensions

  • Table Load: 500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 520 mm
  • Y-axis Travel: 360 mm
  • Z-axis Travel: 465 mm

Technical Specification

  • Spindle Power: 7.5 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 40
  • Tool Stations: 20

Additional Information

  • Table Dimensions: 650 × 375 mm

  • Spindle Power: 5.5 / 7.5 kW

  • Total Part Count (Pezzi Totali): 114,937 parts

  • Operating Time (Tempo Lav): 858 h 41 min 59 sec

  • Cutting Time (Tempo Taglio): 3,329 h 25 min 12 sec

  • Power On Time (Acceso): 13,604 h 41 min

  • Cycle Time (Tempo Cic): 0 h 1 min 59 sec

  • Documentation: Instruction manuals and CE declaration of conformity included

Additional equipment

  • D'Andrea TRM/50 boring head attachment

  • Gerardi vise (345 × 120 mm)

  • Chip conveyor system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
