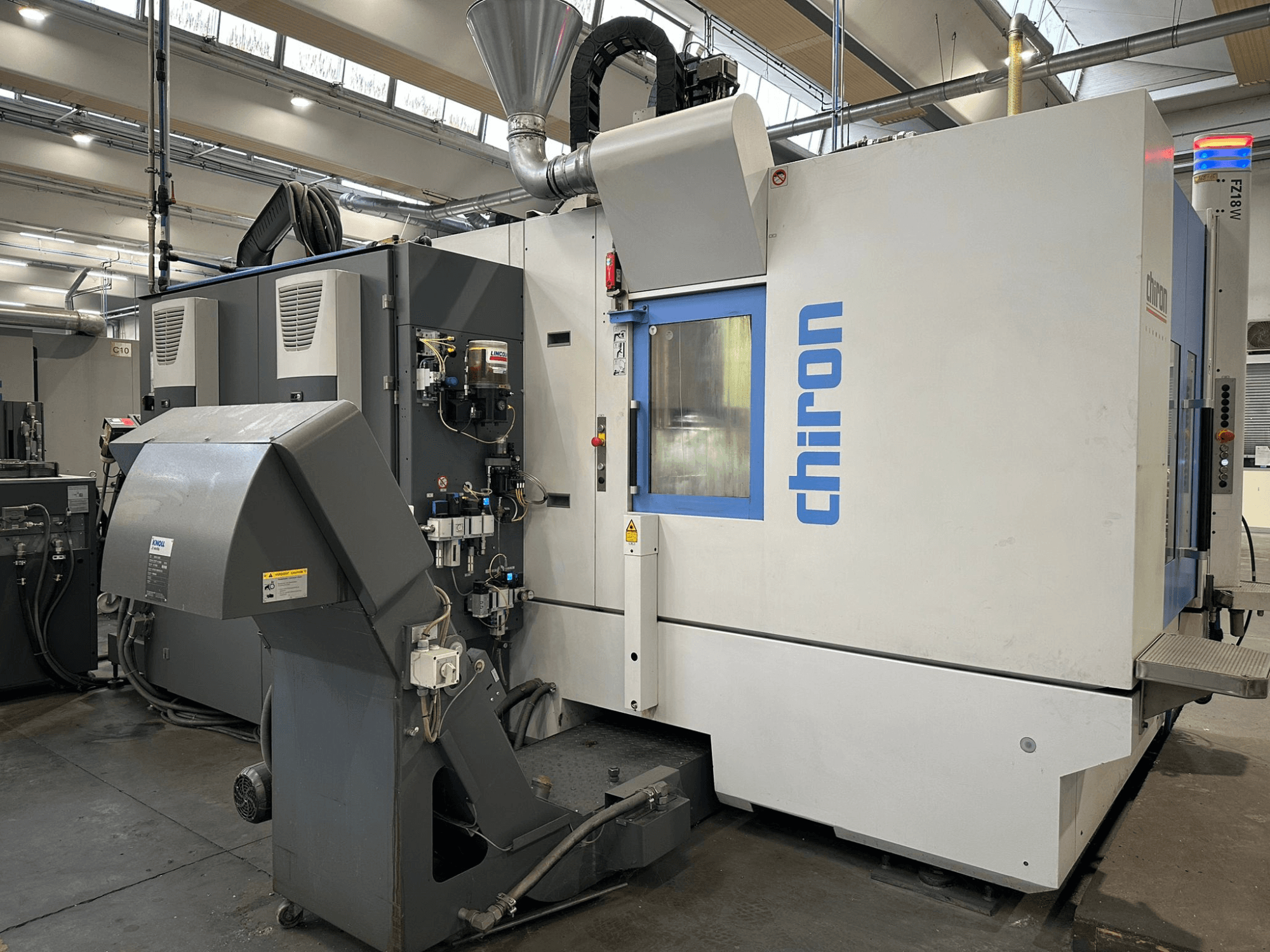

CHIRON - FZ18WIT-MIL-CHI-2019-00002

• Number of axes: 5 (X, Y, Z + 2 rotary axes via pallet/rotary table)

• Spindle:

  • AC spindle motor: 7.5 kW (100% duty), 22.0 kW (10% duty)

  • Max torque: 140 Nm

  • Taper: HSK-A63 (DIN 69893)

  • Drilling capacity: Ø 42 mm

  • Tapping capacity: M30

  • Milling capacity: 500 cm³/min (steel E355)

• Tool changer:

  • Type: Fully enclosed chain magazine

  • Capacity: 70 tools

  • Max tool Ø: 78 mm (160 mm with free adjacent positions)

  • Max tool length: 380 mm

  • Max magazine load: 240 kg

  • Tool change time: ~0.9 s

  • Chip-to-chip time: ~2.6 s

• Feed rates & dynamics:

  • Rapid traverse (X/Y/Z): 75 m/min

  • Acceleration: 0.6 – 1.2 – 1.4 g

  • Drives: Direct digital drives with absolute measuring system

• Machine functions/utilities:

  • Automatic washdown of work area and fixtures

  • Automatic centralized grease lubrication

  • Hydraulic unit: 200 bar

  • Compressed air treatment with filtration to 0.01 µm

  • Cooling unit for machine components

• Measuring, monitoring, software:

  • FANUC 3D collision control

  • Tool monitoring and sister tool management

• Electrical & interfaces:

  • Ethernet RJ45, USB, PCMCIA

  • Remote diagnostics: CHIRON remoteLine

  • Data monitoring & OEE: CHIRON dataLine

• Compliance: CE

Additional equipment (robots, automation, peripherals)

• Automation/palletizing:

  • Automatic pallet changer IWV 0°/180° (change time ~3.5 s)

  • Rotary table ATU 200, 2 units

    • Positioning accuracy/repeatability: ±5″

    • Max clamping torque: 1,200 Nm

    • Max load per side (APC): 250 kg

    • Max weight difference between pallets: 0 kg

• Coolant and chip management:

  • Through-spindle coolant (predisposition)

  • High-pressure coolant system up to 30 bar

  • Coolant filtration: Drum filter TPF 350 S (50 µm)

  • Chip conveyor: Hinged belt

  • Coolant tank: 230 L

  • Pump: 250 L/min @ 1.4 bar

• Probing/tool control:

  • Renishaw RLP40Q probe (predisposition)

  • Laser tool breakage control (Single F1000)
