HAAS - VF-4IT-MIL-HAA-2017-00003

£ 38,580
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

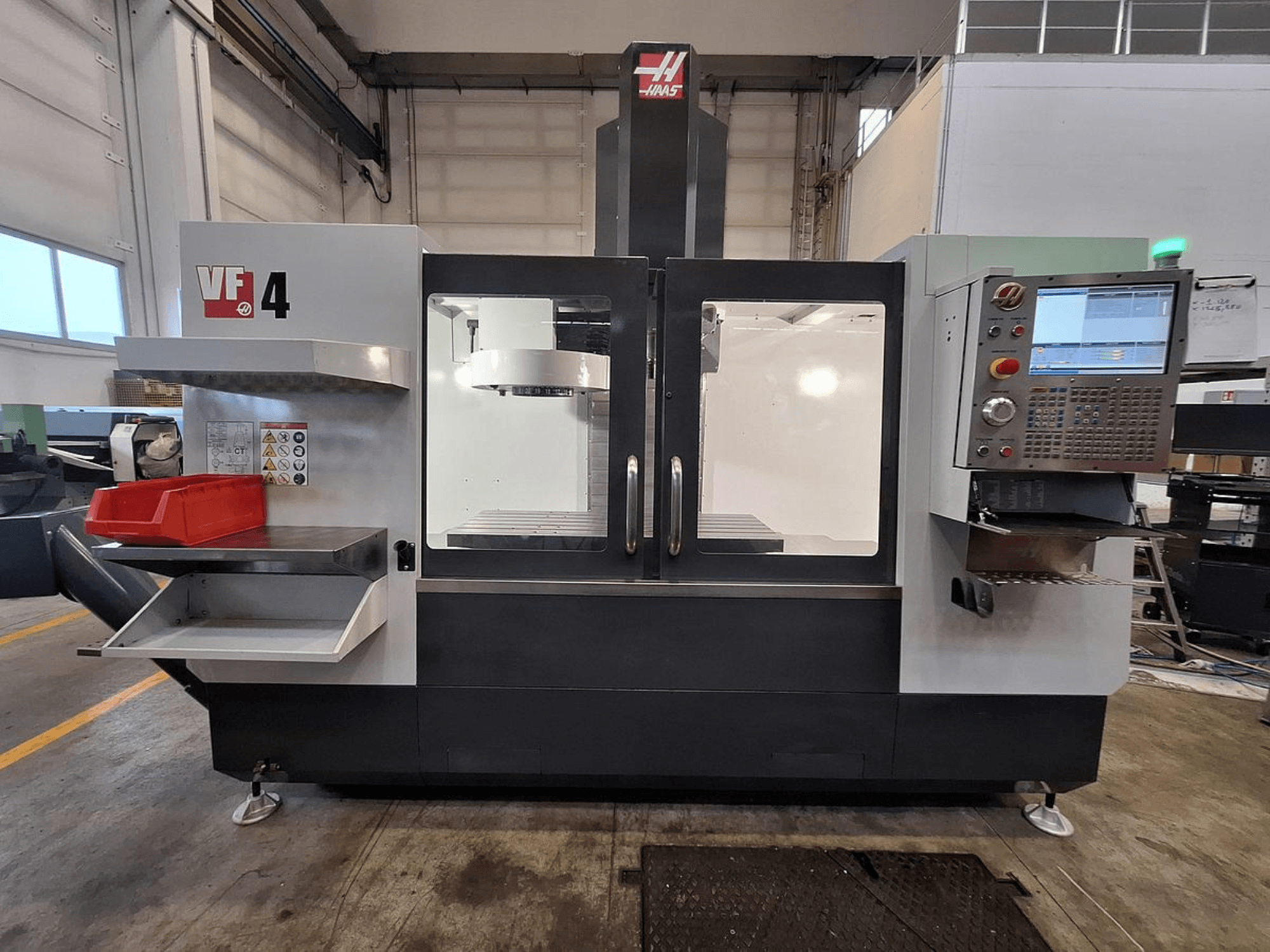

This 3-axis HAAS VF-4 was manufactured in 2017. It features an X-axis travel of 1270 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine is equipped with a maximum spindle speed of 8,100 RPM and a robust table size of 1321 mm x 495 mm, supporting a maximum weight of 794 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: VF-4
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - HAAS VF-4

Movement

  • Number of Axes: 3
  • X-axis Travel: 1270 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 635 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 8100 RPM

Additional Information

  • Spindle taper: CT 40

  • Max torque: 122.0 Nm @ 2000 rpm

  • Table dimensions: 1321 x 495 mm

  • Max weight on table: 794 kg

  • Tool changer: 20 positions (umbrella type)

  • Rapid feedrate (X/Y/Z): 25.4 m/min

  • Table to spindle nose (min/max): 107 / 742 mm

  • T-slots: 5 slots, 16 mm width, 80 mm pitch

  • Power-on time: 18673:41:20

  • Cycle start time: 3974:33:16

  • Feed cutting time: 2117:17:34

  • Included machine options/features: 15" color monitor, rigid tapping, USB port

Additional equipment

  • Programmable coolant nozzle

  • Auger-type chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
