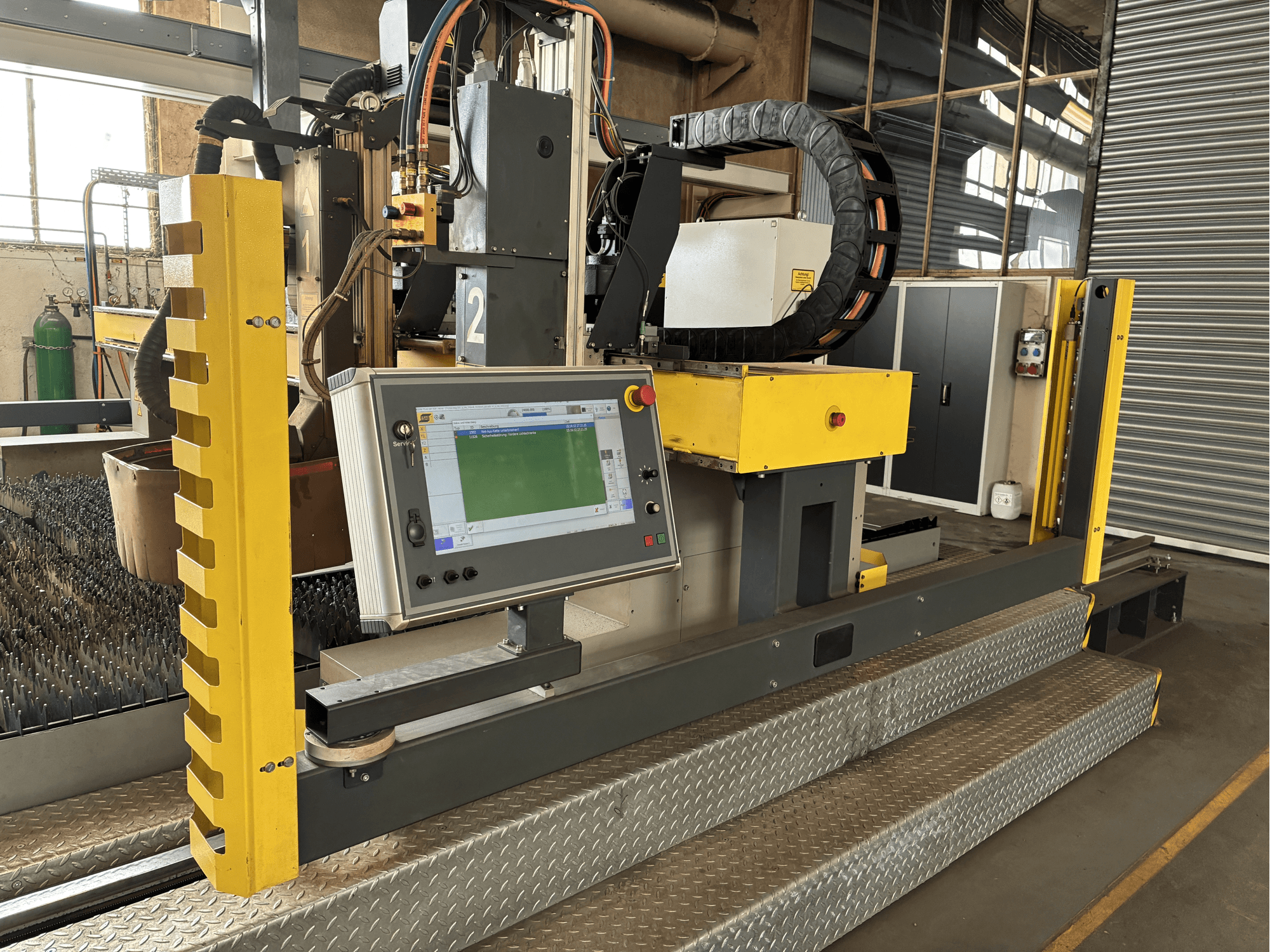

ESAB - Suprarex HD 4000DE-CUT-ESA-2021-00001

• Track width: 4000 mm

• Track length: 12000 mm

• Workpiece support height: 700 mm

Working area

• Total working width: max. 2500 mm

• Plasma phase working width: max. 2500 mm

• Oxyfuel vertical working width: max. 2750 mm

• Maximum working length: 9000 mm

Plate size capacity

• Plate width: max. 2500 mm

• Plate length: max. 9000 mm

Standard cutting table

• Table width: 3100 mm

• Table length: 9270 mm

Tool stations

• Number of tools on the machine: 2

• Number of cross drives: 2

Cutting processes

• Oxyfuel cutting (vertical)

  • Number of oxyfuel single torches: 1

  • Cutting range: 3–200 mm material thickness

• Plasma cutting (bevel & vertical)

  • Bevel station: 1x DMX beveler

  • Cutting range (vertical): 6–40 mm (blue steel)

  • 45° bevel range: 6–40 mm (blue steel)

  • Minimum plate thickness for Y-cut: 10 mm

  • Minimum plate thickness for K-cut: 20 mm
