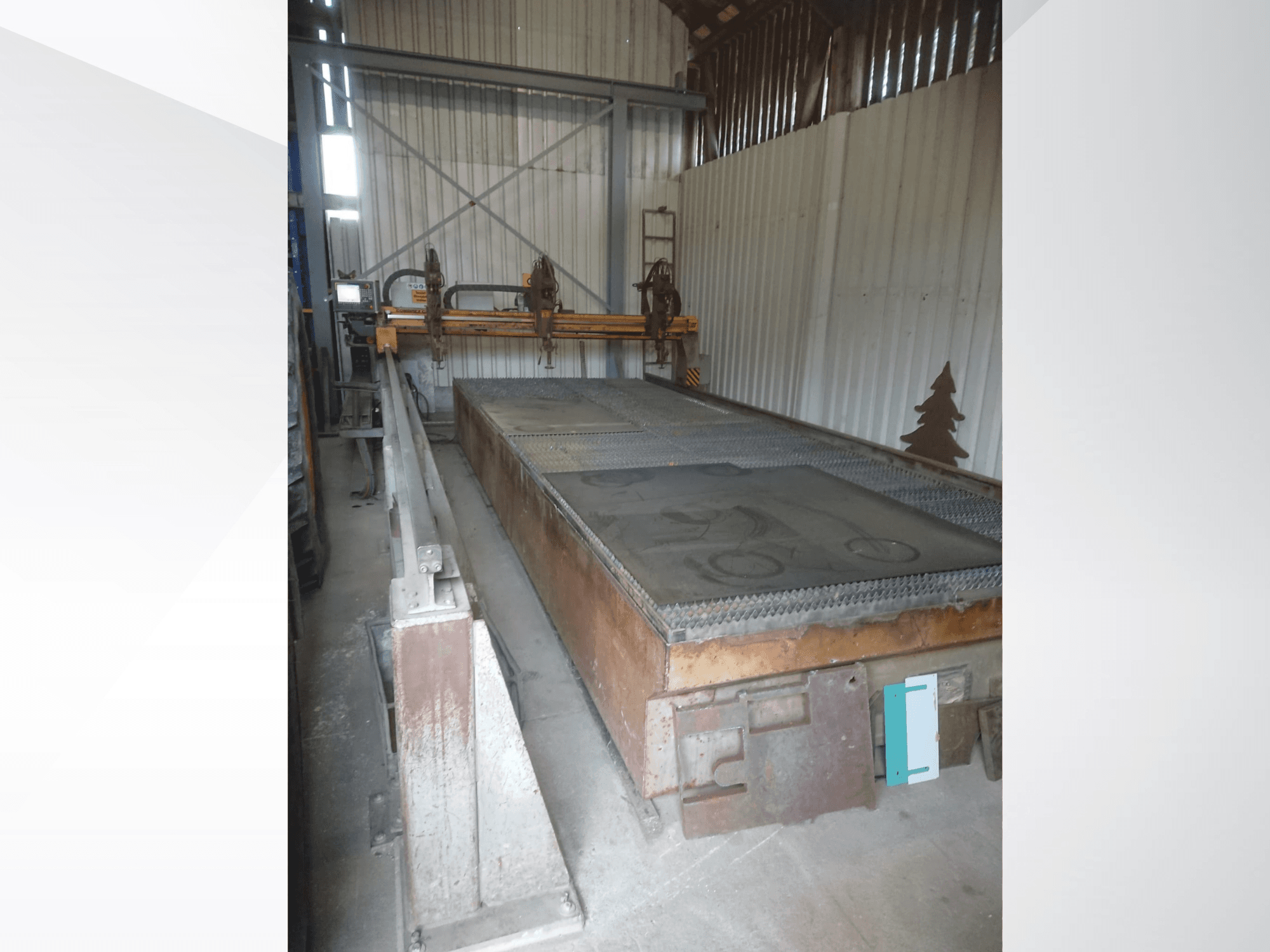

This 4-axis ESAB Combirex CXD P 3500 was manufactured in 1997. It features a cutting current of 100 A and is capable of handling a maximum recommended cutting thickness of 31.8 mm for mild steel and stainless steel, and 25.4 mm for aluminum. If you are looking to get high-quality plasma cutting capabilities, consider the ESAB Combirex CXD P 3500 machine we have for sale. Contact us for further details.
Overview
- brand: ESAB
- year: 1997
- MODEL: Combirex CXD P 3500
- application type: Cutting
- Location: Switzerland
- machine type: Plasma Cutting Machine
- control unit brand: ESAB
Technical Information - ESAB Combirex CXD P 3500
Control Unit
- Control Brand: ESAB
- Control Model: Vision 51
Movement
- Number of Axes: 4
- X-axis Travel: 6000 mm
Additional Information
Cutting table: 2,000 x 6,000 mm with sectional extraction
Track length: 8,000 mm
Track gauge: 3,500 mm
Three oxyfuel torches with capacitive height sensing
One torch carriage designed as an interchangeable system for plasma torch mounting
Supply voltage: 230 V
Apparant power: 4.0 kVA
Frequency: 50 Hz
Power source: Hypertherm Powermax 1650
Torch type: T100M
Cutting current: 100 A
Torch-to-work distance: 3.2 mm
Maximum recommended cutting thickness (Mild Steel): 31.8 mm
Maximum recommended cutting thickness (Stainless Steel): 31.8 mm
Maximum recommended cutting thickness (Aluminium): 25.4 mm
Machine retrofitted in 2008:
New Hypertherm Powermax 1650 plasma source (up to 25 mm steel) including torch
New Vision 51 control system
Conversion to dual-sided X-axis drive
Optional: Rotoclean RC-S80 extraction system
Automatic filter cleaning
Optional: various spare parts for oxyfuel and plasma operation available
Oxyfuel cutting has not been used for a long time and may require maintenance
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
