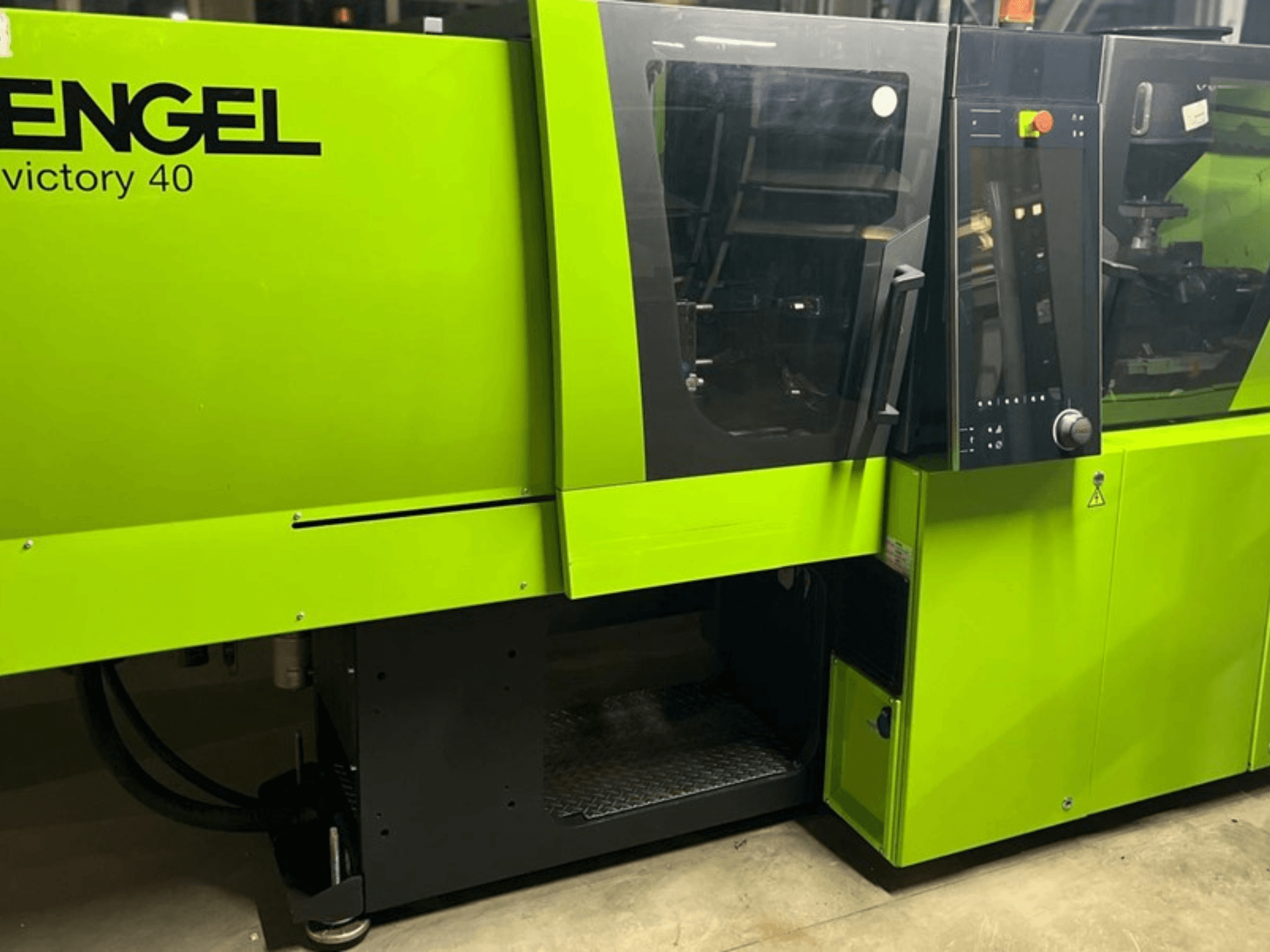

This Engel VICTORY 200/40 tech was manufactured in 2015. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes. With a clamping force of 40 tons and a screw diameter of 25 mm, it supports a maximum injection volume of 69 cm³. The machine includes a robot interface (Euromap 67) and is still in production, showcasing its reliability and excellent condition. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2015
- MODEL: VICTORY 200/40 tech
- production hours: 27137
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel VICTORY 200/40 tech
Dimensions
- Machine Height: 1780 mm
- Machine Length: 3179 mm
- Machine Weight: 2900 kg
Technical Specification
- Clamping Force: 400 kN
- Screw Diameter: 25 mm
Additional Information
Injection unit: 200
Maximum injection volume: 69 cm³
Minimum mould height: 193 mm
Maximum mould height: 599 mm
Platen opening stroke: 405 mm
Platen dimensions (W x L): 500 x 450 mm
Tie bars: Tie-bar-less design
Motor power: 15 kW
Heater power: 6.85 kW
Number of electrical connection pins: 16
Injection nozzle radius (tip): R35
Centering ring diameter: 125 mm
Robot interface: Euromap 67
Operating hours: 27,137 h
Condition: Excellent
Status: In production
Additional equipment
Robot (equipped; brand/model not specified)
