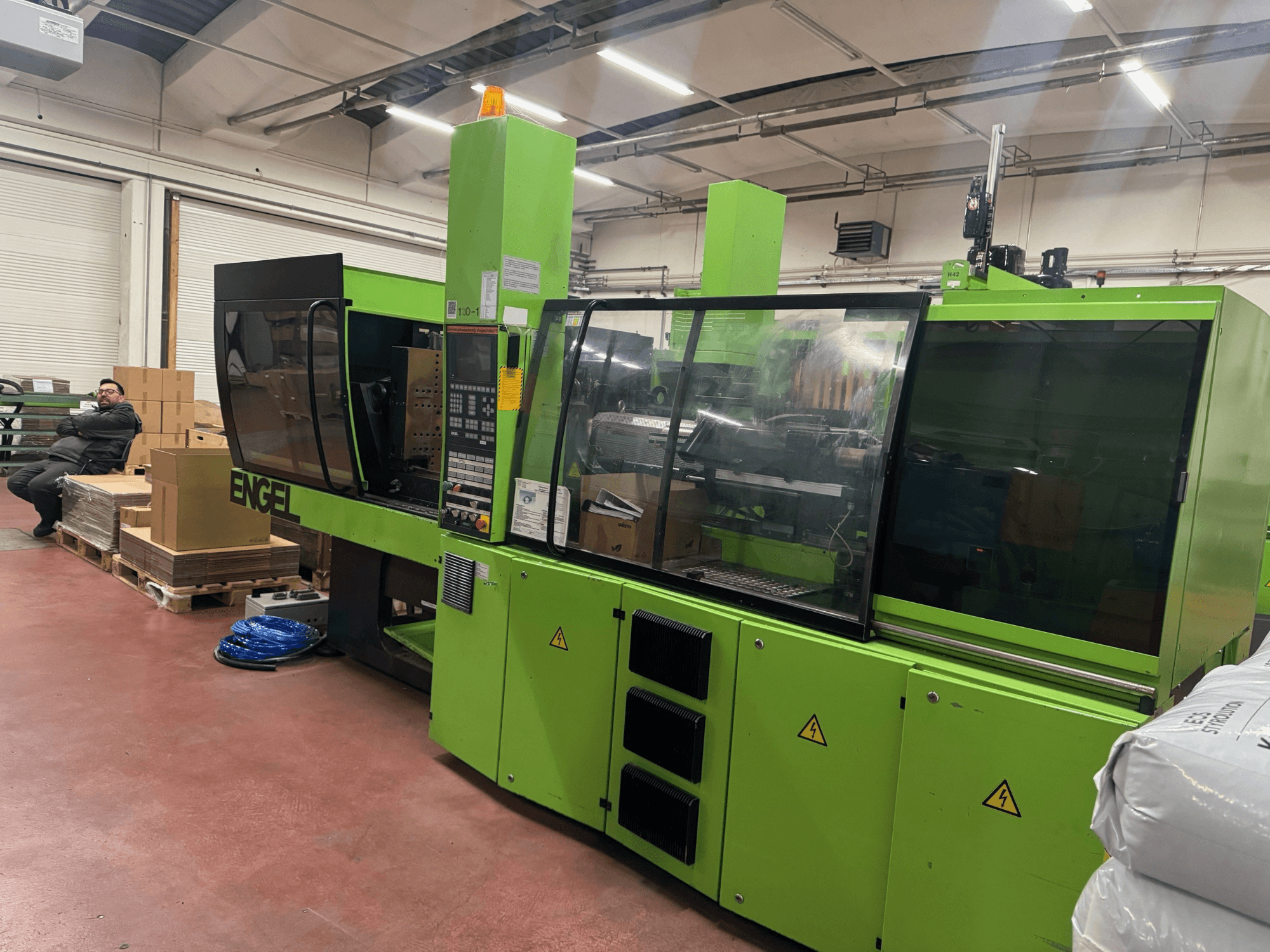

Engel - VICTORY 500/120CH-INJ-ENG-2002-00001

Screw Diameter: 40 mm (Selected option)

Screw Length (L/D): 20

Plasticizing Capacity (Standard): 32 g/sec

Plasticizing Capacity (Barrier): 44 g/sec

Dosing Stroke: 200 mm

Screw Speed: 20-400 r/min

Injection Rate: 198 cm³/sec

Max. Stroke Volume: 251 cm³

Spec. Injection Pressure: 1300 bar

Spec. Injection Pressure (Increased): 2050 bar

Nozzle Stroke: 300 mm

Nozzle Contact Force: 50 kN

Heating Power: 9.2 kW

Number of Heating Zones: 4 (including nozzle)

Clamping Force: 500 kN

Opening Stroke: 500 mm

Ejector Force: 40 kN

Ejector Stroke: 130 mm

Mold Height Min.: 300 mm

Max. Platen Distance: 800 mm

Mold Mounting Platens Size: 740 x 470 mm

Enlarged Mounting Platens: 740 x 680 mm

Ejection Width: 500 mm

Dry Cycle (Euromap 6): 1.6 sec - 200 mm

Pump Drive Power: 18.5 kW

Oil Capacity: 300 l

Net Weight (without oil): 7400 kg

Dimensions (LxWxH): 4.86 x 1.48 x 2.048 m

Control interface: Integrated keypad and screen (Engel branding)

Power switch: Manual rotary main switch (labeled "Do not actuate under load")
