➤ Used Engel DUO 5550/800 For Sale | gindumac.com

Show in original language

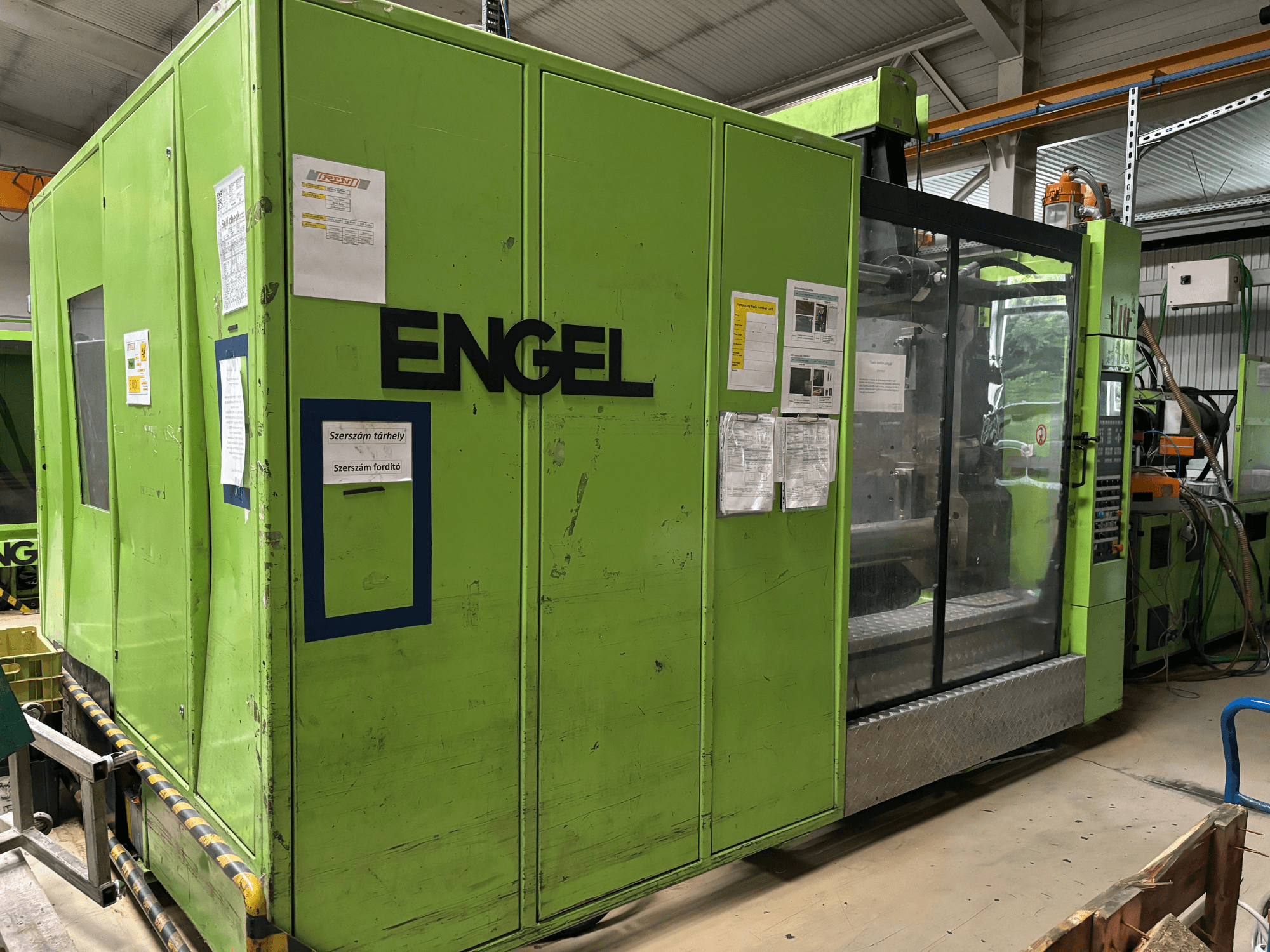

Hydraulic injection moulding machine manufactured in 2003. This Engel DUO 5550/800 features a clamping force of approximately 800 tons and a screw diameter of about 90 mm. It has a shot volume of around 2700 cm³ and a maximum injection pressure of approximately 1900 bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel DUO 5550/800 machine we have for sale. Contact us for further details.

Overview

brand: Engel
year: 2003
MODEL: DUO 5550/800
application type: Injection Moulding
Location: Hungary
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel DUO 5550/800

Dimensions

Machine Height: 2500 mm
Machine Length: 8900 mm
Machine Weight: 44000 kg
Machine Width: 3000 mm

Technical Specification

Clamping Force: 8000 kN
Screw Diameter: 90 mm

Additional Information

Shot volume: ~2700 cm³
Max. injection pressure: ~1900 bar
Plasticizing capacity: ~77 g/s
Clamping unit: Two-platen design (no traditional toggle), larger mold space for easier changes, even clamping force distribution
Injection unit: Hydraulic, high-performance plasticizing; suitable for thick-walled or large-volume parts
Typical applications: Automotive components (e.g., bumpers, dashboard elements), large housings and covers, industrial parts, thick-walled technical components
Advantages: High clamping force for large parts, more compact than traditional tie-bar machines, stable industrial design, easy to automate

Additional equipment

Not specified/included in the provided information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
