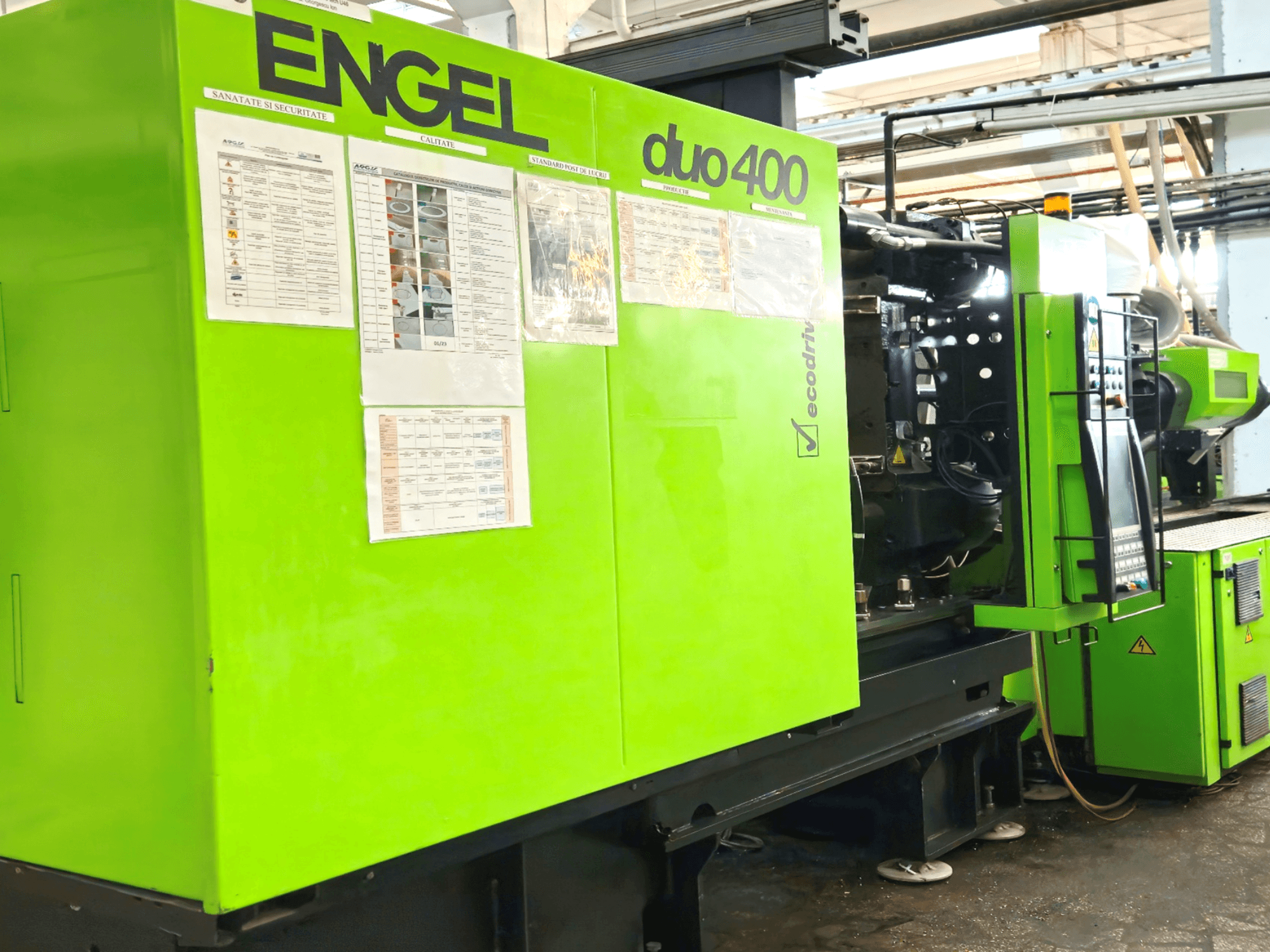

This Engel DUO 3550/400 pico was manufactured in 2013. It features a clamping force of 4,000 kN, a screw diameter of 80 mm, and a maximum injection volume of 1,960 cm³. The machine dimensions are 7,420 × 2,360 × 2,360 mm, and it weighs 11,000 kg. It is equipped with a robot interface Euromap 67. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2013
- MODEL: DUO 3550/400 pico
- production hours: 60672
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel DUO 3550/400 pico
Dimensions
- Machine Height: 2360 mm
- Machine Length: 7420 mm
- Machine Weight: 11000 kg
Technical Specification
- Clamping Force: 4000 kN
- Screw Diameter: 80 mm
Additional Information
Operating hours: 60,672 h
Condition: Excellent
Status: In production
Maximum injection volume: 1,960 cm³
Minimum mould height: 350 mm
Maximum mould height: 850 mm
Platen opening stroke: 1,050 mm
Platen dimensions (W × L): 1,100 × 1,190 mm
Tie-bar distance: 800 × 800 mm
Motor power: 70 kW
Heater power: 52.95 kW
Number of electrical connection pins: 32
Injection nozzle radius (tip): R35
Centering ring diameter: 200 mm
Number of cores: 0
Number of heating zones: 0
Additional equipment
Robot equipped: Yes
Robot interface: Euromap 67
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
