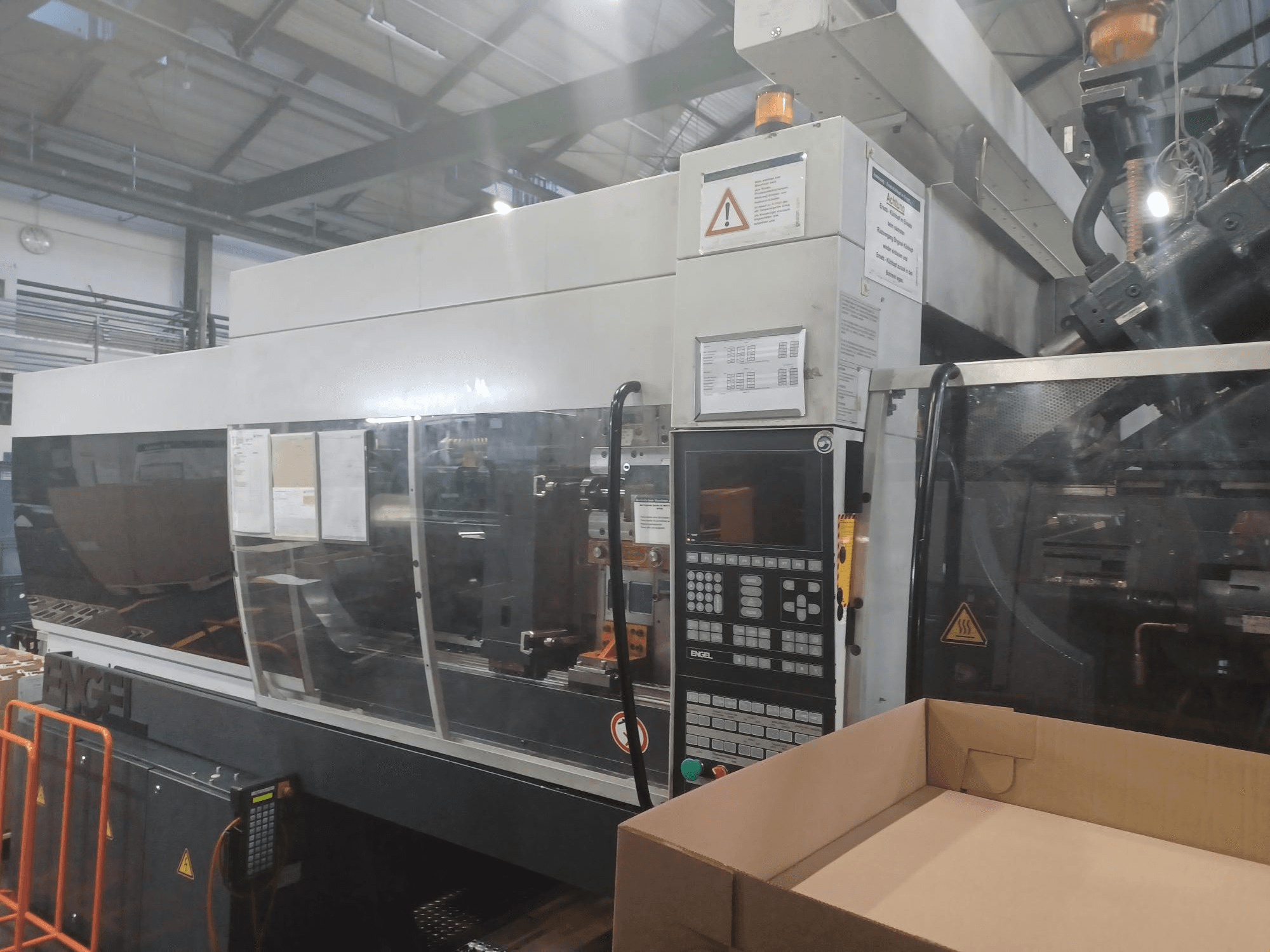

Engel injection molding machine, front view, with control panel, safety labels, and an empty box positioned nearby.
Engel injection molding machine, front view, with control panel, safety labels, and an empty box positioned nearby.

Engel - ES650H/200W-200HL-2FDE-INJ-ENG-2004-00006

£ 14,775
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Engel ES650H/200W-200HL-2F was manufactured in 2004. It features a clamping force of 2000 kN and platen dimensions of 920 x 760 mm. The machine includes a two-component system with screw diameters of 40 mm and 25 mm, and a robot system ERC 23/1-E for enhanced automation. Ideal for precision in hydraulic injection moulding. Contact us for more information about this machine.

Overview

  • brand: Engel
  • year: 2004
  • MODEL: ES650H/200W-200HL-2F
  • production hours: 96194
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel ES650H/200W-200HL-2F

Technical Specification

  • Clamping Force: 2000 kN
  • Max. Shot Weight: 216 g
  • Screw Diameter: 40 mm

Additional Information

  • Configuration: 2K (two-component injection molding machine)

  • Clamping unit:

    • Platen dimensions (H x V): 920 x 760 mm

    • Mold installation height (min): 500 mm

    • Opening stroke: 750 mm

    • Max. daylight (platen distance): 1150 mm

    • Max. mold weight: 3000 kg (1500 kg per side)

    • Ejector stroke: 150 mm

    • Ejector force: 80 kN

    • Core pulls: 3 (ejector side)

    • Centering ring diameter (ejector side): 200 mm

  • Injection unit 1 (Primary - 650H):

    • Screw diameter: 40 mm

    • Injection pressure: 1946 bar

    • Shot volume (swept): 251 ccm

    • Shot weight (PS): 216 g

    • Screw speed: 290 rpm

    • L/D ratio: 20

    • Nozzle radius: 15 mm

  • Injection unit 2 (Secondary - 200W):

    • Screw diameter: 25 mm

    • Injection pressure: 2089 bar

    • Shot volume (swept): 69 ccm

    • Shot weight (PS): 60 g

    • Screw speed: 480 rpm

    • L/D ratio: 24

  • Interfaces/Control: Printer interface; process control available

Additional equipment

  • Robot system: ERC 23/1-E linear robot

    • X-axis stroke: 500 mm

    • Y-axis stroke: 1000 mm

    • Z-axis stroke: 1600 mm

  • Hot runner control: 16-zone

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
