Engel - DUO 7050/650 picoRO-INJ-ENG-2013-00002

Name: Engel DUO 7050/650 pico
Brand: Engel
SKU: RO-INJ-ENG-2013-00002
Price: 120806 GBP
Availability: InStock

£ 120,806

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel DUO 7050/650 pico For Sale | gindumac.com

Show in original language

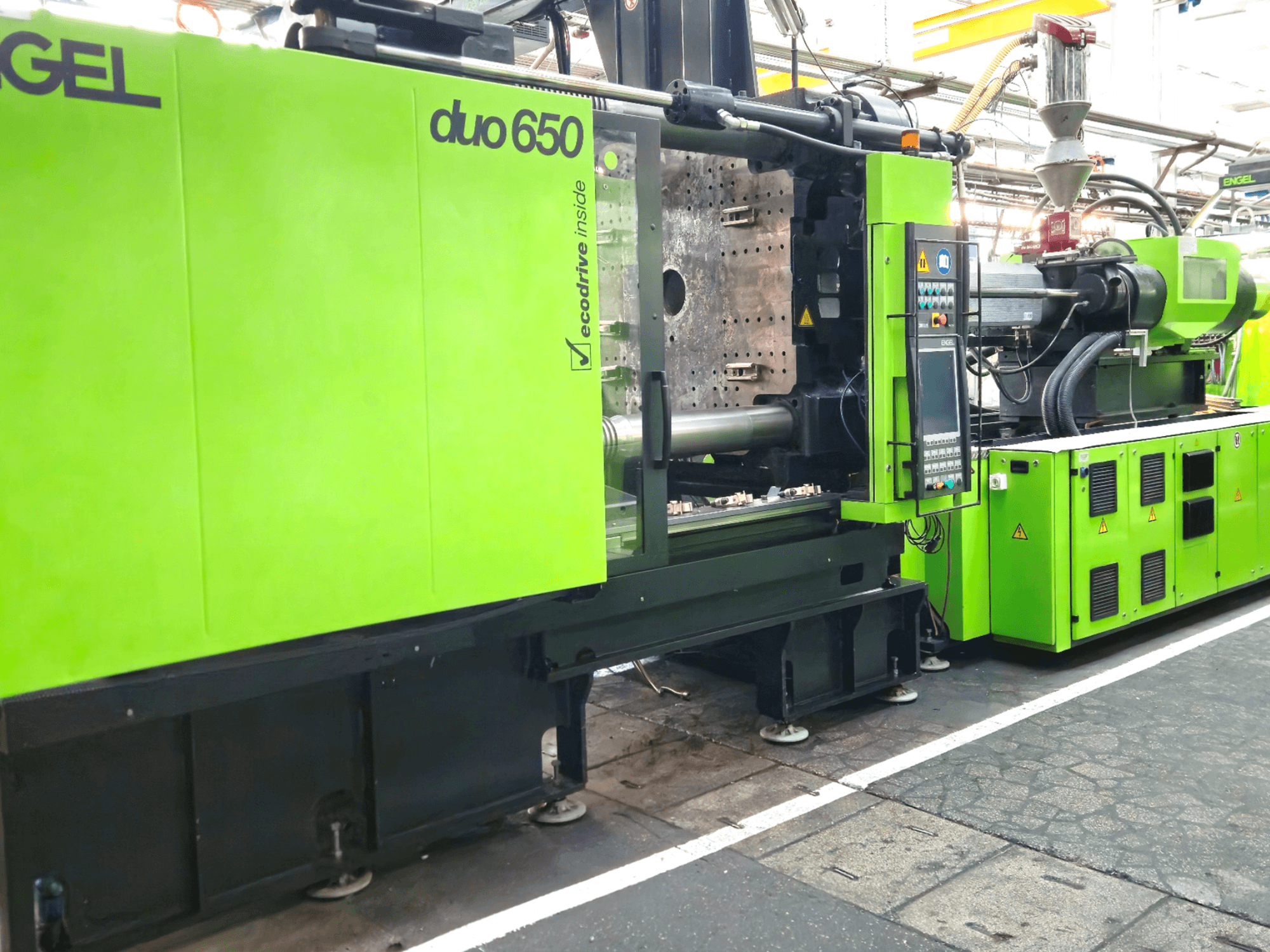

This Engel DUO 7050/650 pico was manufactured in 2013. It features a clamping force of 6500 kN, a maximum injection volume of 4160 cm³, and a screw diameter of 105 mm. The machine includes a robot interface (Euromap 67) and is still in production with excellent condition. If you are looking to get high-quality injection molding capabilities, consider the Engel DUO 7050/650 pico machine we have for sale. Contact us for more information about this machine.

Overview

brand: Engel
year: 2013
MODEL: DUO 7050/650 pico
production hours: 60244
application type: Injection Moulding
Location: Romania
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel DUO 7050/650 pico

Dimensions

Machine Height: 2700 mm
Machine Length: 8000 mm
Machine Weight: 20000 kg
Machine Width: 2300 mm

Technical Specification

Clamping Force: 6500 kN
Screw Diameter: 105 mm

Additional Information

Maximum injection volume: 4160 cm³
Minimum mold height: 450 mm
Maximum mold height: 950 mm
Platen opening stroke: 1400 mm
Platen dimensions (W × L): 1510 × 1440 mm
Tie-bar distance: 1100 × 960 mm
Motor power: 161 kW
Heater power: 73.9 kW
Number of electrical connection pins: 32
Injection nozzle radius (at tip): R35
Centering ring diameter: 200 mm
Number of cores: 0
Number of heating zones: 0
Year of manufacture: 2013
Operating hours: approx. 60,244 h
Condition: Excellent
Status: In production

Additional equipment

Equipped with robot: Yes
Robot interface: Euromap 67

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
